Features:

2A 20A High Current Remote Control Electronic Switch 3-30V Aerial Model Plant Protection RC Drone Water Pump PWM Signal Control.
Electronic switches are widely used in various control situations for starting and running, such as water pump spraying, motor start and stop, igniter, projector, lamp control, etc.
Users can also modify the external relay to adapt to the high voltage and high current working range. (Note: Low voltage version users can also add a BEC independent power supply, such as directly plugging in the receiver for power, which is equivalent to sharing power with the receiver, and the receiver is powered by the electrical regulator or BEC).
When the load power of the electronic switch is high, it is important to measure whether the BEC load capacity is sufficient to avoid insufficient power supply leading to receiver servo flight control.

Specifications：

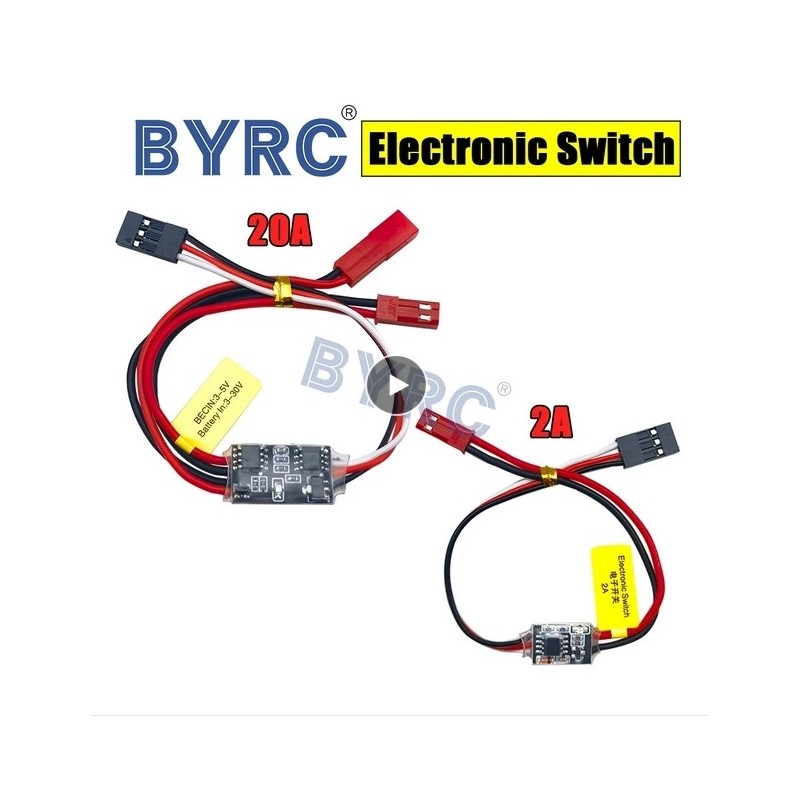

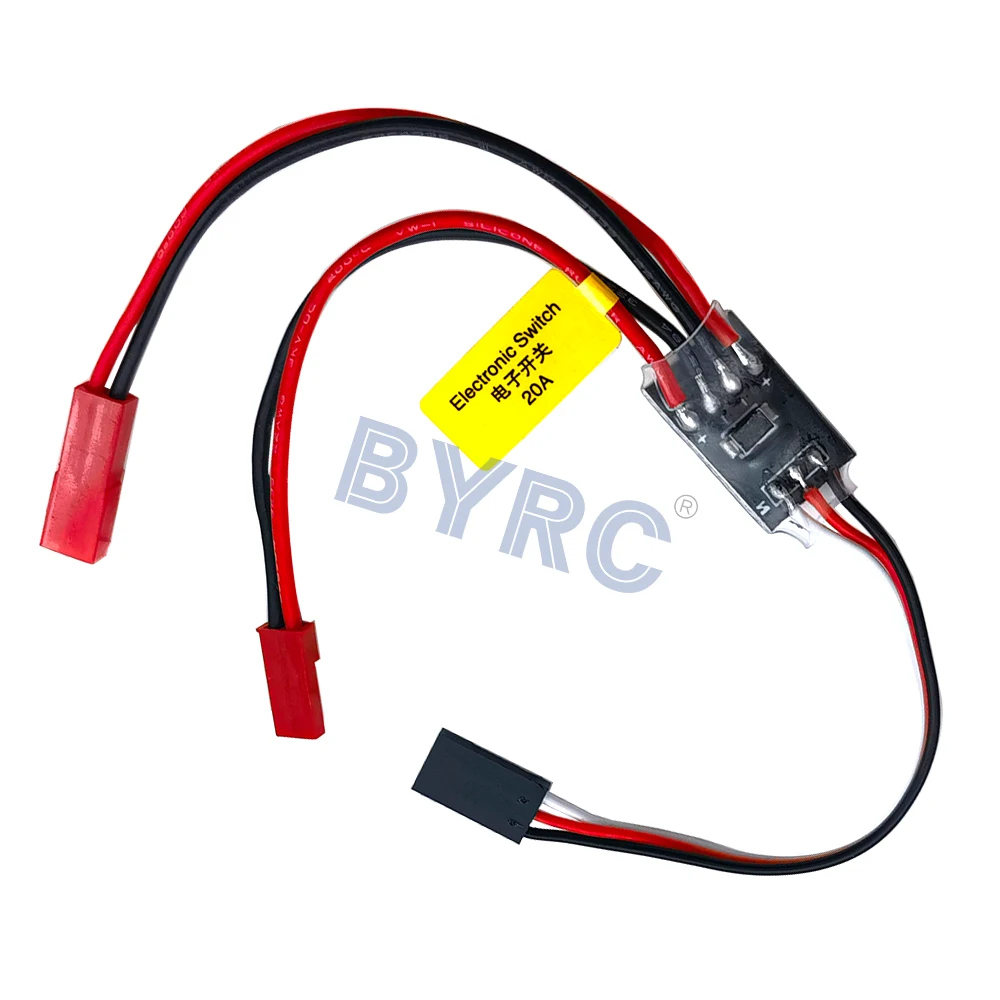

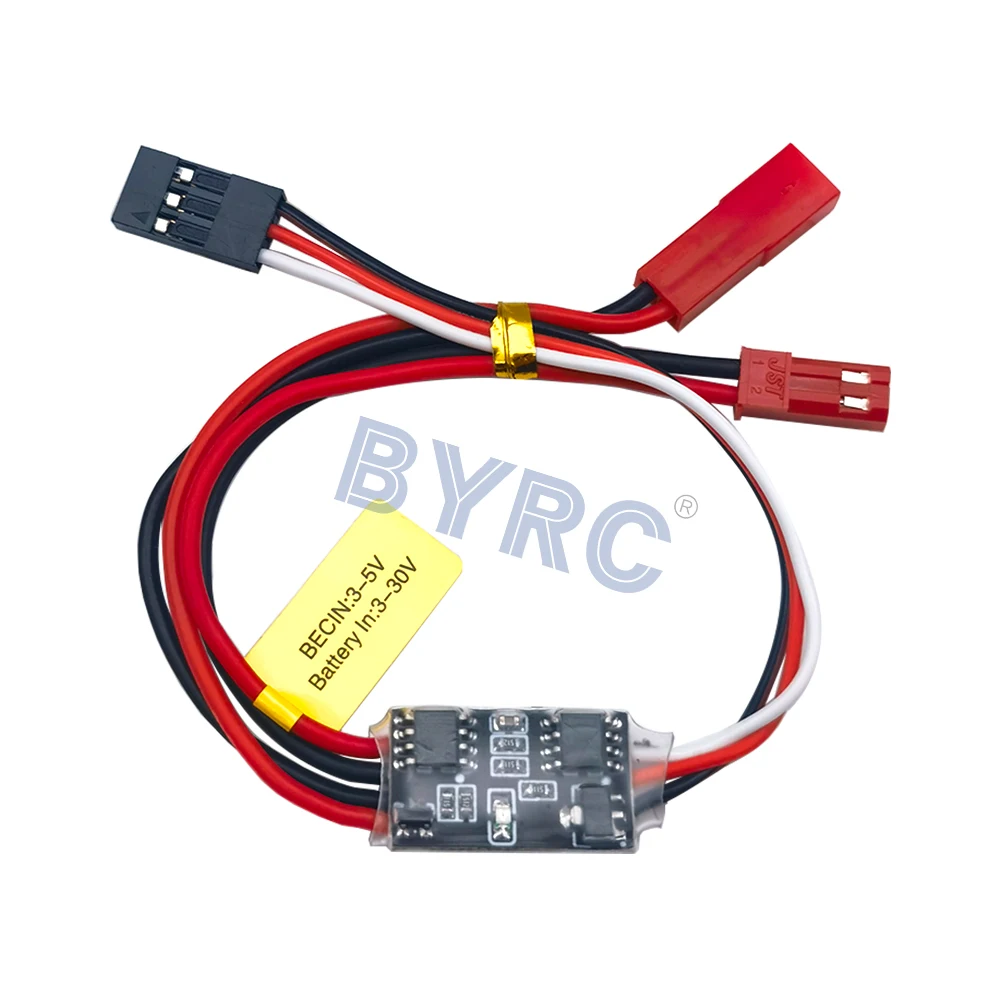

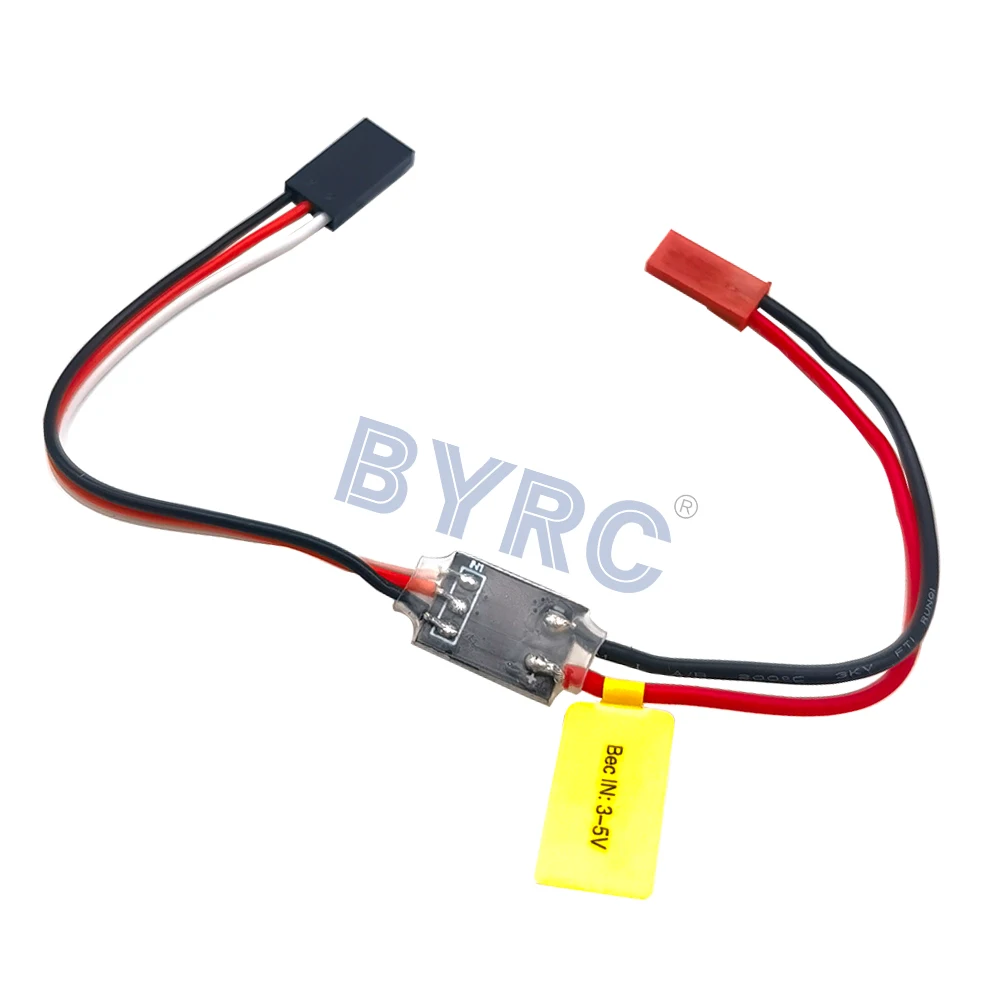

Product Name: 2A/20A Electronic Switch

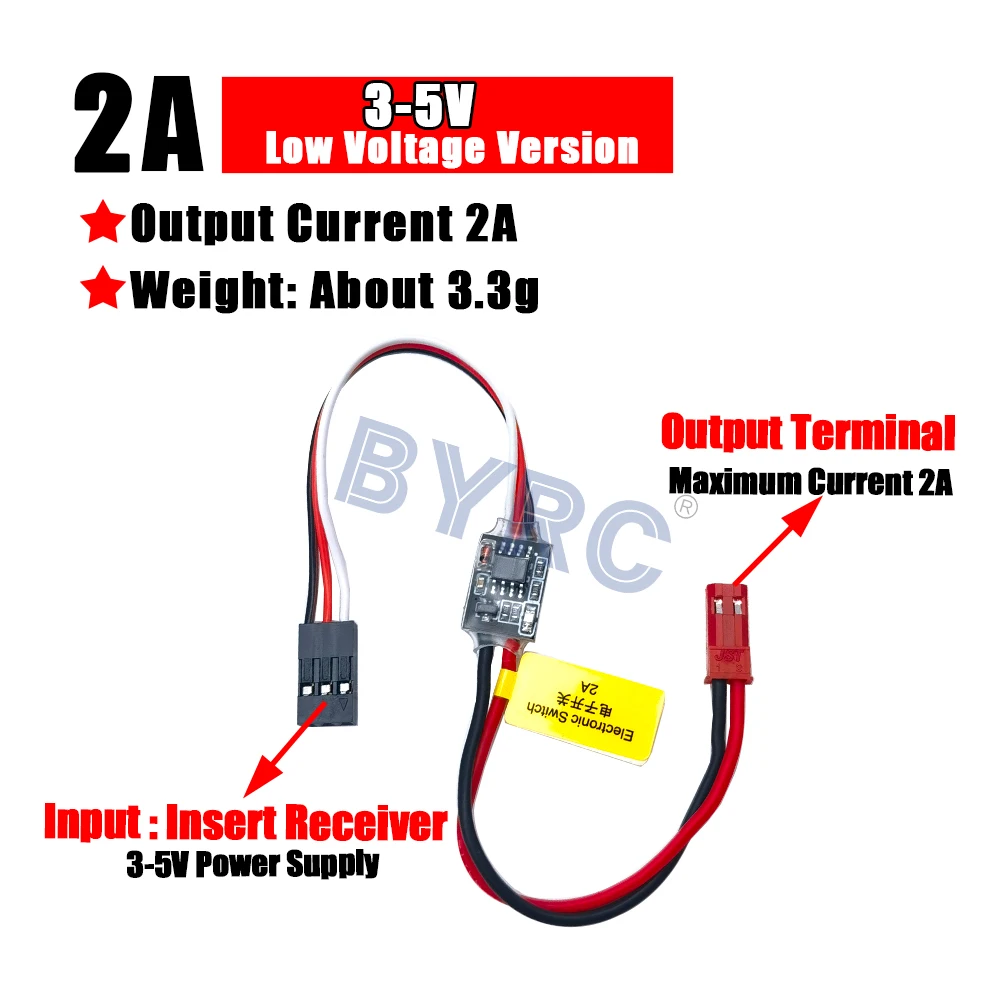

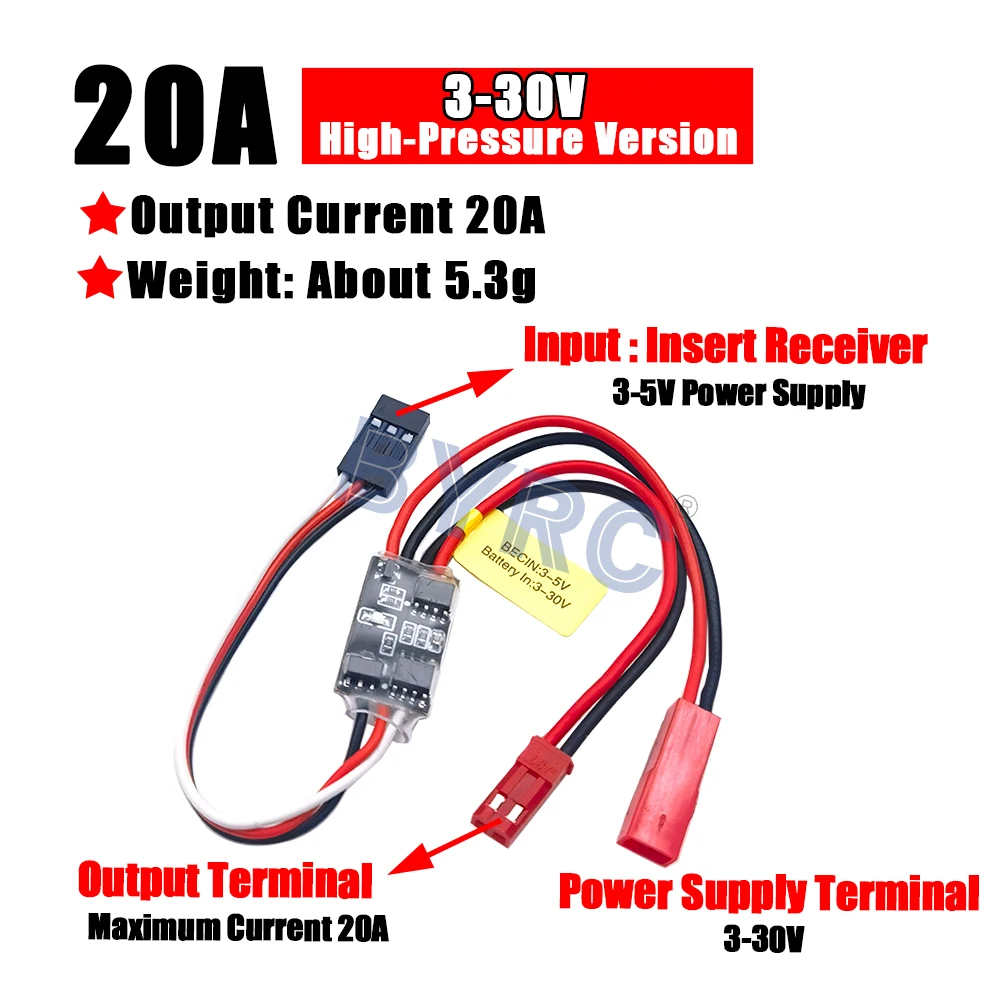

Working voltage: 3-5 V (low-voltage version); 3-30V (high-voltage version)
Output current: 2A (low-voltage version); 20A (High voltage version)
Weight: approximately 3.3g (low pressure version); 5.3g (High voltage version)

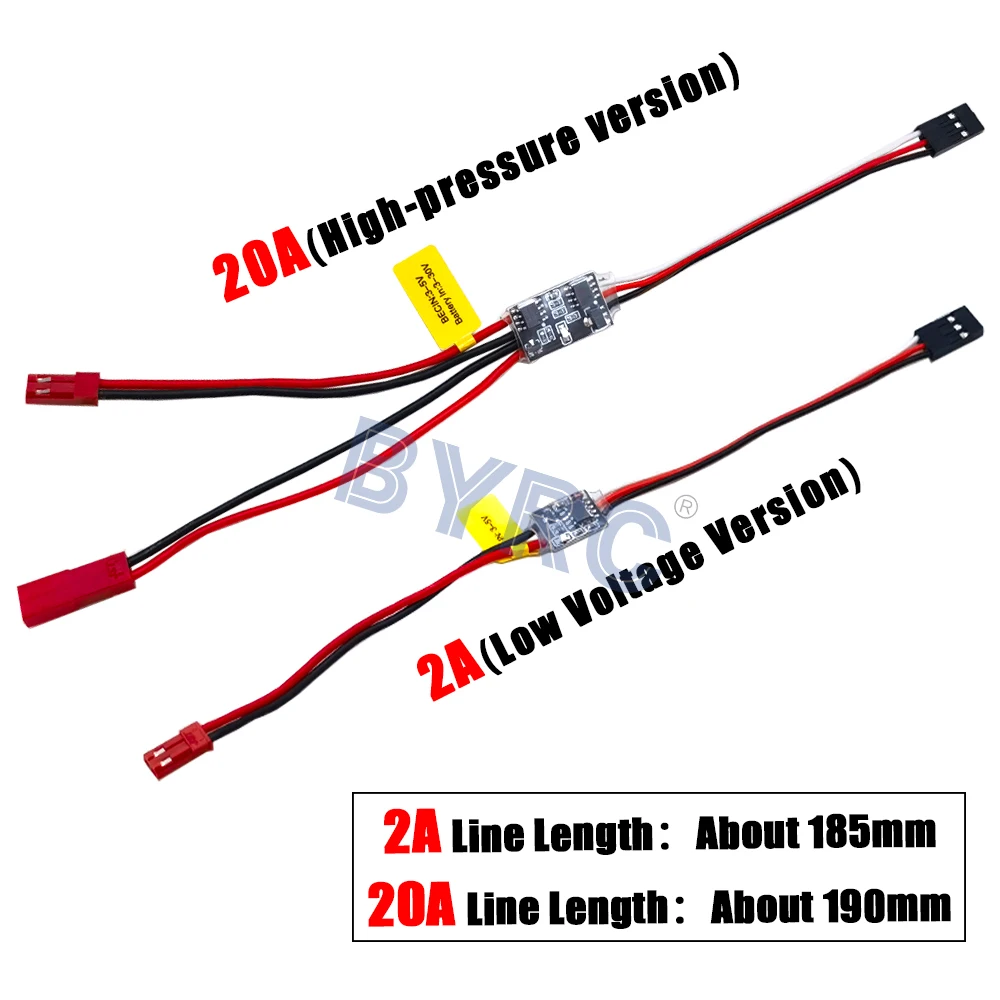

Line length: approximately 185mm (low-voltage version); 190mm (high-pressure version)
Remarks:

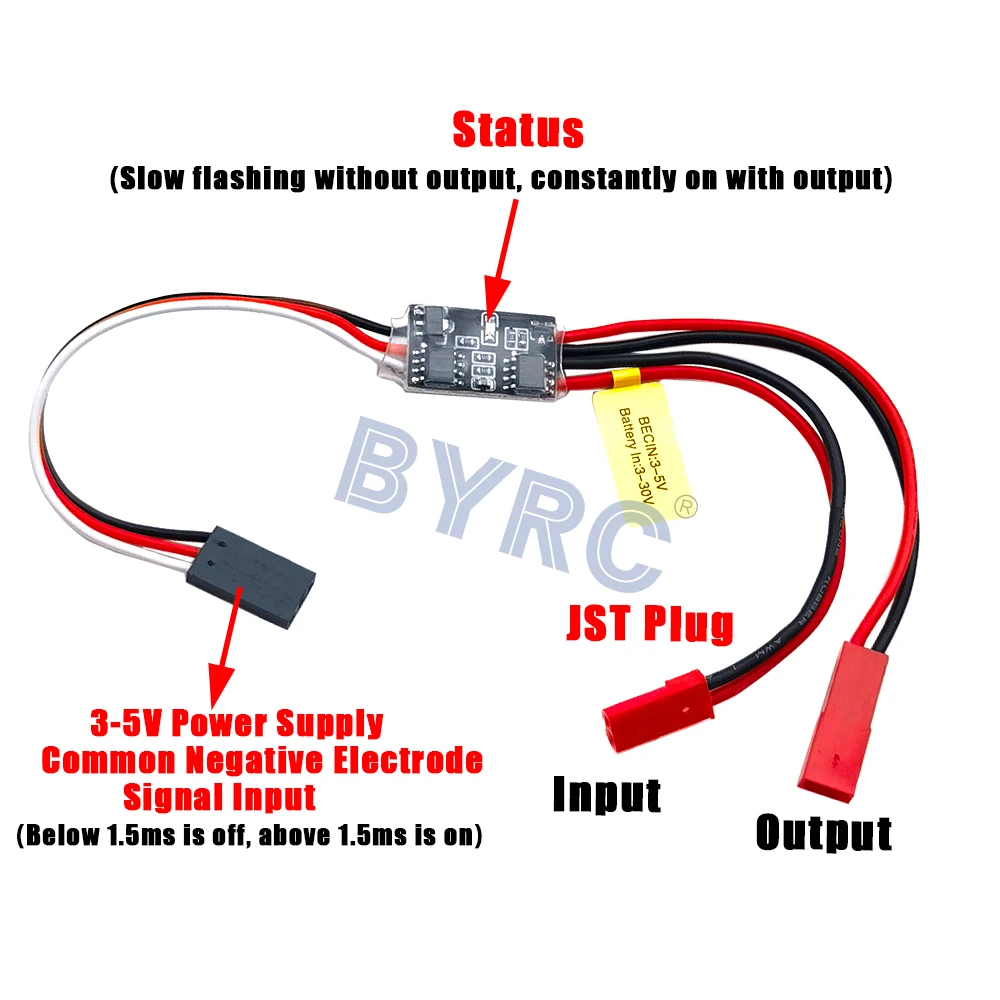

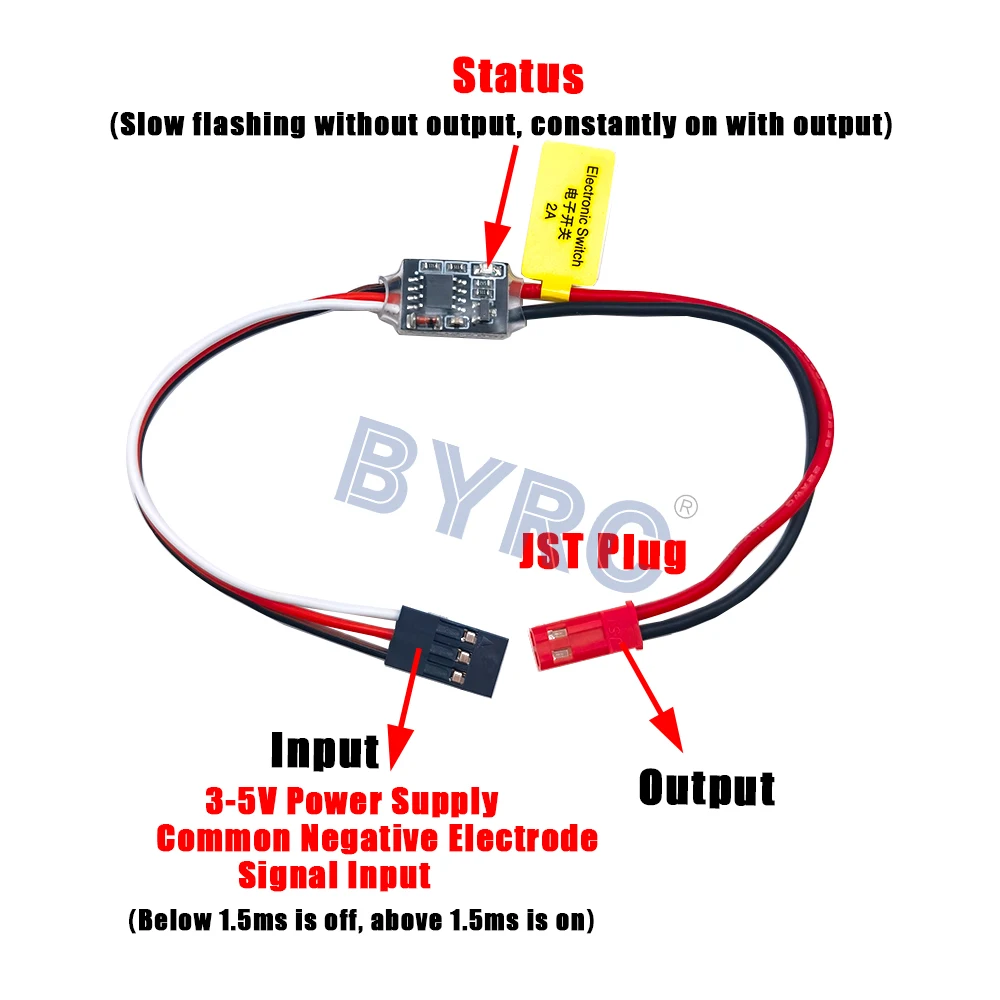

1. Switch positive pole! Low 1.5ms indicates off, high 1.5ms indicates on
2. There is a work indicator light! LED slow flashing indicates no output, while LED constantly on indicates output!
3. The switch can be controlled through a 2-segment switch on the remote control!

Note:

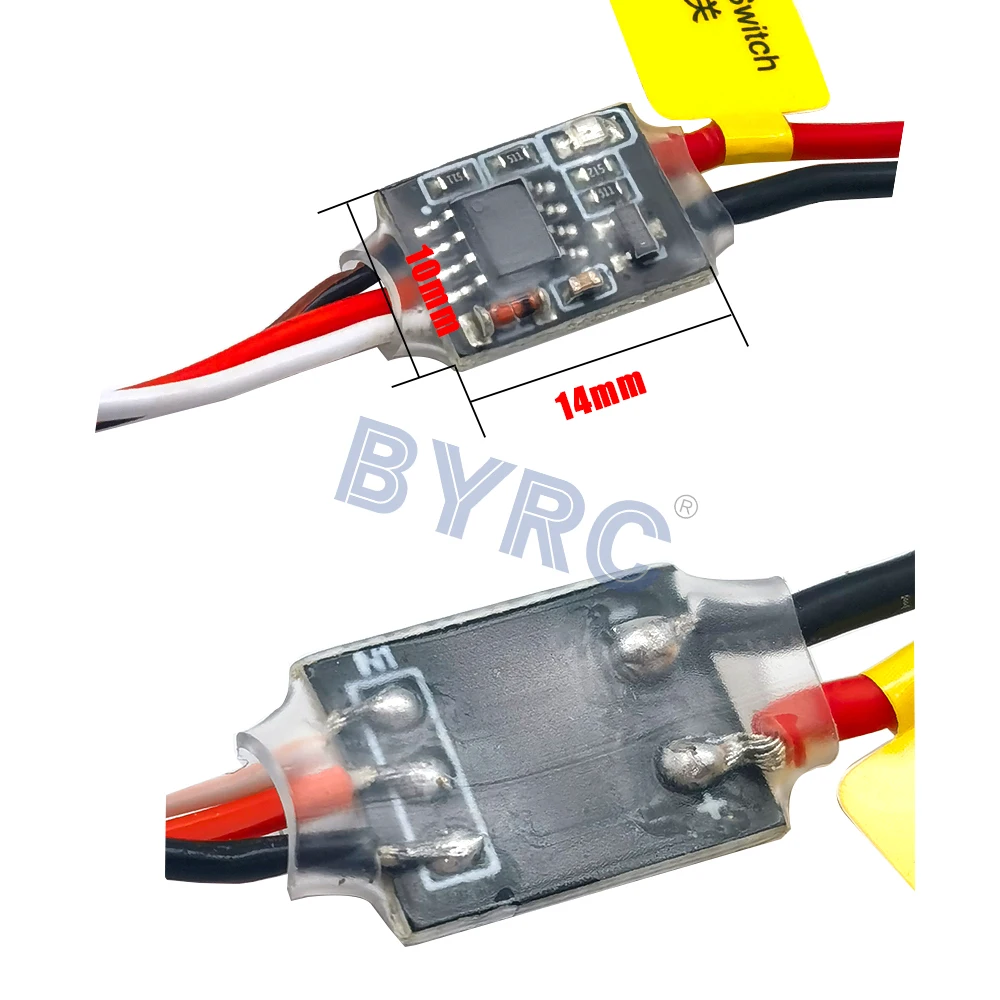

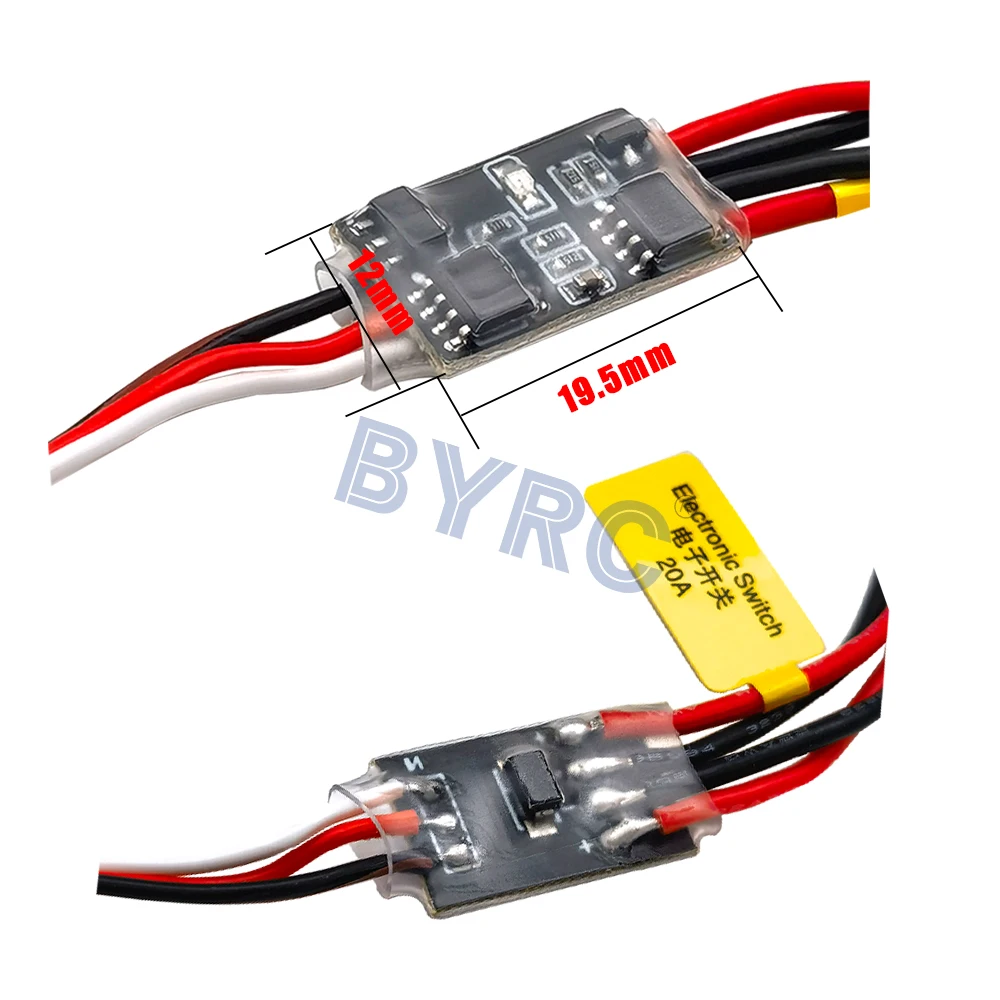

All dimensions are measured manually and may have some errors.

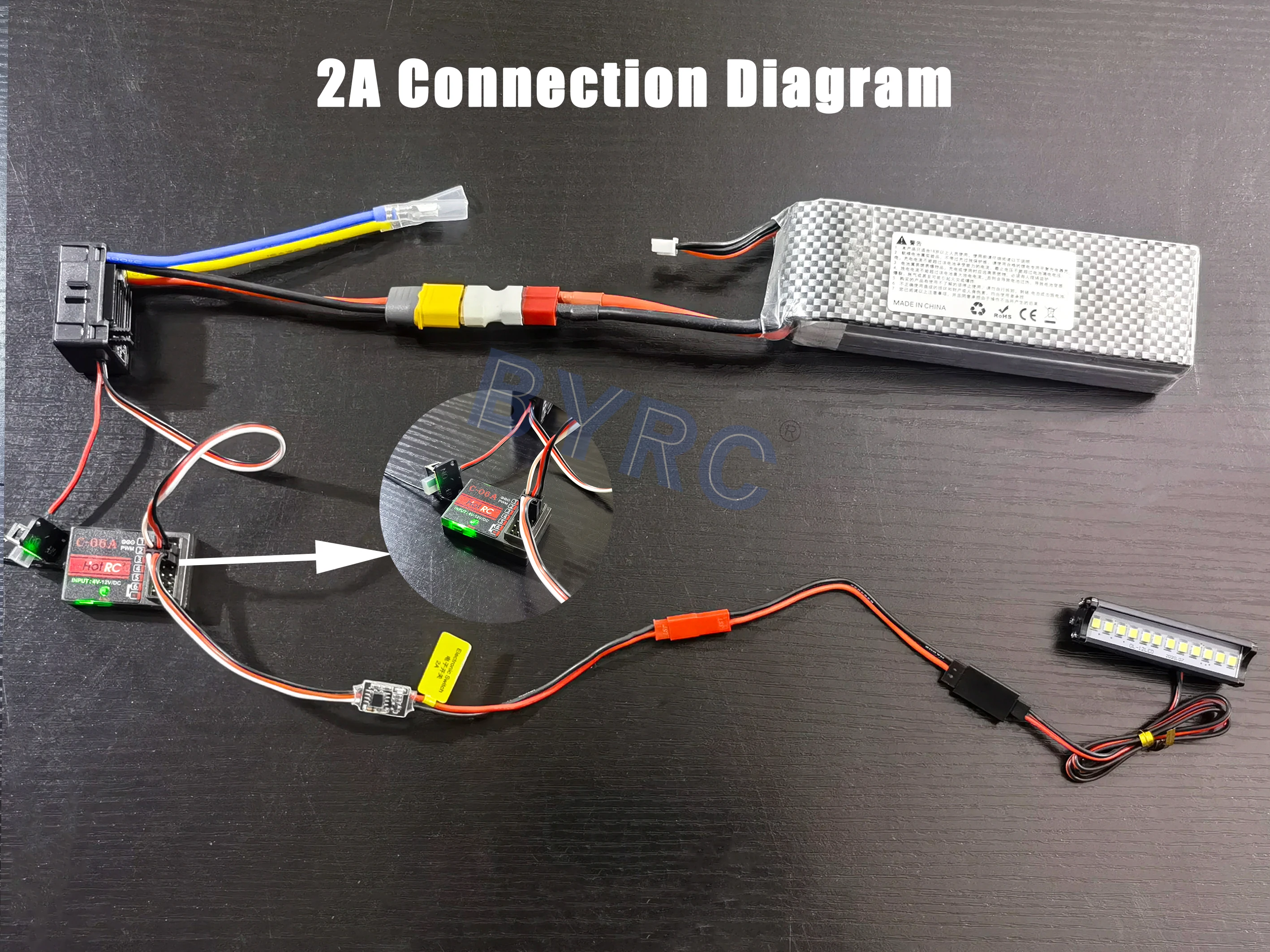

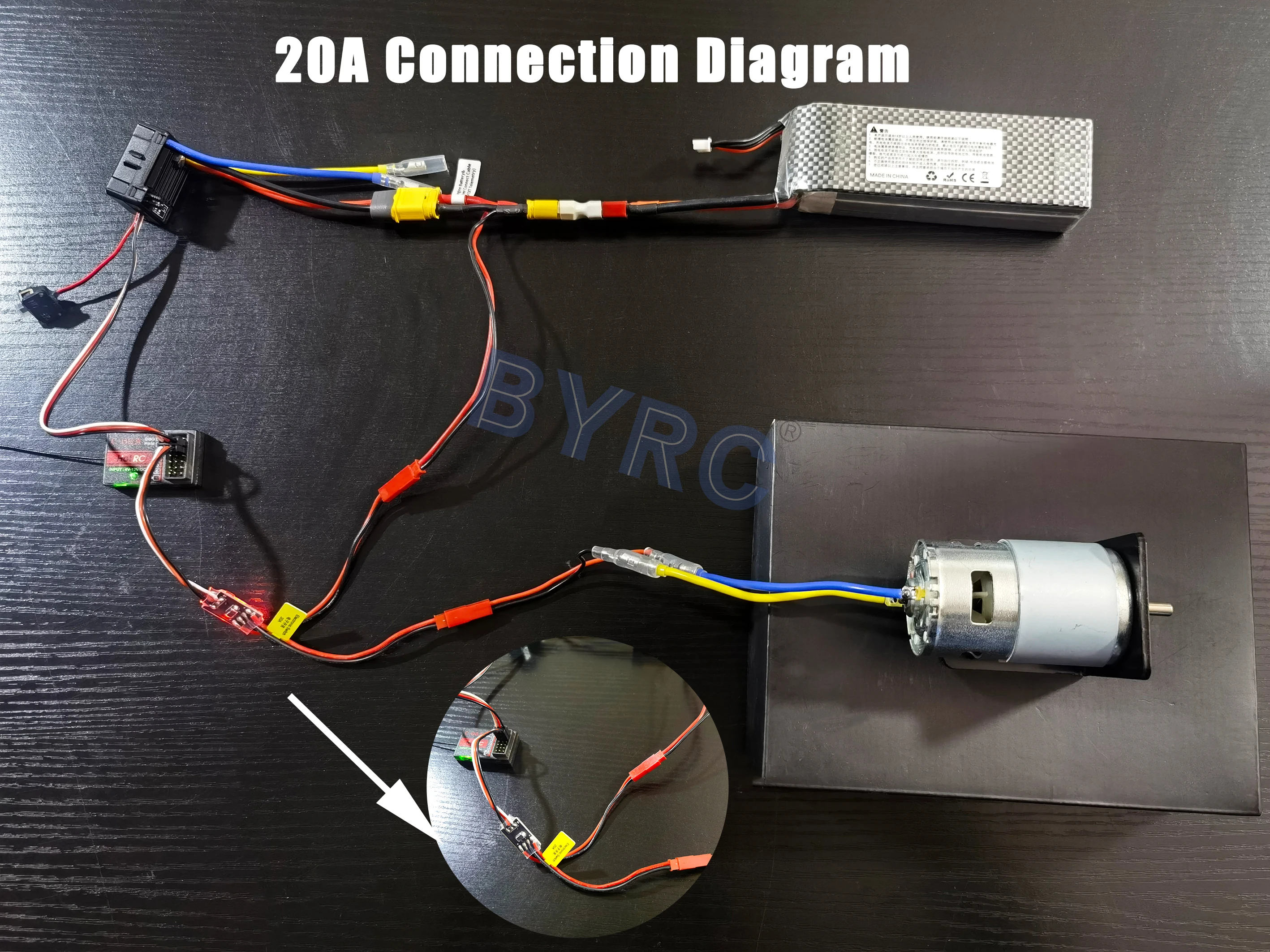

The product only includes switches and does not include other products in the connection diagram

Package Included:

1 *  Electronic switch
