1S Type-C To 4.2V 4.35V Step-down Buck LiPo Polymer Li-Ion Charger for 3.7V 3.8V 18650 Lithium Battery

1S Type-C To 4.2V 4.35V Step-down Buck LiPo Polymer Li-Ion Charger for 3.7V 3.8V 18650 Lithium Battery

Περισσότερες λεπτομέρειες

Διαθέσιμο

5,00 € με Φ.Π.Α

Άλλες πληροφορίες

Product Name: 1S Type-C To 4.2V 4.35V Step-down Buck LiPo Polymer Li-Ion Charger for 3.7V 3.8V 18650 Lithium Battery
Packing list:
1 PCS 1A DC 5V to 4.2V/4.35V Li-ion Li-Po Lithium Battery Charger


Description:

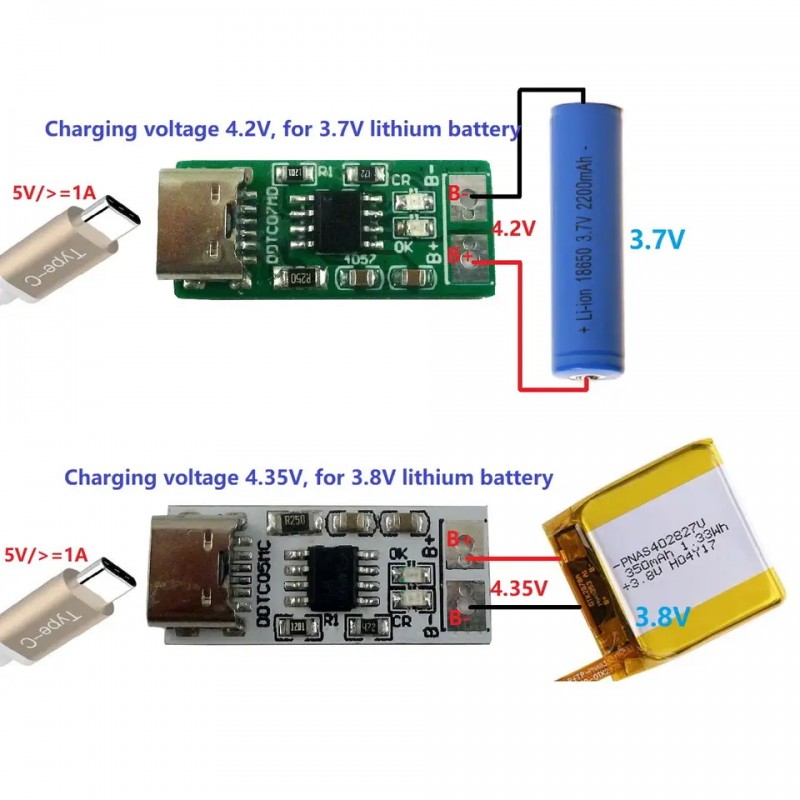

Type-C Charger for Lithium Ion cell phone battery

Power supply: DC 5V/>=1A

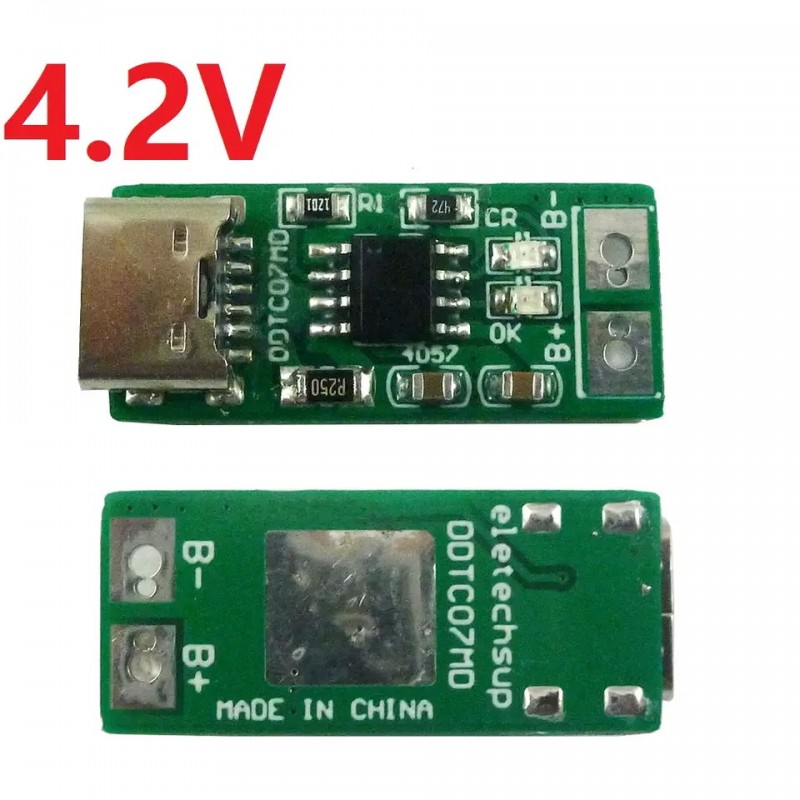

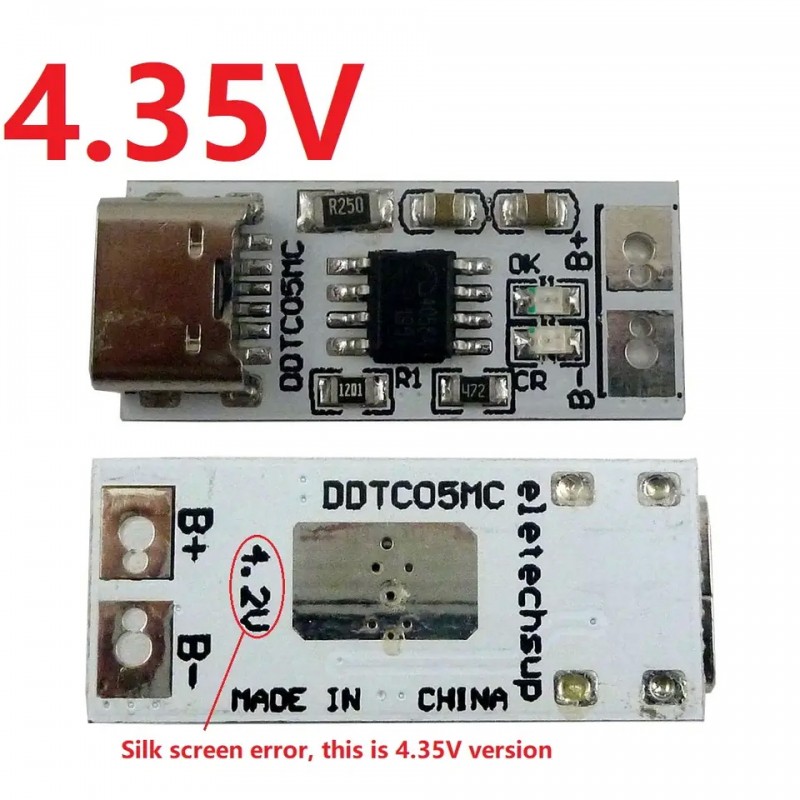

Charging voltage: 4.2V/4.35V
Protection of battery cell reverse connection
Charging current :1A
Complete linear Charger in SOP8 Package for single Cell Lithium-Ion Batteries.
Constant-Current/Constant-Voltage operation with thermal regulation to maximize Rate Without risk of overheating
Preset 4.2V (4.34V) charge voltage with ±1% accuracy
Automatic Recharge
Two Status Indication for Charge status, no battery and battery failure indicators
C/10 charge termination
55μA supply current in shutdown
2.9V trickle current charge threshold
Soft-Start limits inrush current

Led indicator : ''CR'' LED is charge status indicator
''OK'' LED is fully charged OR Constant voltage mode;

Operating Ambient Temperature-40℃ to +85℃

Size : 26mm x 12mm x 4.5mm
Weight : 1.5g

If you need a chip brochure please contact me








The charging current can be changed by changing the value of resistor R1
0805 1% SMD resistor is recommended


Specifications:
Product Name: 1S Type-C To 4.2V 4.35V Step-down Buck LiPo Polymer Li-Ion Charger
Sub Category: Integrated Circuits
Input Voltage: DC 5V
Charging Voltage: 4.2V/4.35V
Charging Current: 1A
Protection: Reverse connection protection
Size: 26mm x 12mm x 4.5mm
Weight: 1.5g

Features:
|4.6 2v Cammed|Overlander Rc 3s Lipo Charger|Charger For Lithium Ion Battery|

**Efficient Charging Solution for Lithium Ion Batteries**
The 1S Type-C To 4.2V 4.35V Step-down Buck LiPo Polymer Li-Ion Charger is a compact and versatile device designed to cater to the charging needs of various lithium-ion batteries, including 3.7V and 3.8V 18650 Lithium Ion batteries. With a robust Type-C interface, this charger ensures compatibility with a wide range of devices, making it an indispensable tool for users of electronic gadgets and devices that rely on lithium-ion batteries.

**Advanced Protection and Precision Charging**
This charger is not just about power; it's about safety and precision. It features reverse connection protection, safeguarding your devices from potential damage during charging. The charger's linear design ensures a constant-current/constant-voltage operation, which is crucial for maximizing battery life without the risk of overheating. With a preset 4.2V (4.34V) charge voltage, the charger maintains accuracy within ±1%, guaranteeing your battery is charged to its optimal level. Additionally, the charger's automatic recharge and two status indicators provide clear feedback on the charging process, ensuring your device is always ready for use.

**Compact and Lightweight Design**
Despite its robust performance, the charger's compact size and lightweight design make it an ideal companion for travel and outdoor activities. At just 1.5g, it's a breeze to carry, while its dimensions of 26mm x 12mm x 4.5mm ensure it fits seamlessly into any gadget bag or pocket. Whether you're an overlander looking for a reliable RC 3S lipo charger or a user in need of a charger for lithium ion batteries, this device is the perfect blend of functionality and portability.
