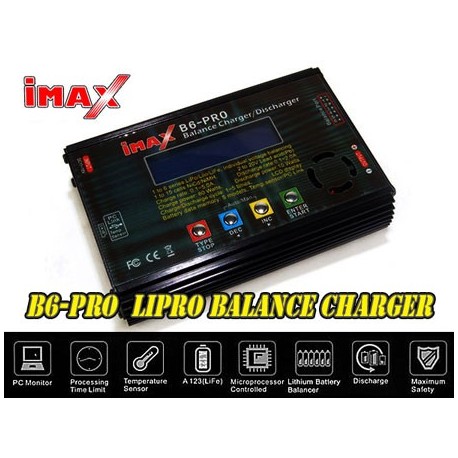

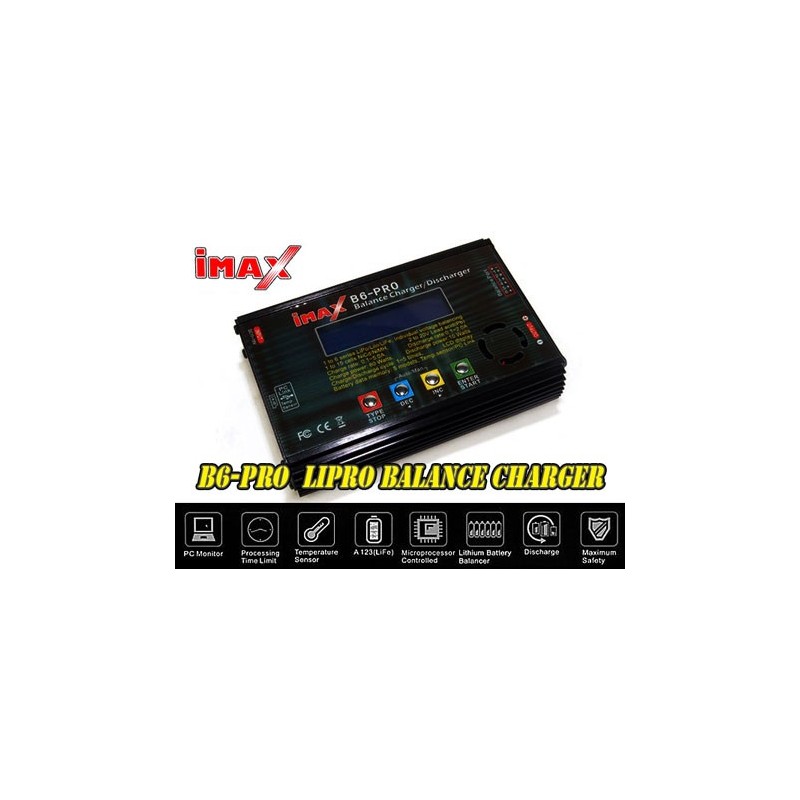

IMAX B6-PRO features the so-called AUTO function that set the feeding current during the process of charging or discharging. Especially for Lithium batteries, it can prevent the overcharging which may lead to an explosion due to the user's fault. It can disconnect the circuit automatically and alarm once detecting any malfunction. All the programs of this product were controlled through two way linkage and communication, to achieve the maximum safety and minimum the trouble. All the settings can be configured by users!

Internal independent lithium battery balancer
IMAX B6 PRO employs an individual-call-voltage balancer. It isn't necessary to connect an external balancer fir balance charging.

Balancing individual cells battery discharging
During the process of discharging, IMAX B6 PRO can monitor and balance each cell of the battery individually. Error message will be indicated and the process will be ended automatically if the voltage of any single one cell is abnormal.

Adaptable to various type of lithium battery
IMAX B6 PRO is adaptable to various types of Lithium batteries, such as Li-ion, LiPo and the new LiFe series of batteries.

Fast and storage mode of lithium battery
Purposes to charge Lithium battery varies, 'fast' charge reduce the duration of charging, whereas 'store' state can control the final voltage of your battery, so as to store for a long time and protect useful time of the battery.

 PC based analysis using USB Communication
IMAX B6 PRO offer PC based program can analysis the characteristic of the battery via USB port. it shows a graph of voltage, current, capacity curves. It also shows the individual voltage of each cell in the Lithium battery pack.
PC-LINK USB adaptor can be purchased separately

 Automatic charging current limit
You can set up upper limit of the charging current when charging your NiCd or NiMH battery; it is useful for the NiMH battery of low impedance capacity in the 'AUTO' charging mode.

Processing time limit
You can also limit the maximum process time to avoid any possible defect.

Data store/load
The maximum ten batteries' data can be stored for users' convenience. You can keep the data pertaining to program setting of the battery of continuous charging or discharging. Users can call out these data at any time without any special program setting.

Cyclic charging/discharging
1 to 5 cyclic and continuous process of charge > discharge or discharge > charge is operable for battery refreshing and balancing to stimulate the battery's activity.

IMAX B6-PRO Charger DC Clamp Cable Igniter Plug Cable JST Plug Cable Aligator clips Plug Cable Futaba Plug Cable Extension Cable English Manual

.
