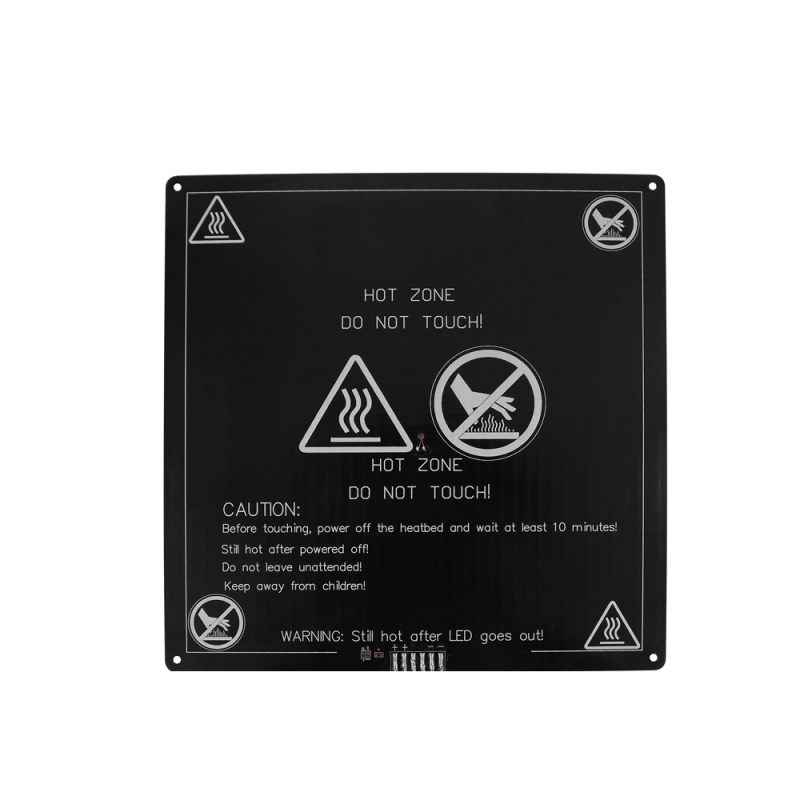

Anet Latest Black MK3 Hotbed Aluminum Heated Bed Upgraded 12v

Μεγαλύτερη προβολή

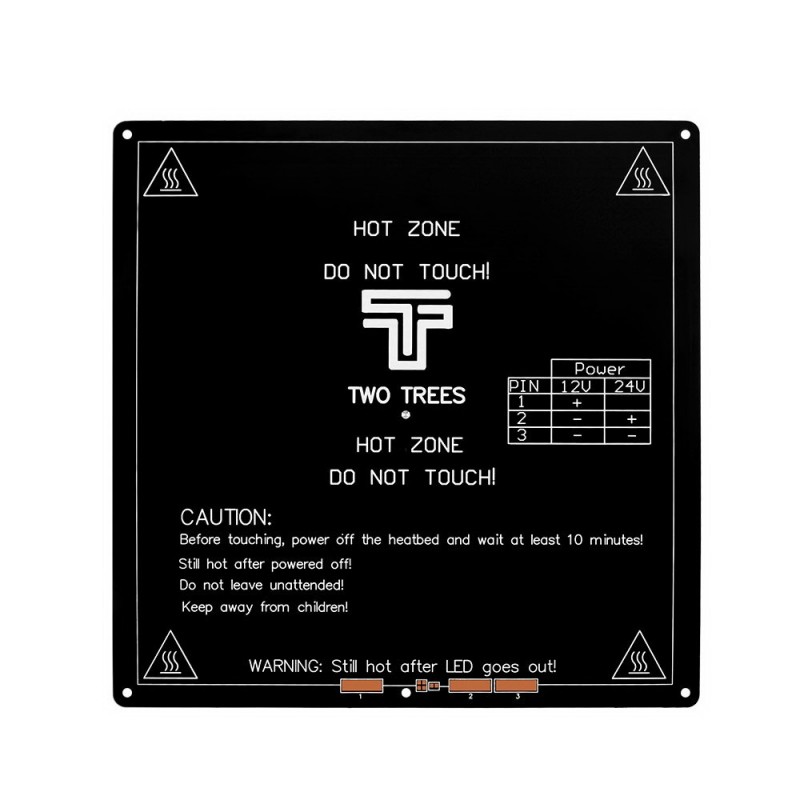

MK3 Mk2 Heated Bed 12V 24V Parts For Reprap Mendel HotBed 3D Printers Part 220*220mm Aluminium Plate 3mm

Αναφορά

Περισσότερες λεπτομέρειες

Διαθέσιμο

Εκτύπωση

Άλλες πληροφορίες

1. Ordinary MK3 only is about 120W, and only about 80 degrees temperature. This thermal bed

power boost to 200W. It can be easily up to temperatures above 110 degrees;

2. The Common MK3 size is 214 * 214mm, and the 4 holes very close to the four corners of

positioning. Besides, the heatbed is easily to break during transportation. And it is difficult to

handle. This improved version, in four positioning holes remain unchanged, and the size is

220 * 220. the positioning hole from the four corners of the increased distance, and made a fillet.

So it is not difficult to handle and not easy to break for the angle .

The Innovative Heatbed MK3 have features similar to MK3 and you can also operate this board with 12V or 24V.

Description:

Dimensions 220mm x 220mm

1 layer 35μm (1oz base) copper

Resistance between 1.4 and 1.6 ohm for the 12V

Resistance between 5.0 and 5.4 ohm for the 24V

100 degree Celsius possible for both 12V and 24V

With 15V on the 12V terminals will maintain approx. 115 degree Celsius without regulation

Running 24V on the 12V terminals will heatup the heatbed to 100 degree in only 2 minutes (Your printer controller will regulate the power to the heatbed in order to get your preset temperature.)

180 degree Celsius max. temperature.
