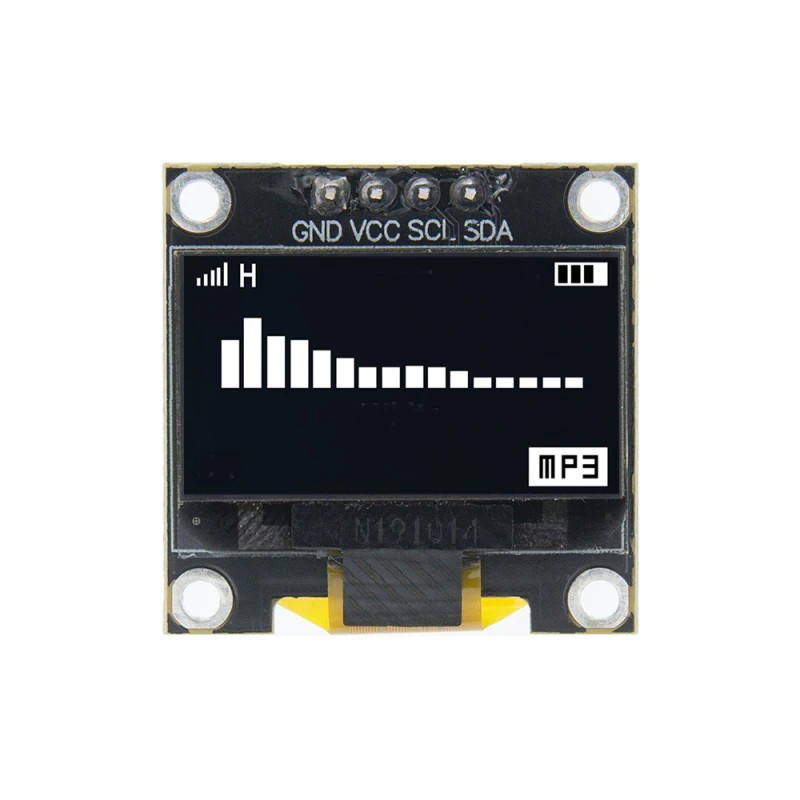

Geekcreit® 0.96 Inch 4Pin White IIC I2C OLED Display Module 12864 LED For Arduino

Μεγαλύτερη προβολή

Προηγούμενο

Επόμενο

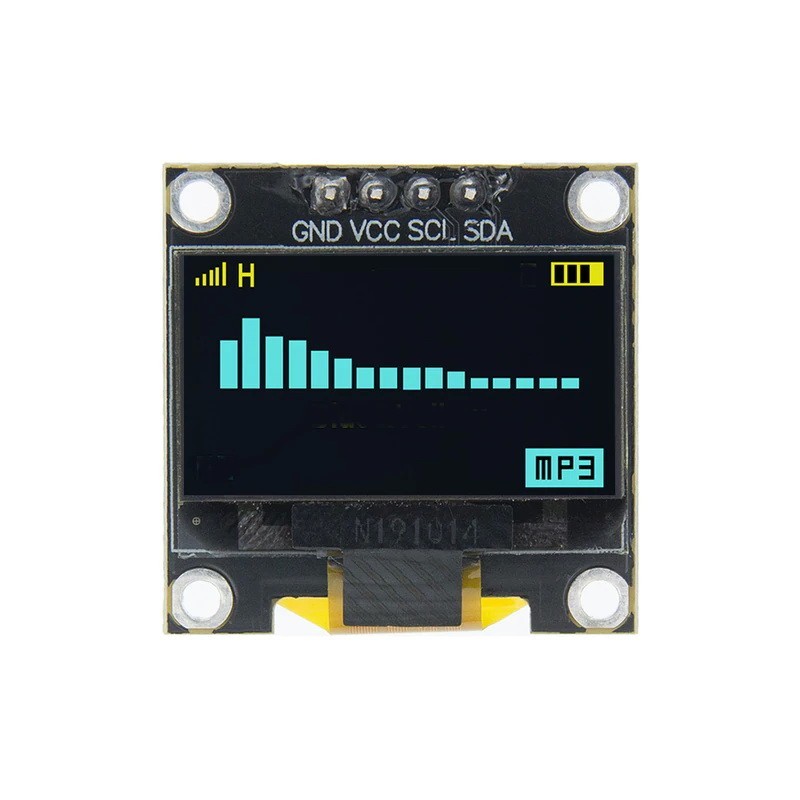

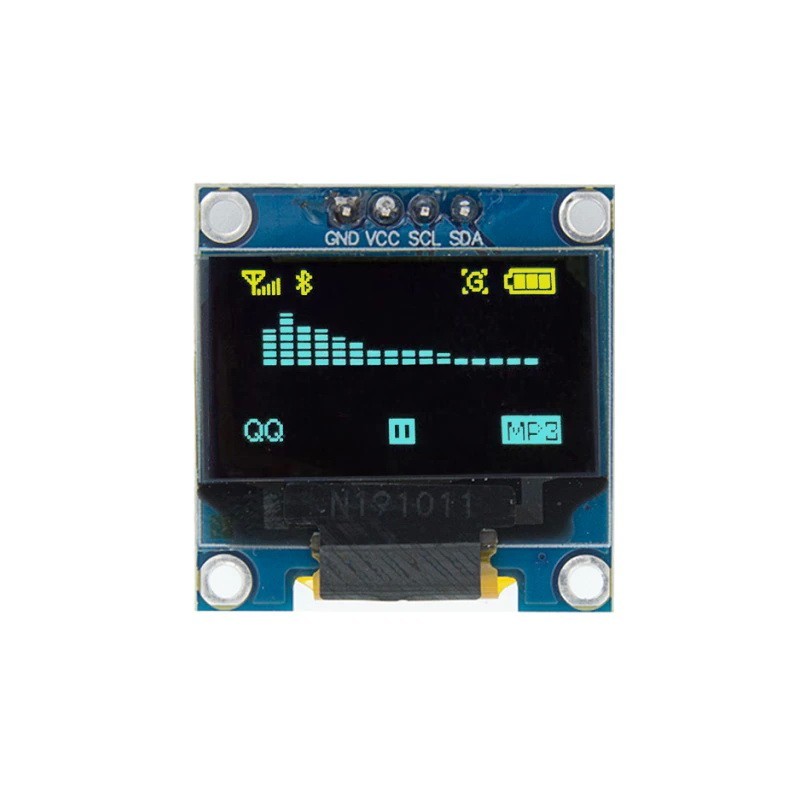

0.96 inch IIC Serial 4pin White/Blue/Yellow Blue/Yellow OLED Display Module 128X64 12864

Αναφορά

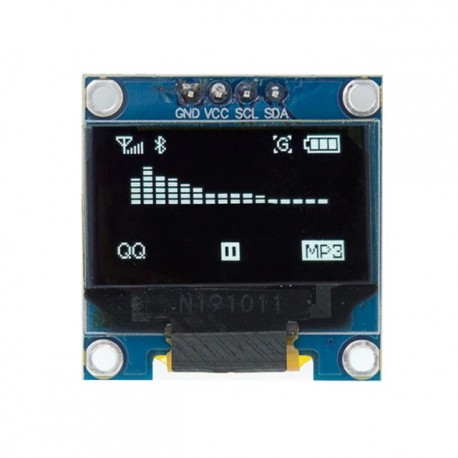

Geekcreit® 0.96 Inch 4Pin White IIC I2C OLED Display Module 12864 LED For Arduino

Περισσότερες λεπτομέρειες

Διαθέσιμο

Εκτύπωση

Άλλες πληροφορίες

128*64 LED display module for Arduino, supports many control chip.

Fully compatible with for Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.

Ultra-low power consumption: full screen lit 0.08W

Super high brightness and contrast are adjustable

With embedded driver/controller

Interface type is IIC

Pin Definition: GND, VCC ,SCL, SDA

Pins: 4 pins

Voltage: 3V ~ 5V DC

Working Temperature: -30 ° ~ 70 °

Character Colors: White

Drive Duty: 1/64 Duty

High resolution: 128 * 64

Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)

Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)

Driver IC: SSD1306

Note: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness

Package Included:

1PC*128x64 Yellow Blue LED display module for Arduino
