60V 16S 35A 18650 Li-ion Lipolymer battery BMS PCB w/ Balance for ebike ebicycle

Αναφορά (SKU): BMS-16S-35A

Περισσότερες λεπτομέρειες

Διαθέσιμο

Εκτύπωση

Άλλες πληροφορίες

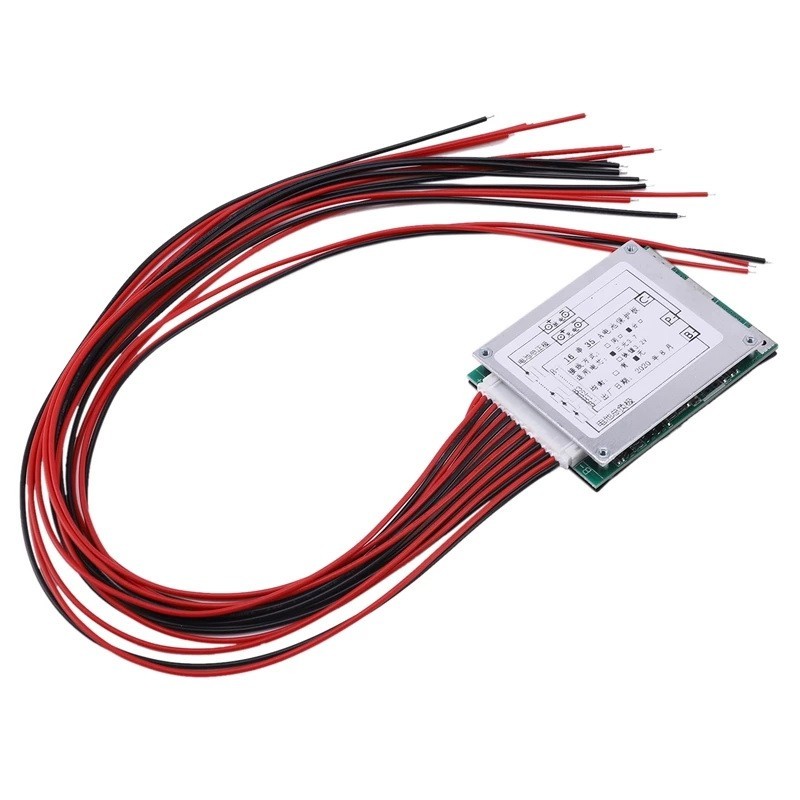

This product is 16 string 57.6V 60V 67.2V 16-Cell lithium battery power protection board. Split-mouth 35A discharge current. with Balance circuit. With heat sink, size: 69 *51.5 * 10mm. with 17-pin Cable, length is 300mm.

Protection board with overcharge protection, over discharge protection, over current protection, short circuit protection.

Electrical parameters: (16 series of lithium-ion battery) Elec-Module58

Detail	Specifications	Tipical	Unit
Discharge	Continuous Discharging Current	35(max)	A
Discharge	Instantaneous Discharge Current	100	A
Charge	Charging Voltage	67.2	V
Charge	Charging Current	8(Max)	A
Overcharge Protect	Over-charge Detect	4.28±0.05	V
	Protect Delay	100	mS
	Over-charge release	4.08±0.05	V
Balance	Detect Voltage	4.2±0.025	V
	Release Voltage	4.2±0.05	V
	Balance Current	60±5	mA
Over-discharge Protect	Over-discharge Detect	2.55±0.08	V
	Over-discharge Detect delay	50	mS
	Release Voltage	3.0±0.1	V
Over-current Protect	Detect Voltage	150	mV
	Detect Delay	15	mS
	Current Detect	120±5	A
	Release Condition	Cut Load
Short-circuit Protect	Protect Condition	Cut Load
	Detect Delay	200	uS
	Release Condition	Cut Load
Temperature Protect	Temperature Protect	/	℃	Elec-Module58
Resistance	Inner	≤15	mΩ
Self-Consumption	Working Current	≤60	uA
Self-Consumption	Sleep Current (when Over-discharge)	≤10	uA
Working Temperature	Range	-30/+80	℃

Package Included:

1x 16S 35A Lithium Battery Protection Board
