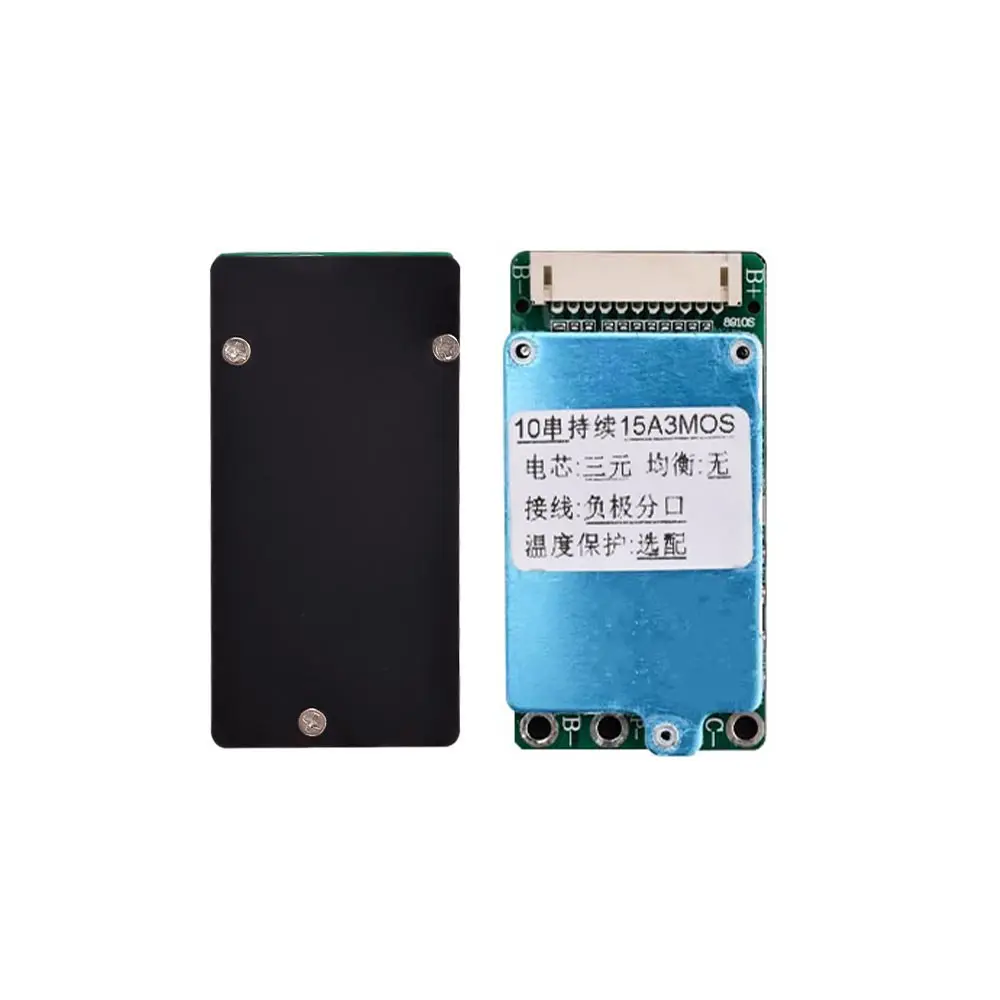

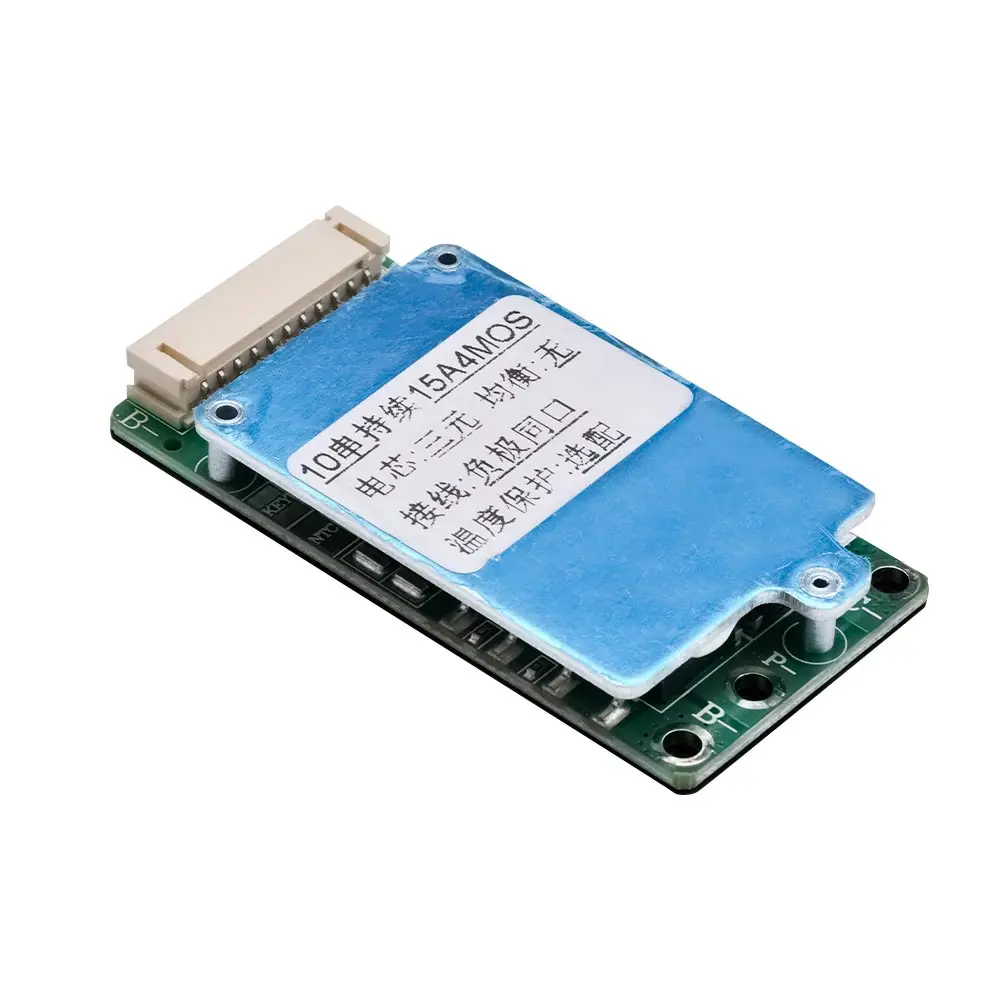

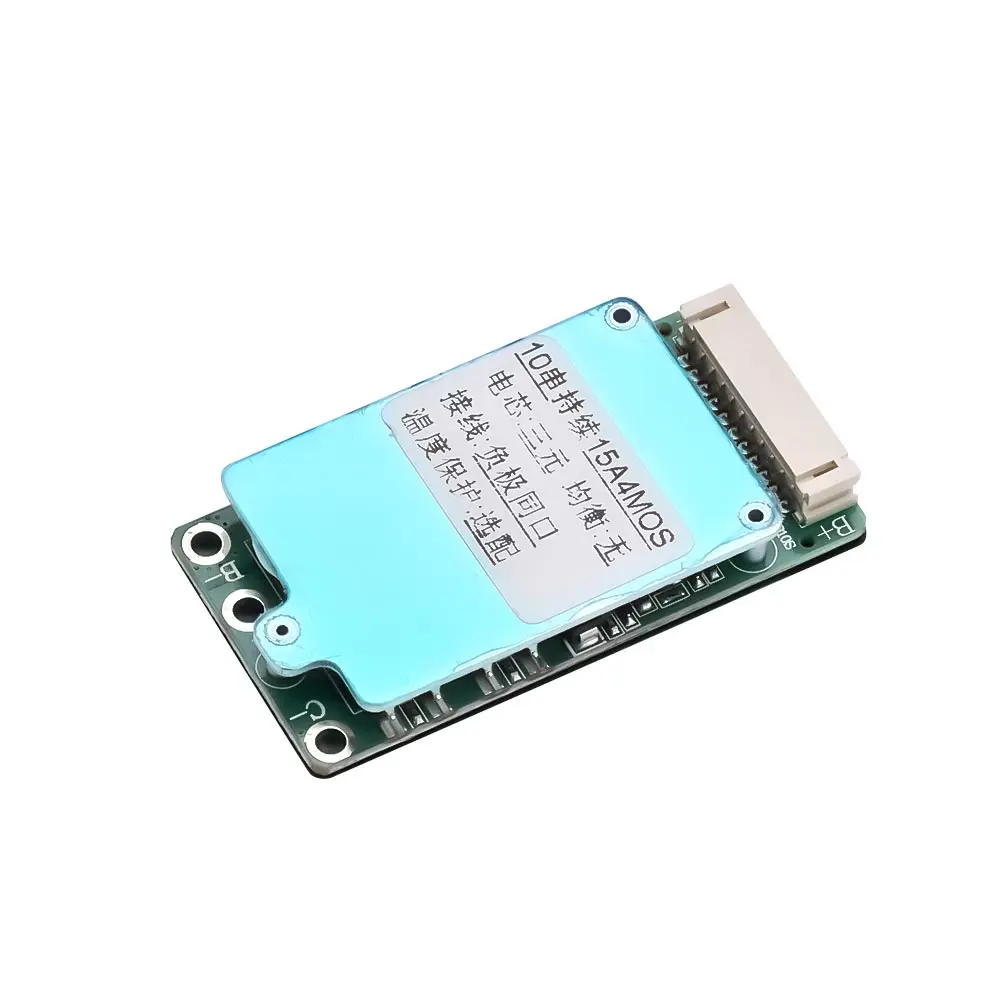

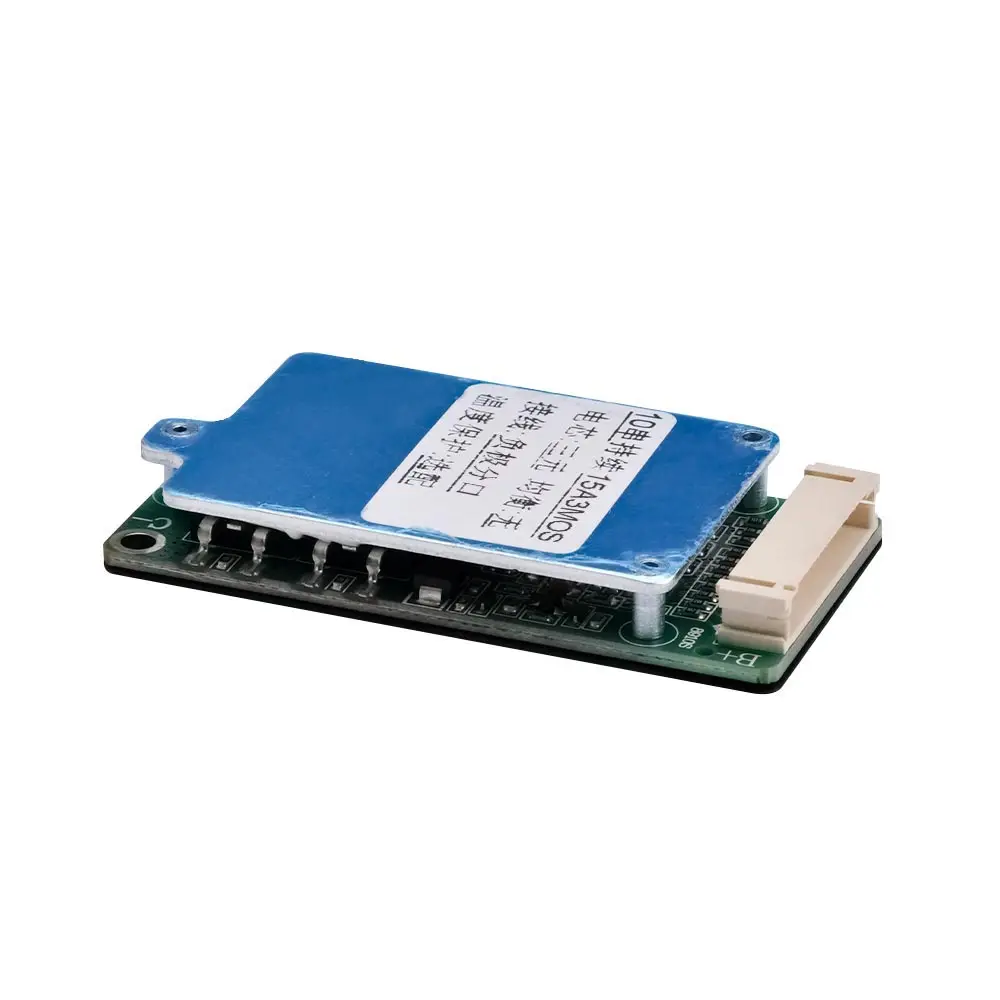

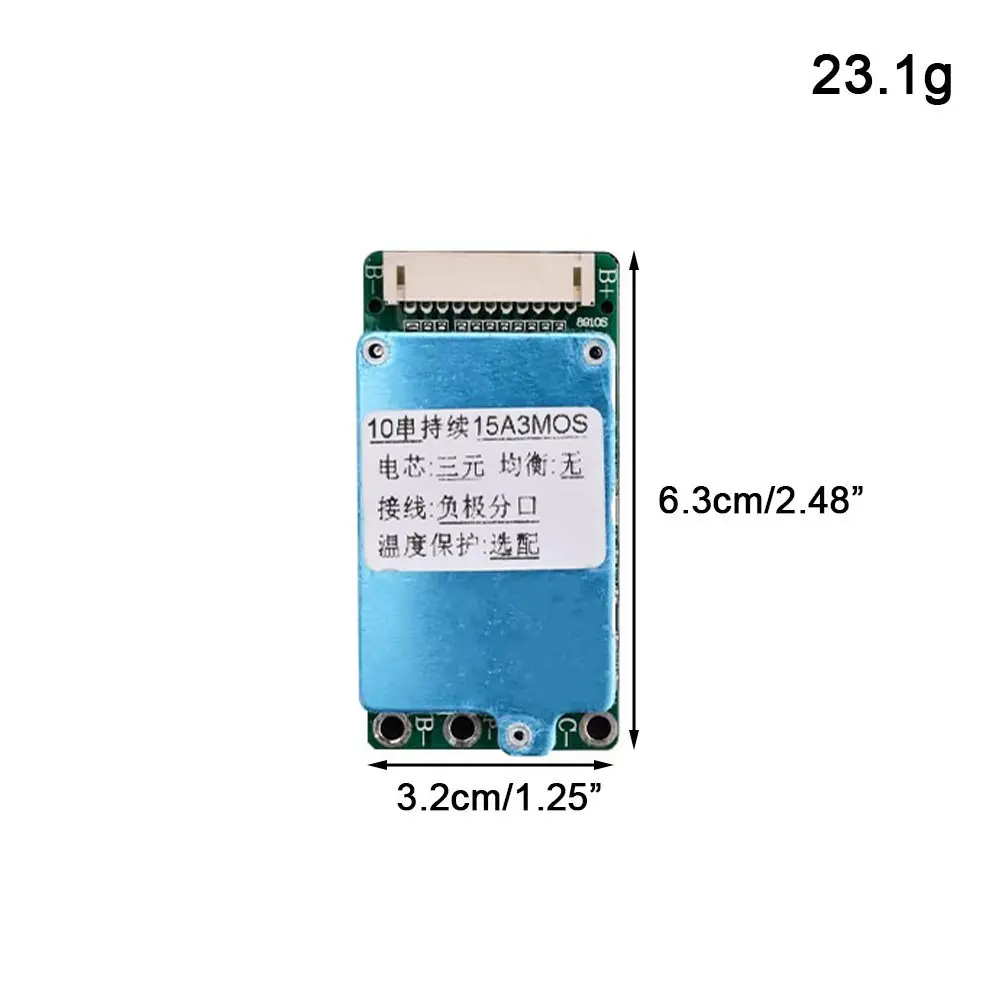

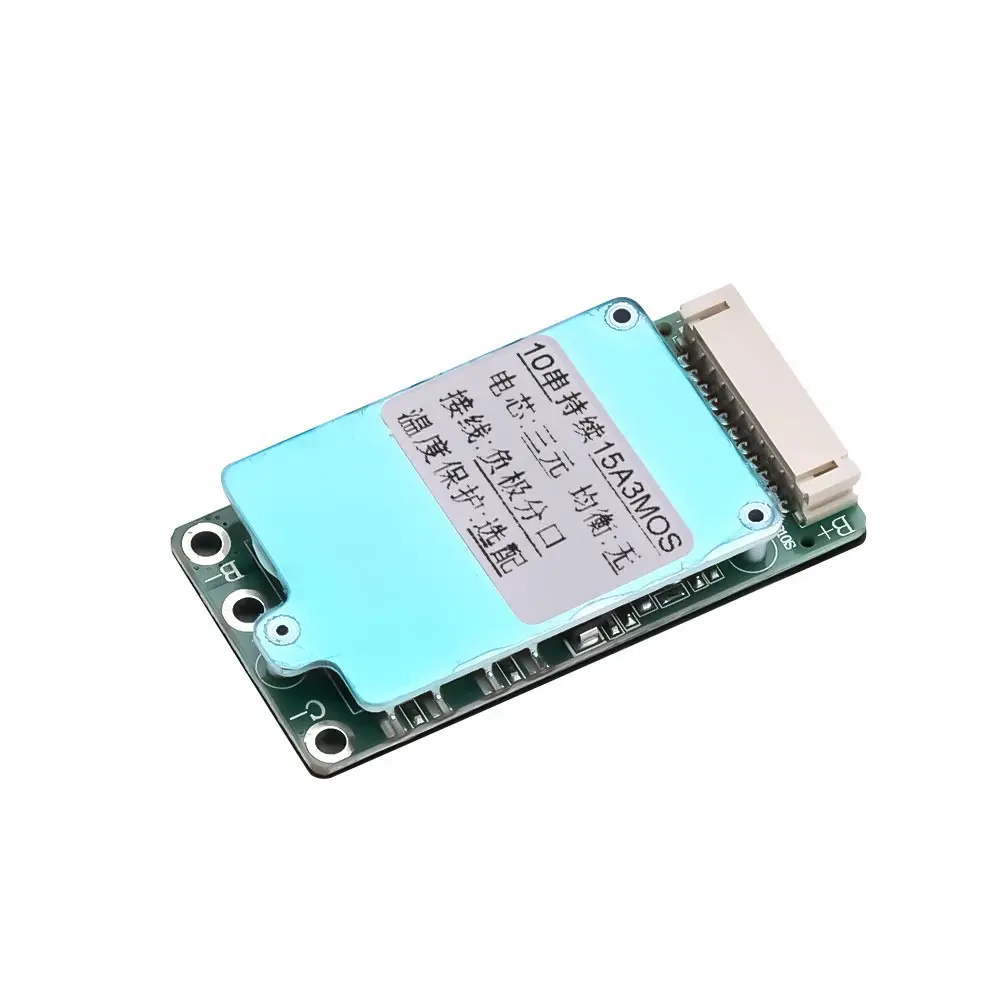

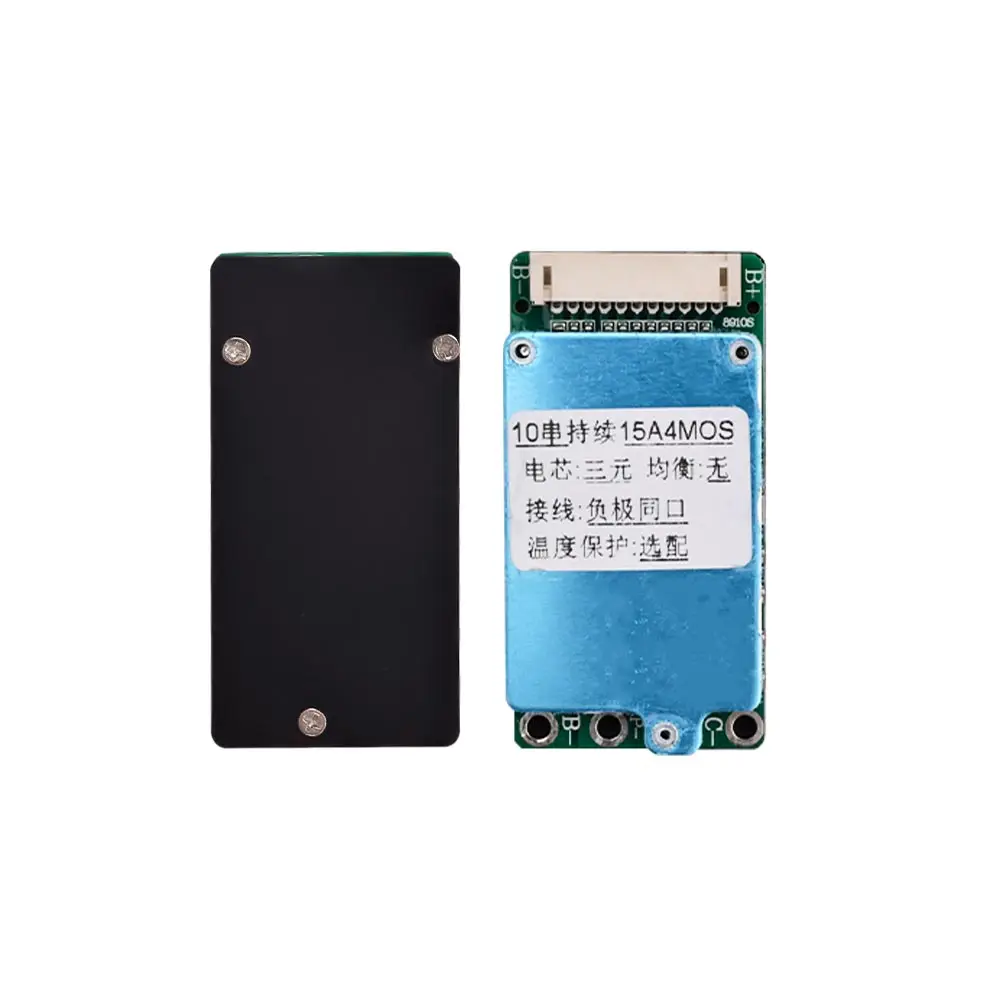

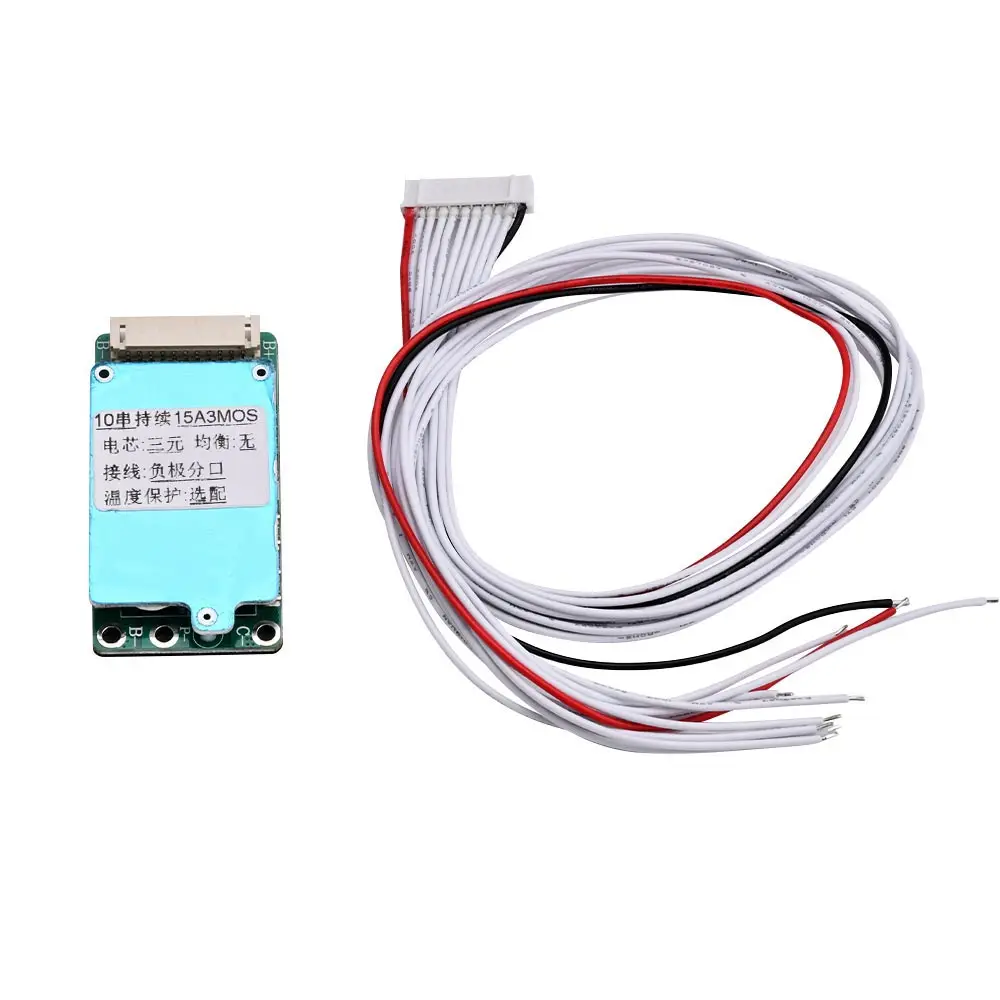

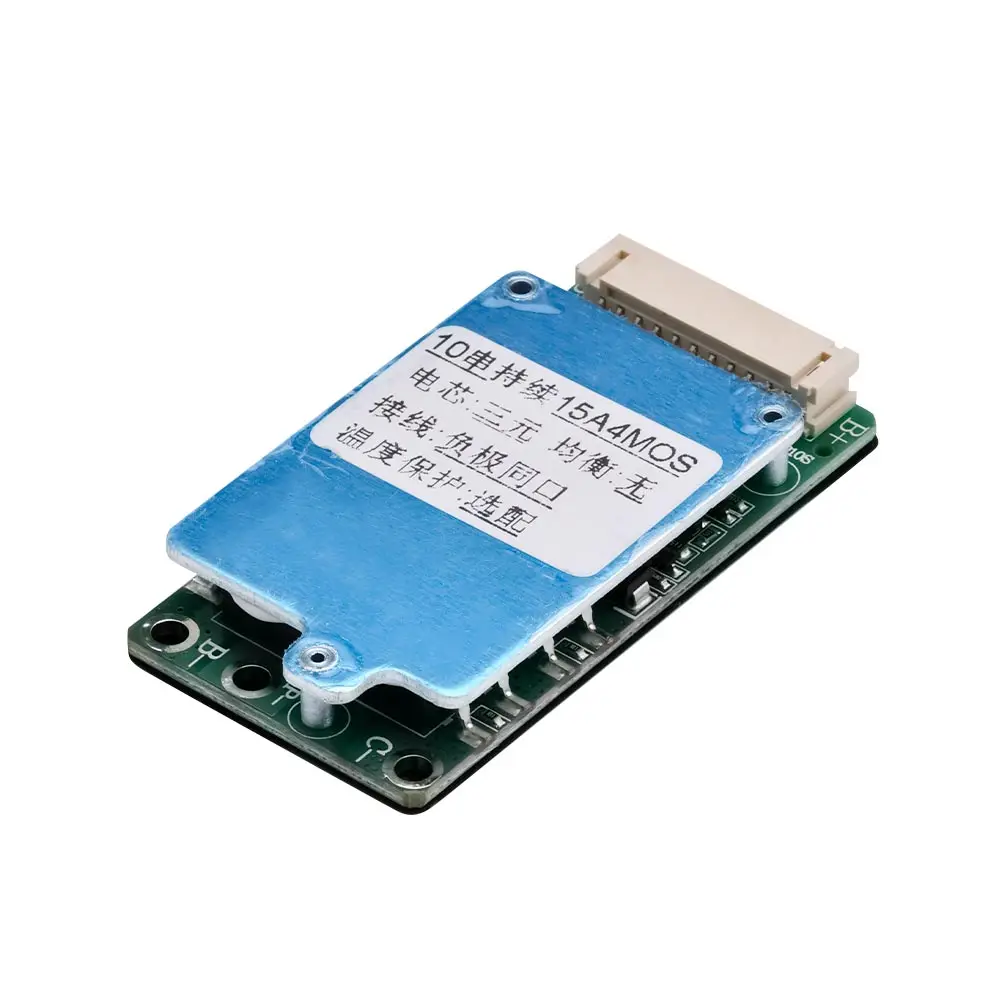

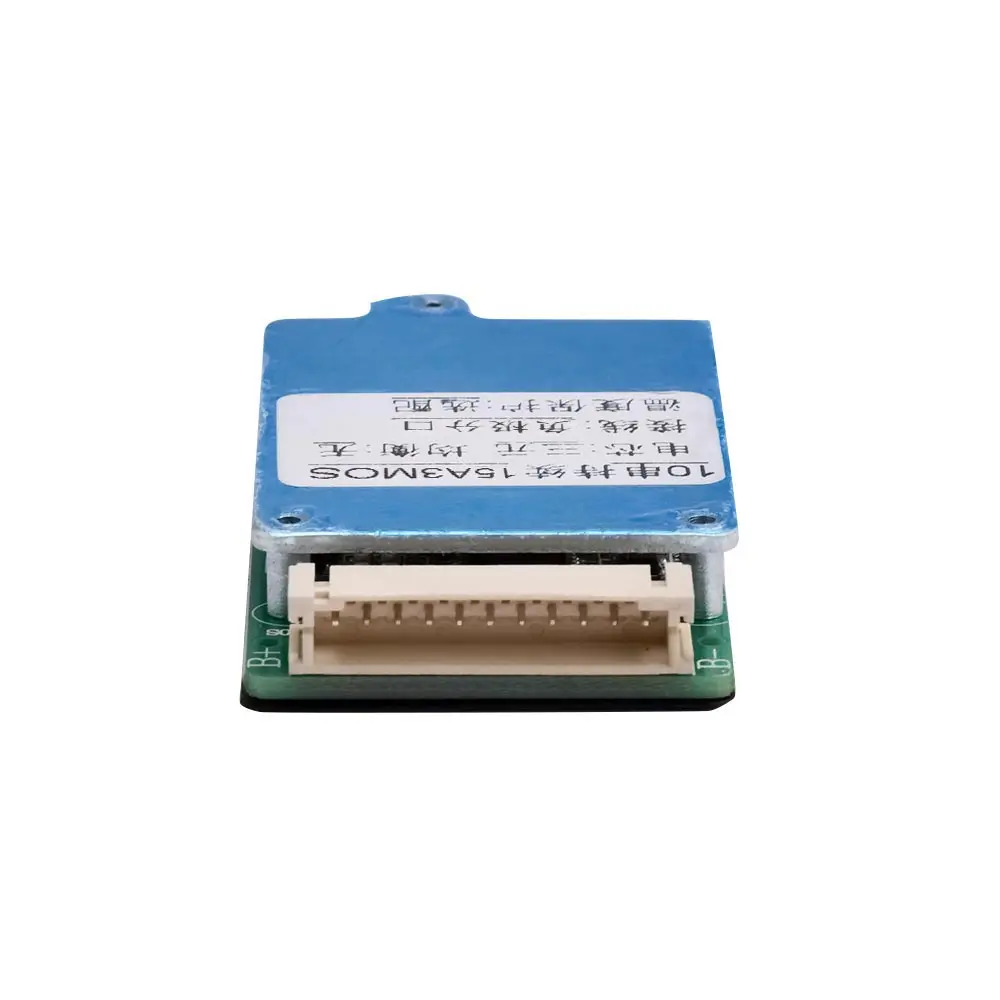

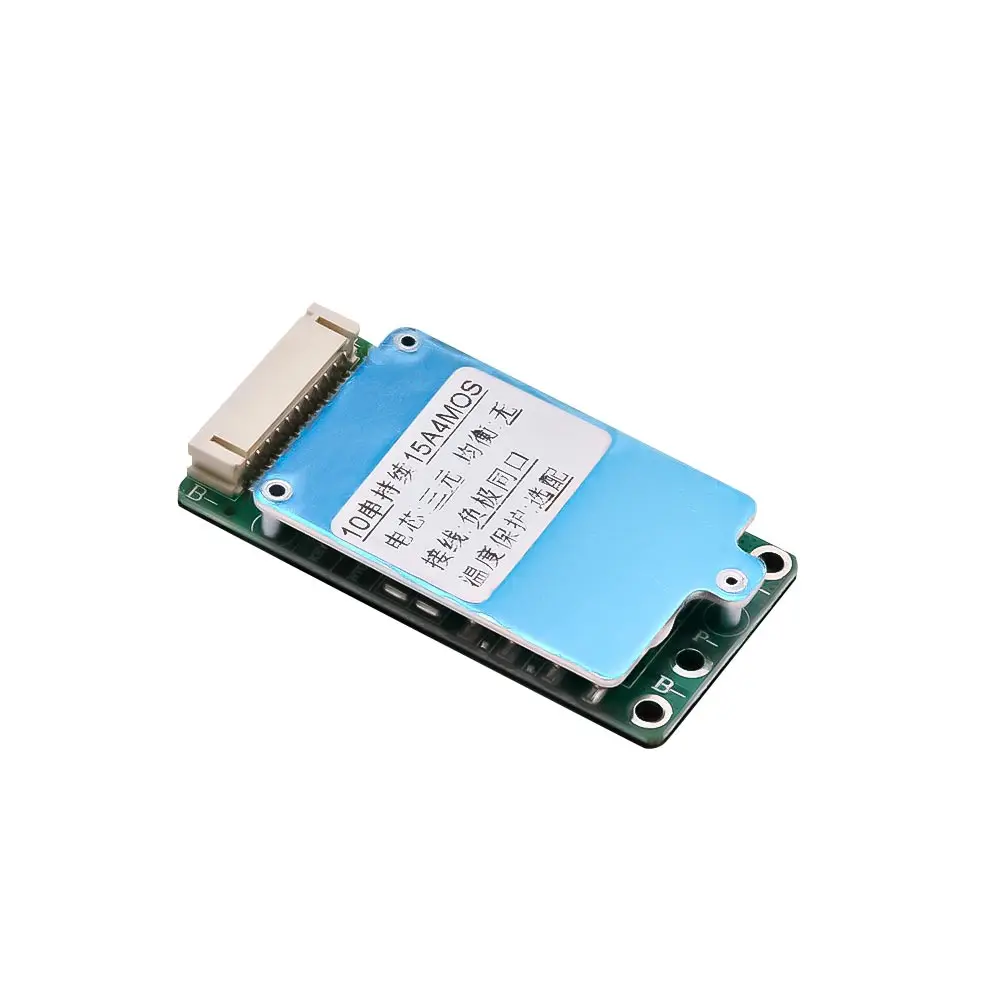

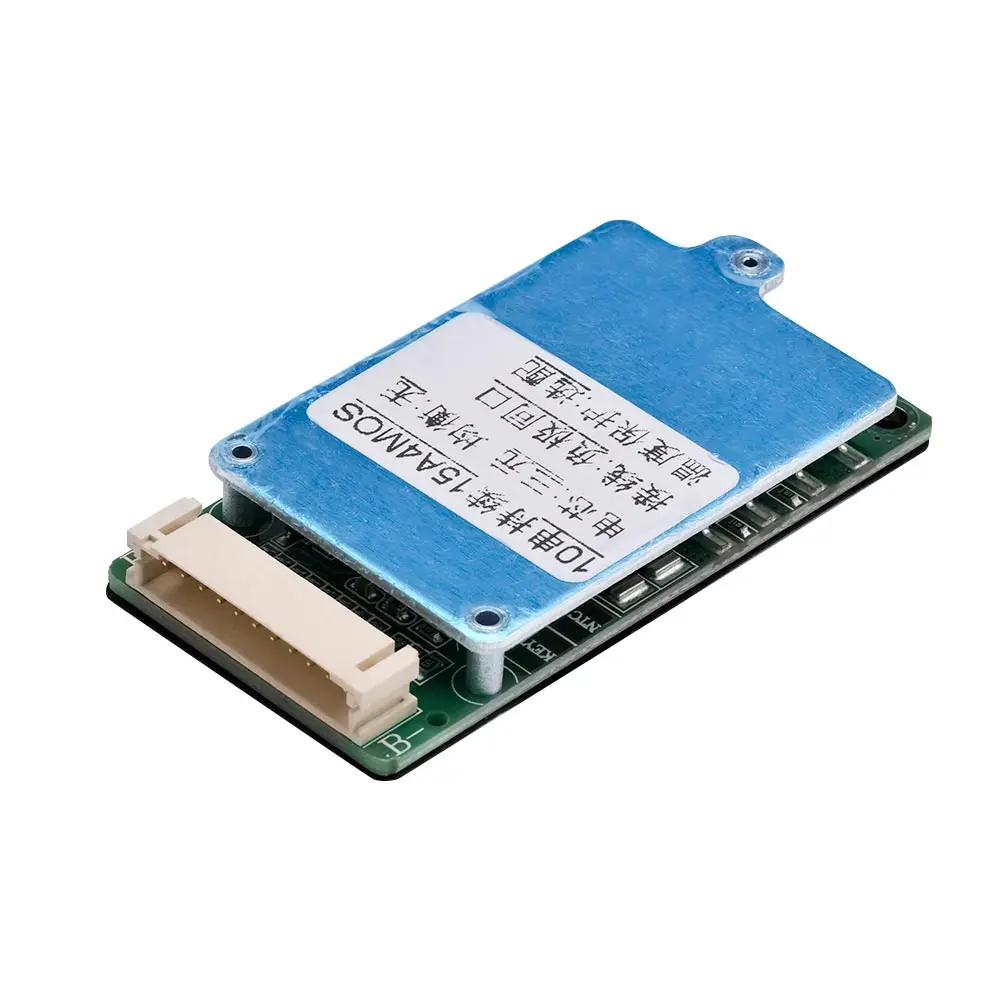

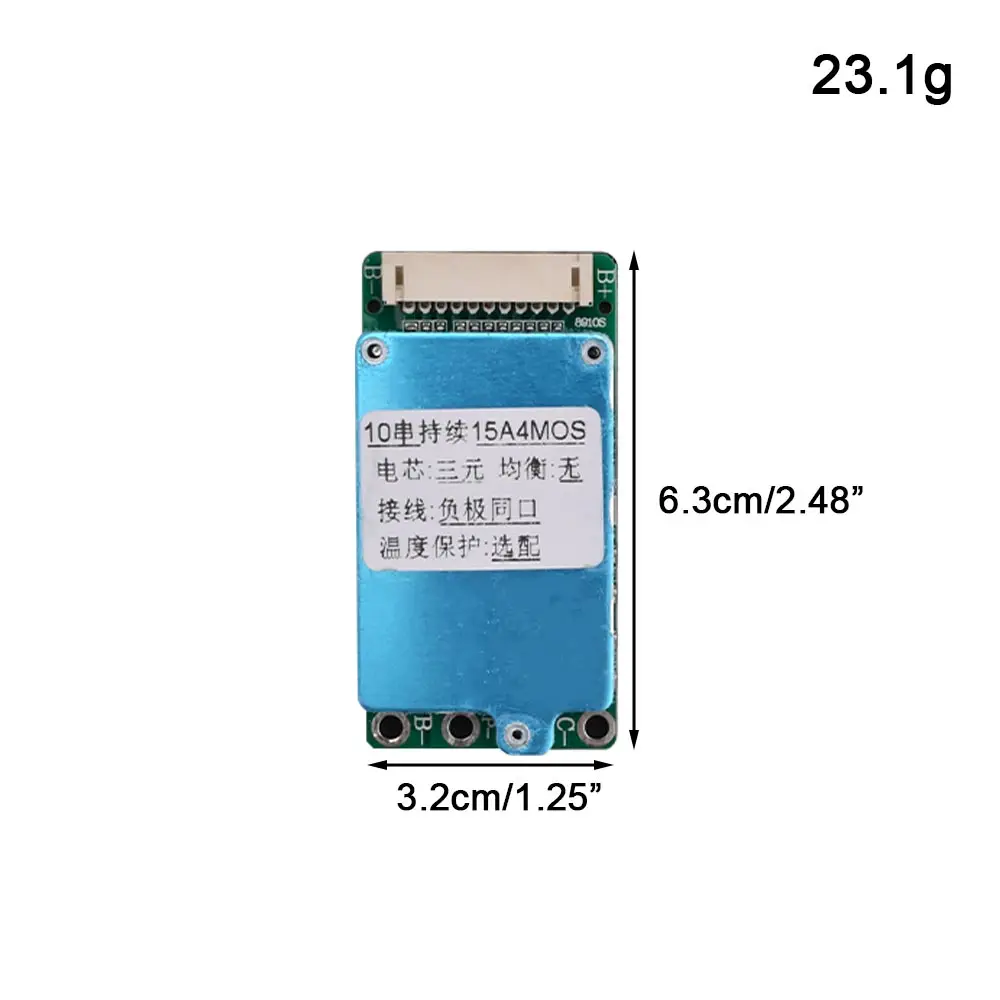

10S 36V 15A 18650 Lithium Battery Protection Board Same Port/Split Port

Features:

Exquisite craftsmanship

Stable heat dissipation

Overvoltage protection

Over discharge protection

charging protection

Short circuit protection

Overcurrent Protection

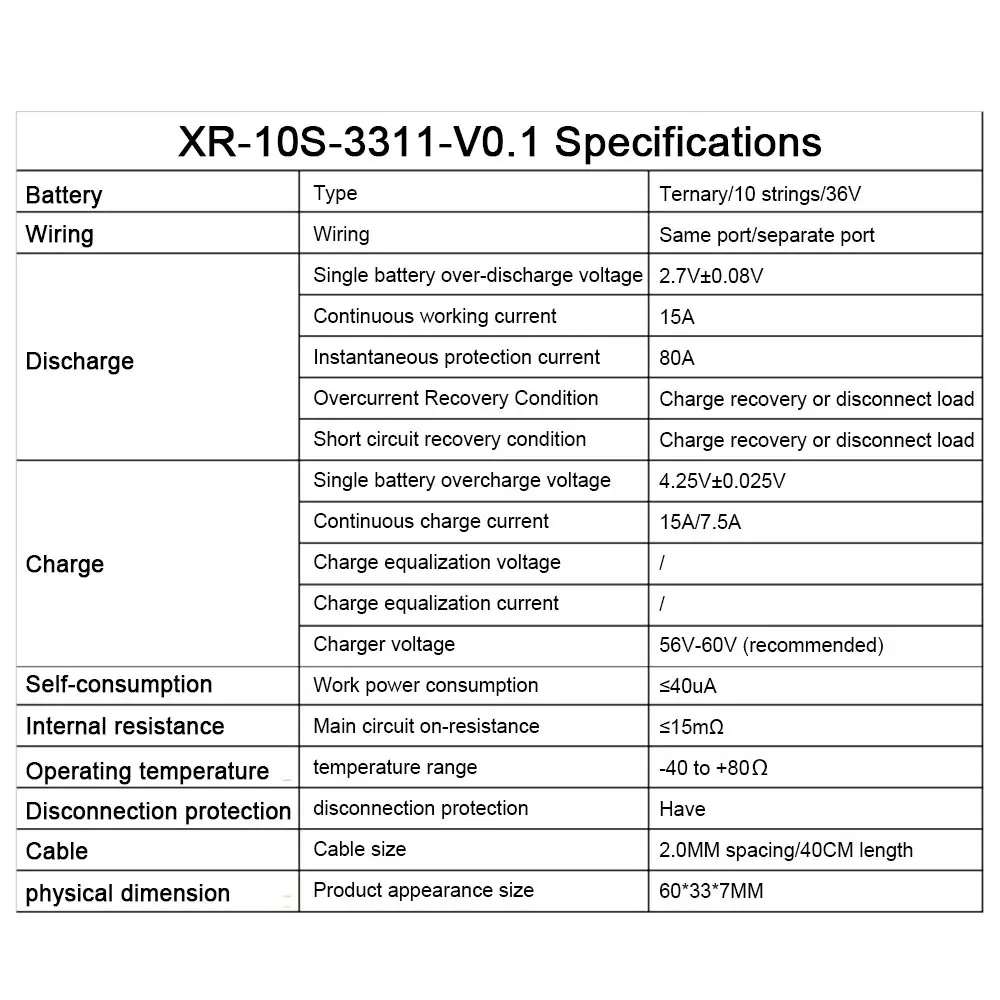

Specification:

Type: 10S 36V 15A

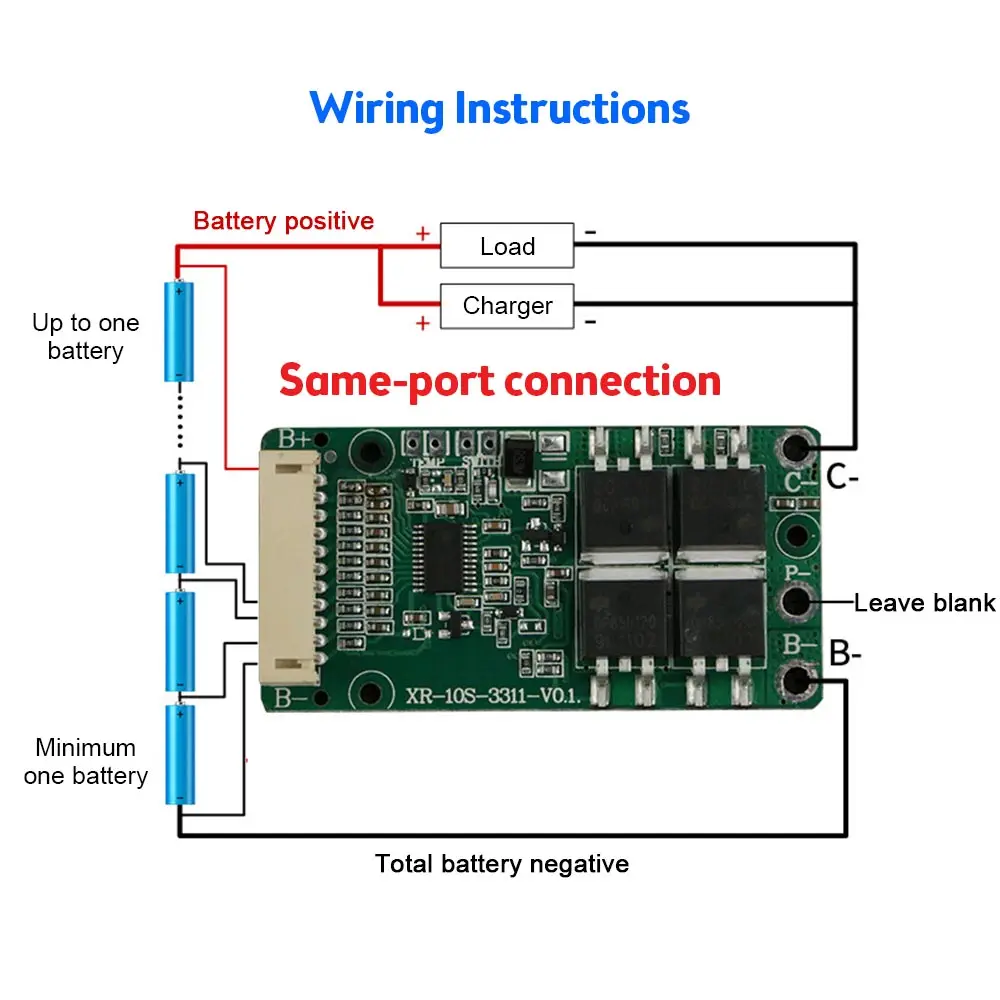

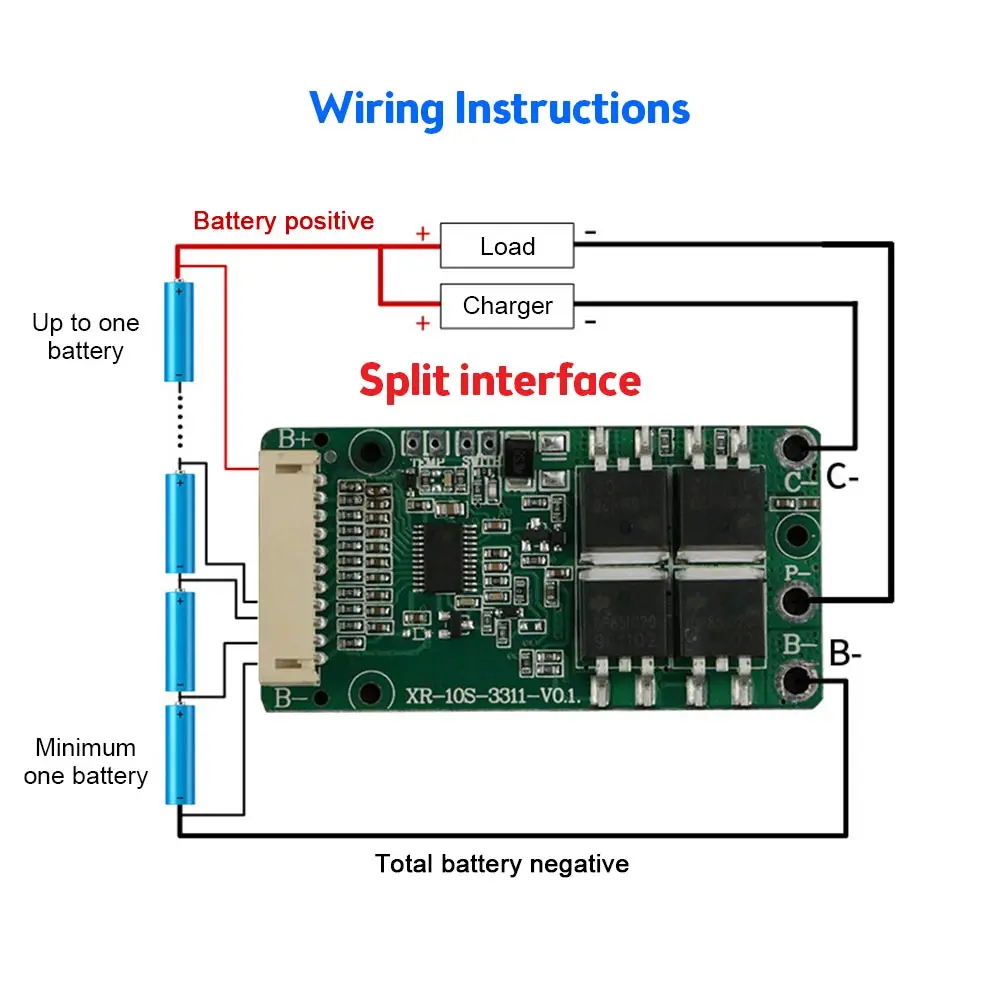

Wiring method: same port/split port optional

Working power consumption: ≤40uA

Main circuit on-resistance: ≤15mΩ

Temperature range: -40 to +80°C

Disconnection protection: yes

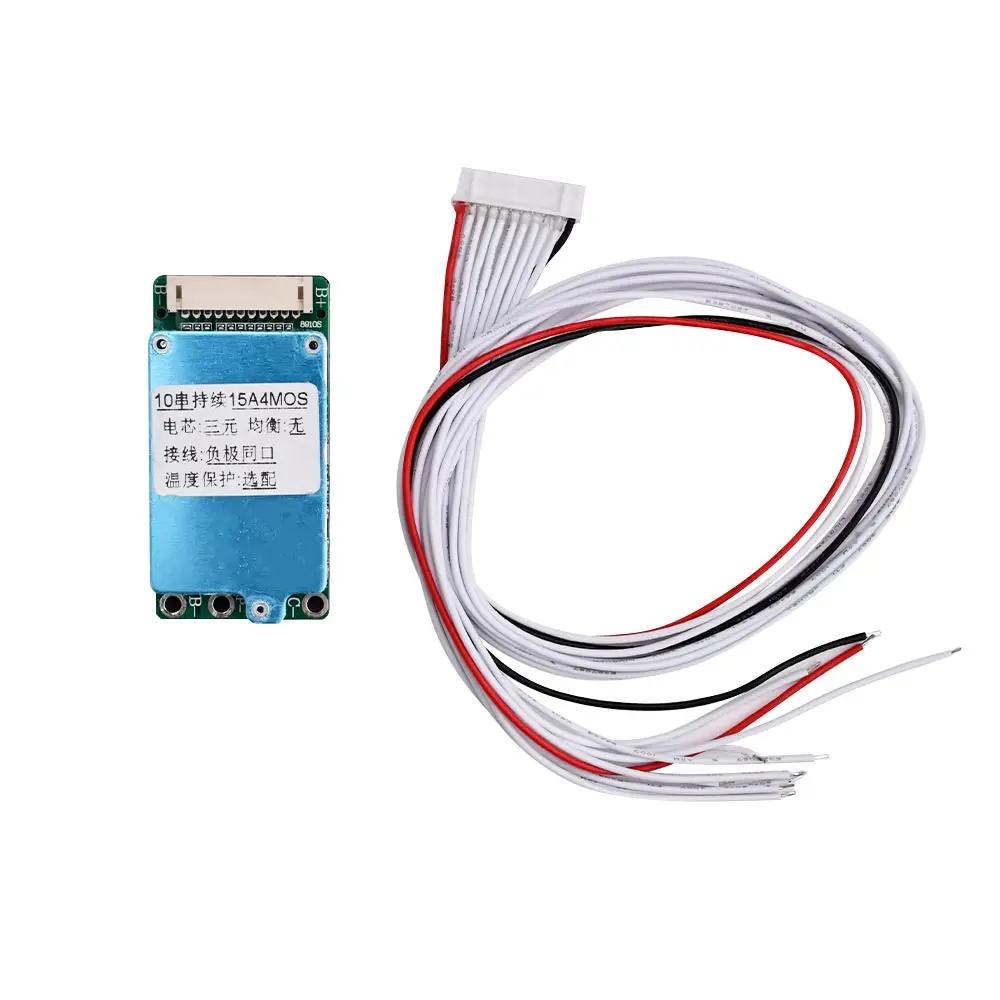

Cable size: 2.0MM spacing / 40CM length

Discharge:

Single-cell battery over-discharge voltage: 2.7V±0.08V

Continuous working current: 15A on the same port and 7.5A on the same port

Instantaneous protection current: 80A

Overcurrent Recovery Condition: Charge Recovery/Disconnect Load

Short circuit recovery conditions: charge recovery/disconnect load

Charge:

Single-cell battery overcharge voltage: 4.25V±0.025V

Continuous charging current: 15A

Charger voltage: 56V-60V (recommended)

Package:

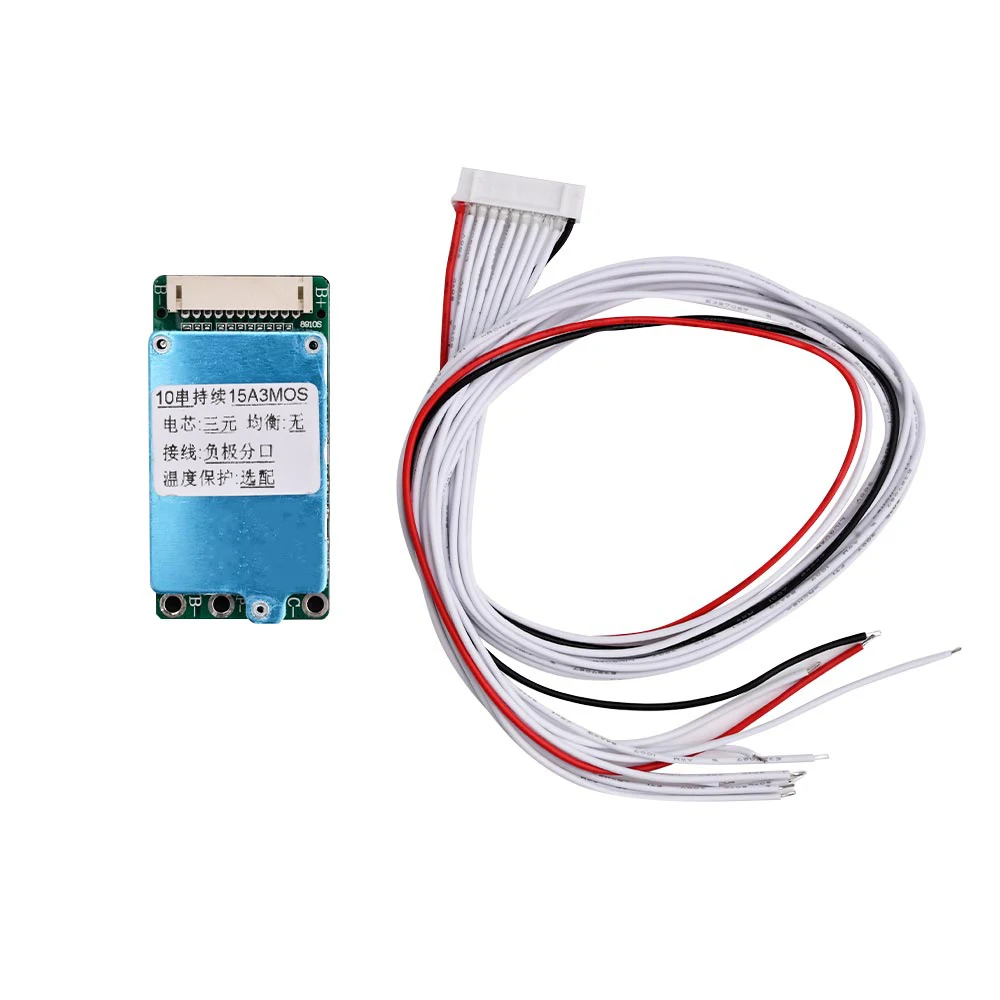

10S 36V 15A 18650 Lithium battery charging protection board X1
