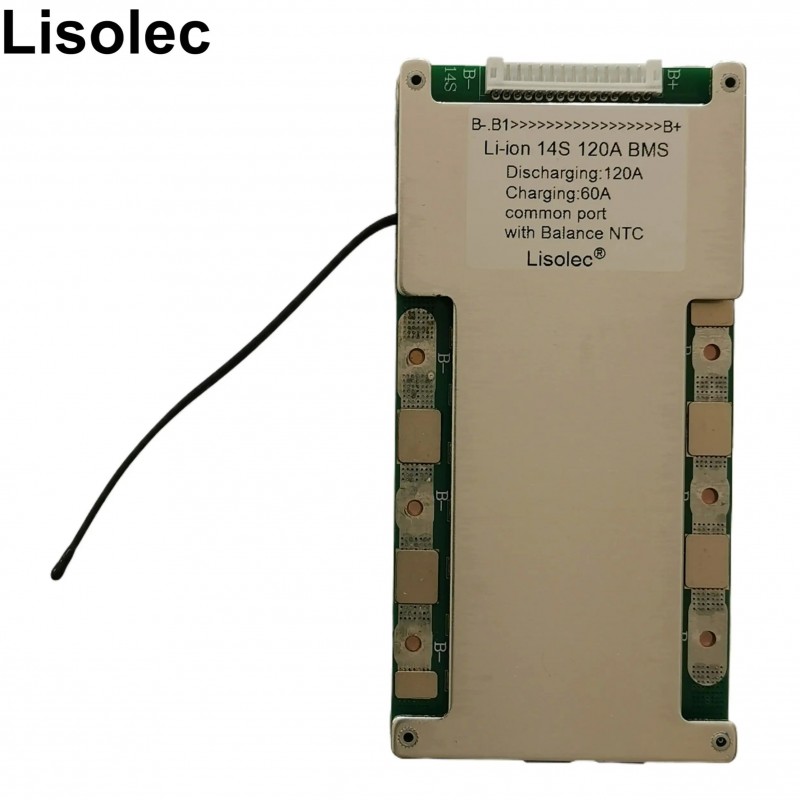

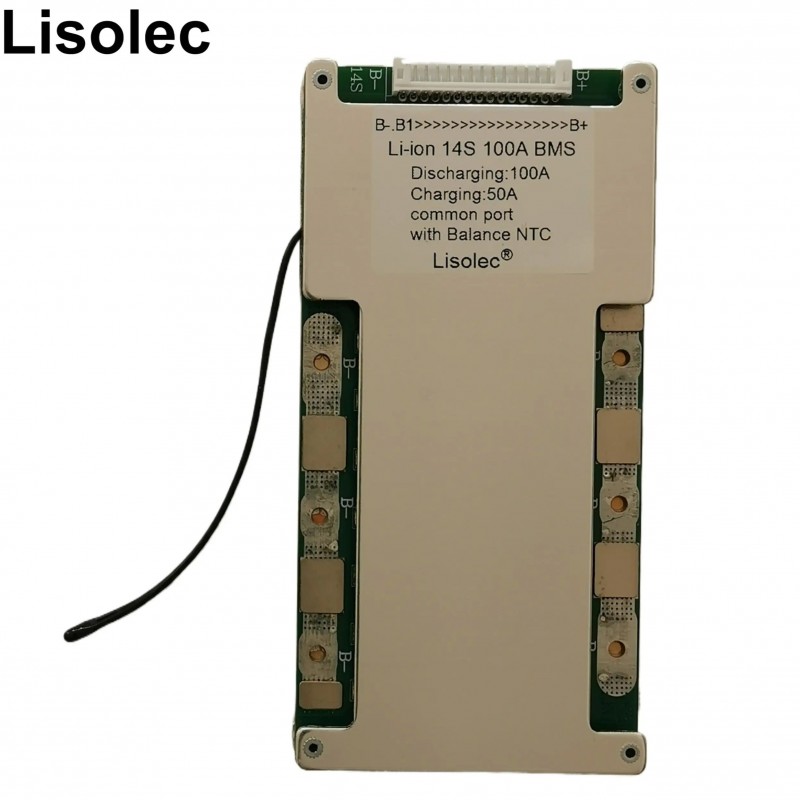

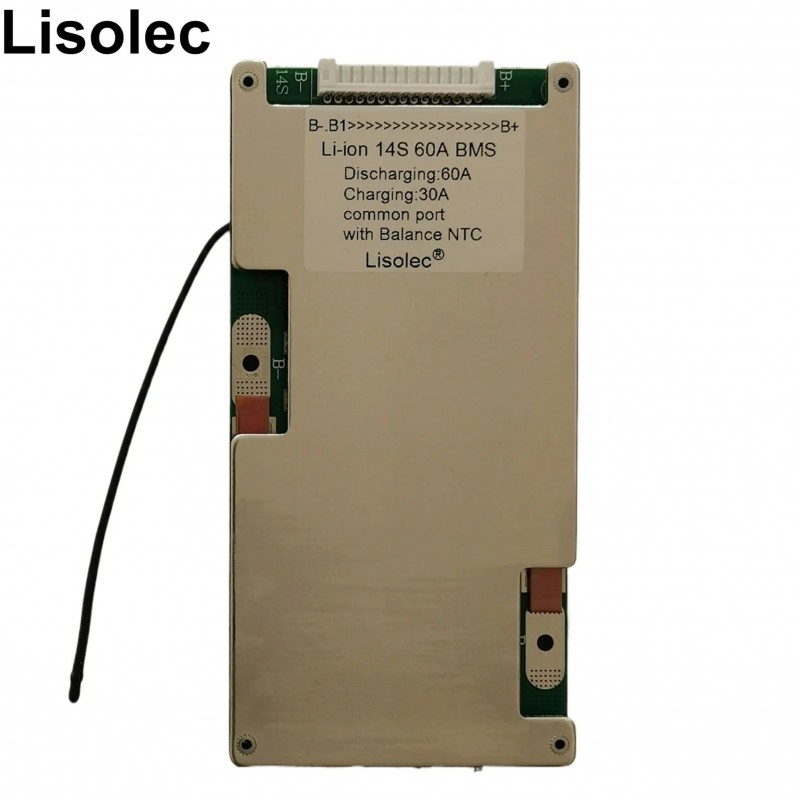

14S BMS 48V Lithium Battery 60A/100A/120A For E-bike Scooter

Μεγαλύτερη προβολή

Προηγούμενο

Επόμενο

14S BMS 48V Lithium Battery 60A/100A/120A For E-bike Scooter

Αναφορά

Περισσότερες λεπτομέρειες

Διαθέσιμο

Εκτύπωση

Άλλες πληροφορίες

Important:

1: This link Lisolec BMS are used in 14S Li-ion/Lithium/Lipo battery pack, charging voltage 14X4.2V=58.8V.

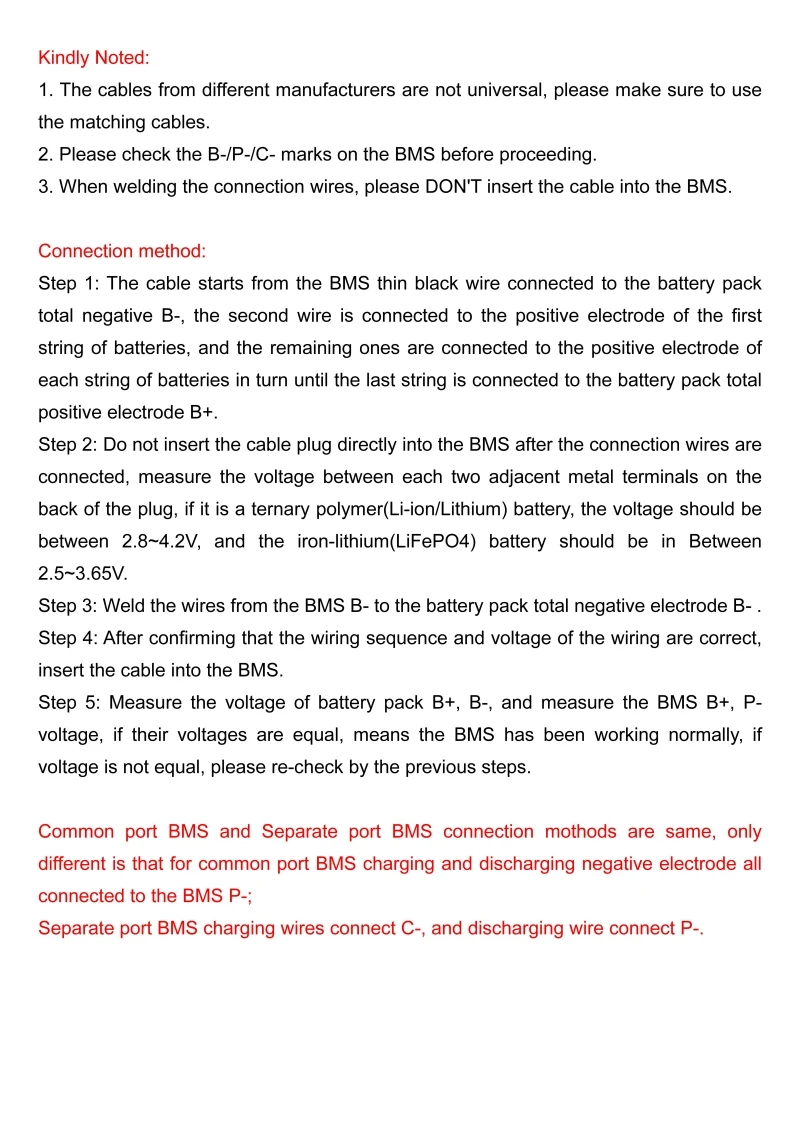

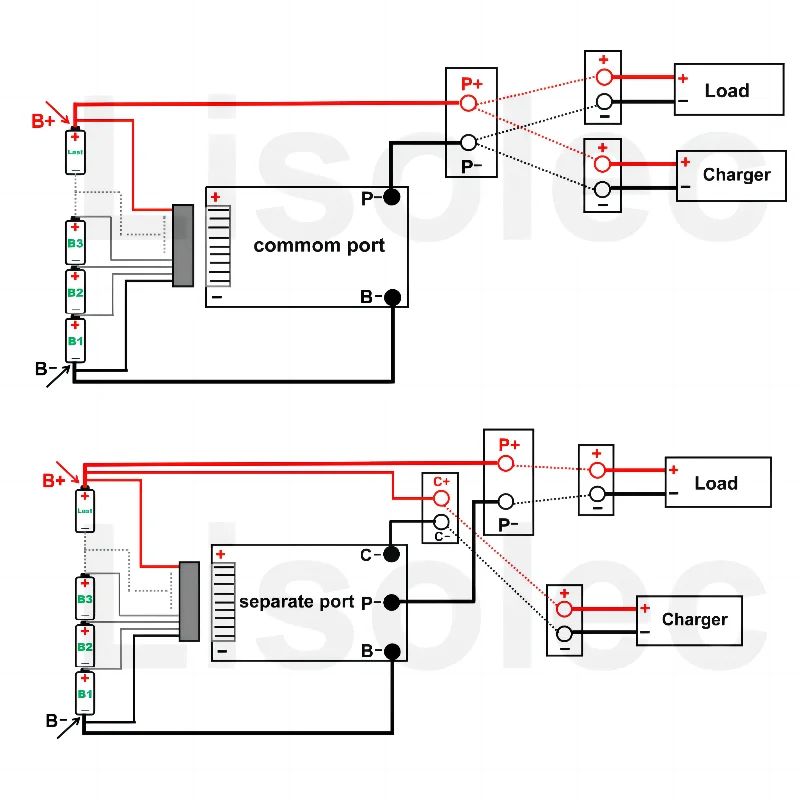

2: Common port bms, charging and discharging use same port/wire,

BMS port only have P-, B-;

Separate port bms, charging and discharging use different ports/wires,

BMS port have P-, B-,C-;

3. Please don't series BMS or Parallel BMS for battery safety considering.

Any other questions or requests, welcome to contact our customer service, thanks for your attention.

BMS Specifications:li-ion 14S 48V
(20A/30A/50A/60A100A/120A)
Charging voltage:N*4.2V
Wiring:Common Port
Discharge current:(20A/30A/50A/60A/100A/120A)
Charging current:Half of the discharge current
Main circuit conduction internal resistance:≤15mΩ
Discharge overcurrent protection:3 times the discharge current

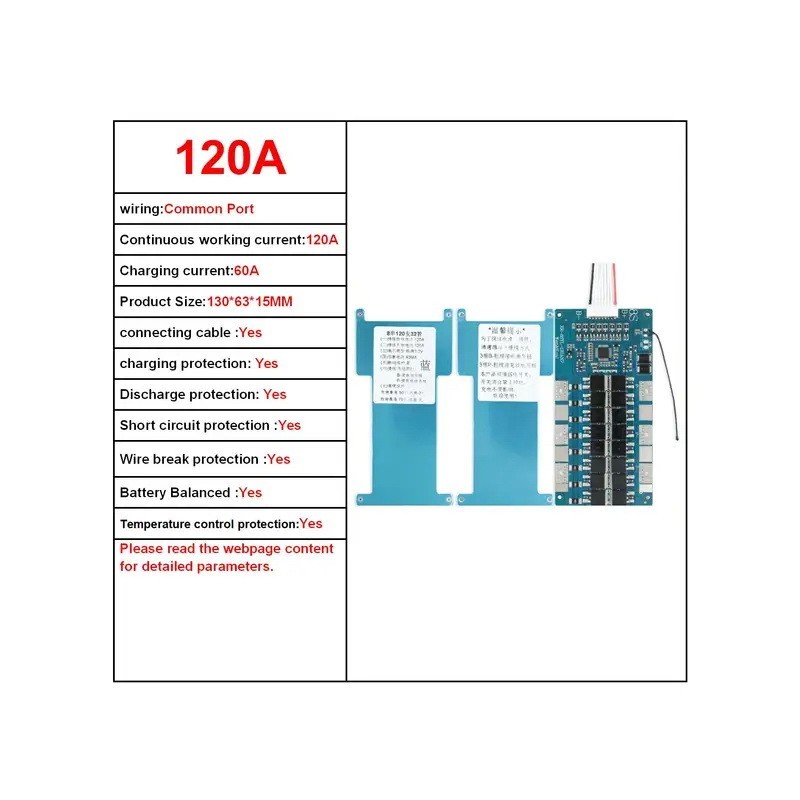

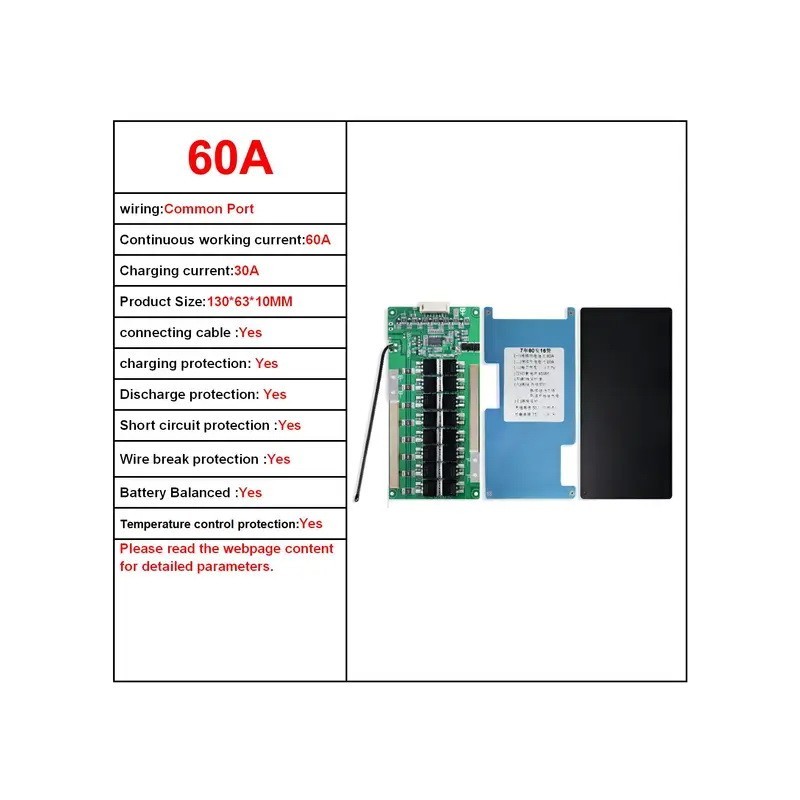

Product Size
20A/30A:69*50*10mm
50A/60A:130*63*10mm
100A/120A:130*63*15mm
cable: have

Overcharge protection
Detection voltage:4.25V±0.025V
Detection delay:1000±500MS
Release voltage:4.15±0.05V

Over-discharge voltage protection
Detection voltage:2.7±0.1V
Detection delay:1000±500MS
Release voltage:3.0±0.1V

Balanced voltage

Detection voltage:4.15±0.025V
Detection delay:100±50MS
Balance current:42MA(maximum value)

Discharge overcurrent protection

Detection voltage:50MV
Detection delay:1000±500MS
Current protection:3 times the discharge current

Short circuit protection

Trigger condition:external short circuit
Detection delay:<350us
Release condition:disconnect the load

Temperature control protection
Charging working temperature: 55℃
Discharge working temperature: 70℃
Release condition: recover within working temperature

disconnection protection
Trigger condition: Any set of battery cables is disconnected,cut off output and input
Release condition: restore the cable connection

Self-consumption
Working power consumption:<40UA

Sleep over-discharge power consumption:<10UA
Working temperature range:-30°~+80°C
