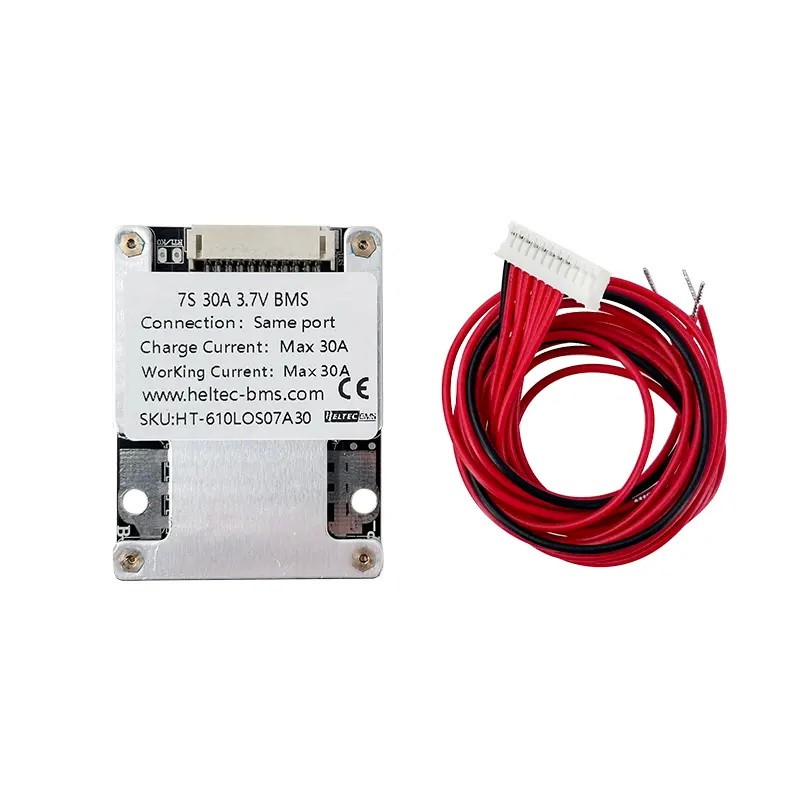

7S 30A 3.7V Same Port

Size：63×48×8

Overcharge protection : 4.25v

Over-discharge protection : 2.8v

Abnormal high voltage protection

Maximum continuous current : 30A

Discharge over current protection : 100A

Load short circuit protection

Balance current : 83 mA

Charging recovery

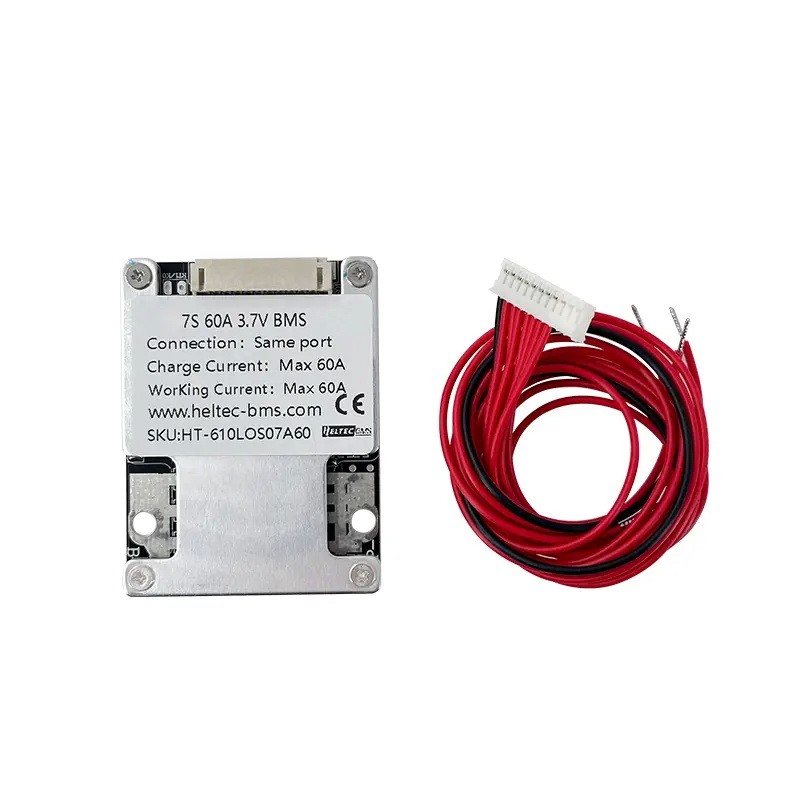

7S 60A 3.7V Same Port

Size: 63×48×14

Overcharge protection : 4.25v

Over-discharge protection : 2.8v

Abnormal high voltage protection

Maximum continuous current : 60A

Discharge over current protection : 200A

Load short circuit protection

Balance current : 83 mA

Charging recovery



Application：

Applicable to 24V Electric bicycle and electric tools within 1200W

7S connection diagram

product Include
