(SKU): 320A 7.2V-16V

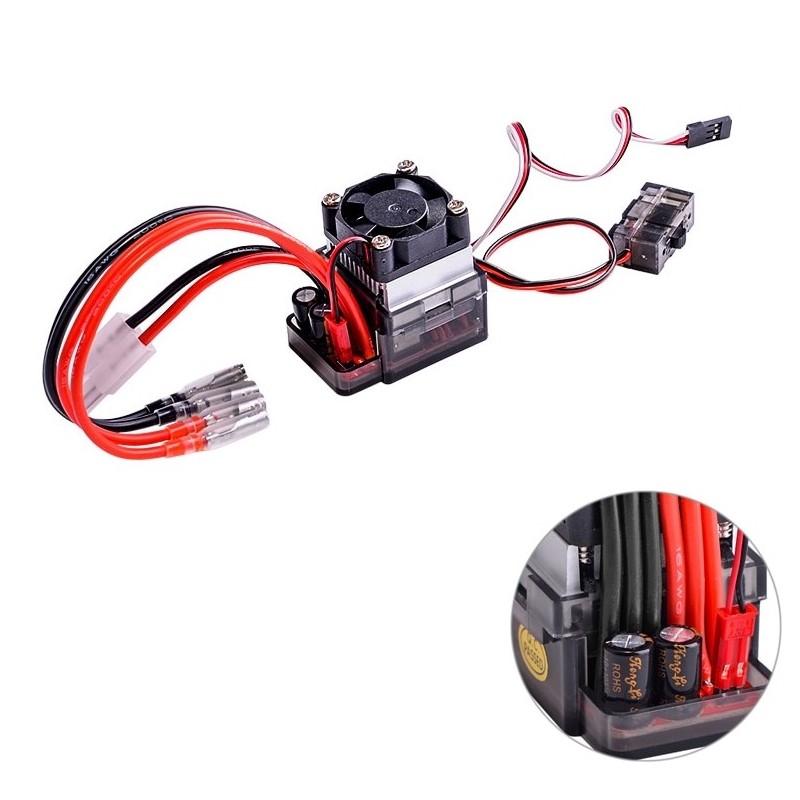

320A Brush ESC Speed Controller For 1/10 RC Car Truck Boat (2s-3s)
Προσοχή: Τελευταία κομμάτια!
60A continues /320A peak
Input voltage(advise):6-12 cells NiMH/NiCd or 2-4 cells LiPo.
Weight:60g (including connectors and switches)
Output current:forward 320A
Out of control protection
Low voltage protection
With heat sink
For 540 dual motor or single motor
Operating system : forward, reverse, and brake
With this power transfer would not have to worry about slow tram Motor Boats only need to
replace the original power transfer
1.the right and a power supply battery connection on both ends of the wiring board the red

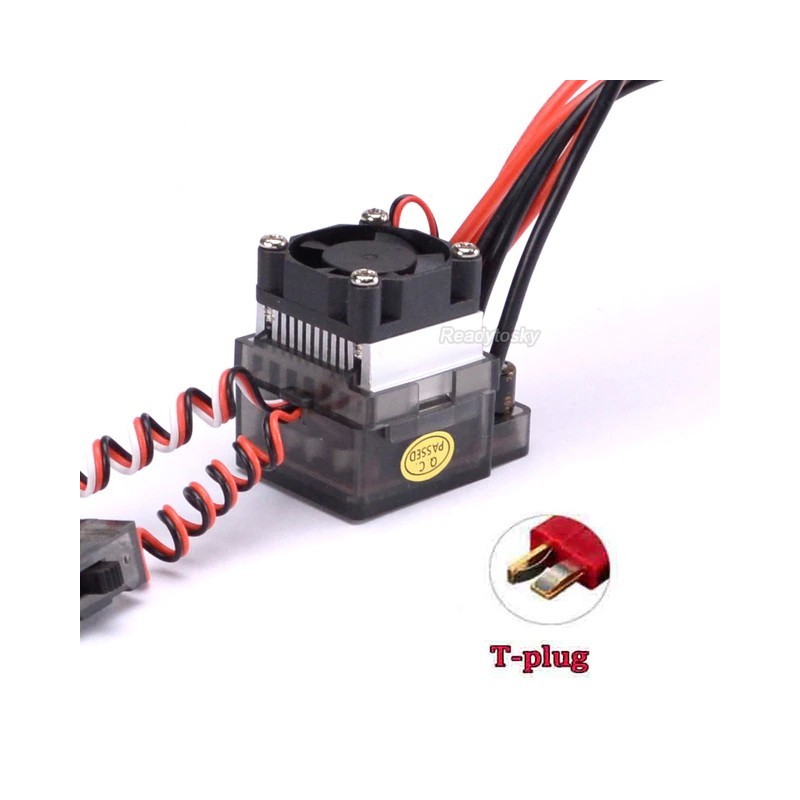

line for positive, black, compared with negative. (Or standard DC battery connection plug Daejeon
male plug / T-plug / banana plug)
2.ESC output red and black wire are connected to the red and black lines of the car 540 motor.
3.open the ESC power switch, if no signal input, motor will send a beep ~ beep ~ beep "alarm sound.
Turn the transmitter power signal injection will issue the voice of the duo ~ ~ Mi ", has been connected
to prove the transmitted signal and receiving the electrical and mechanical tone.
Net weight:92 g
Package weight:102 g
1 x 320A Brushed ESC
