Specification:

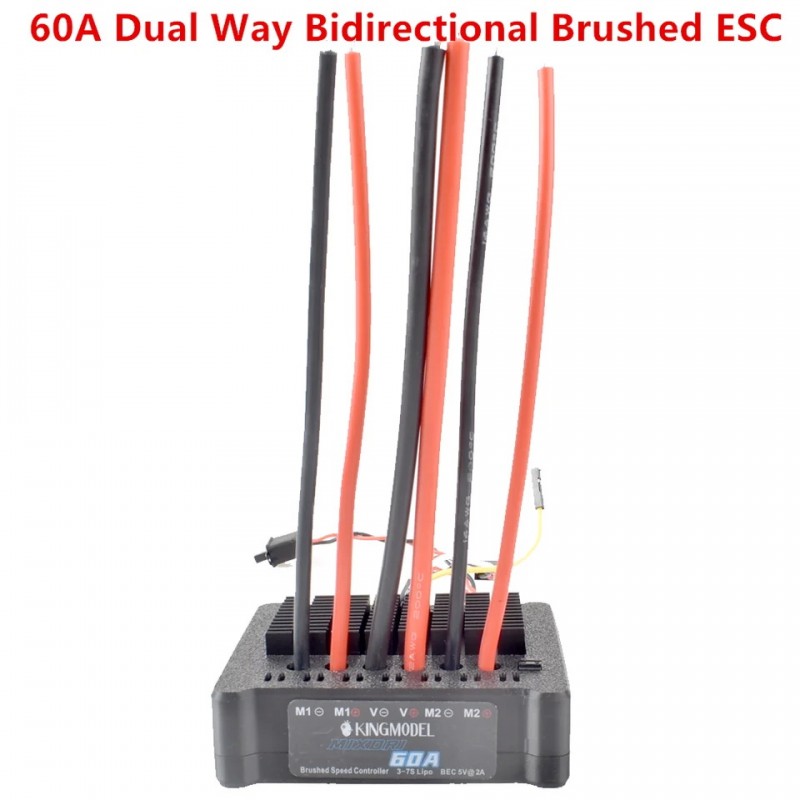

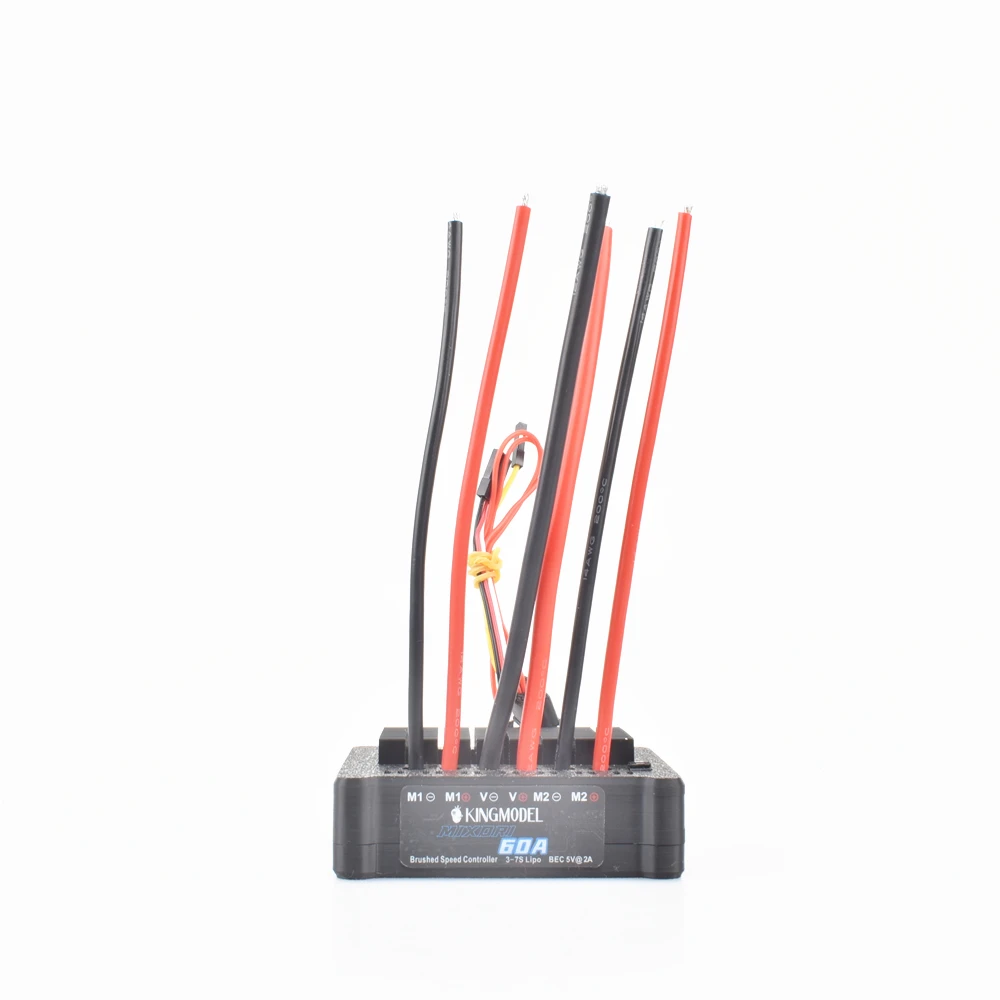

60A Dual Way Bidirectional Brushed ESC

  1- Working Voltage: 10v-32v(lithium battery 3s-7s) support 24V battery.

  2- Continuous/Peak Current: 60A/480A forward, 60A/480A reverse.

  3- Wire: power wire：14AWG-150mm

       motor wire:             14AWG-150mm

  4- Size: 65.5mm X 53.0mm X 27.5mm

  5- Weight: 113g

6- SupportMotor: support 24V less than 12000rpm 540/550775/795 brush motor, only used by motor within 12000rpm; connect with only one motor.

 Features：

  1-Two modes of output:Mixed control mode, Independent control mode

  2- Safety Arming Feature:the motor will not rotate until the throttle lever is unlocked at the midpoint.

  3-Over-heat protection:When the temperature of the ESC is over 130 Celsius degree, the ESC will gradually reduce the output power.

  4- Throttle signal loss protection:The ESC will gradually reduce the output power if the throttle signal is lost for 1 second,

      further loss of signal for 1 second will cut-off  the power.
