1PCS/LOT Micro Motor FF-180SH 5VDC FF-180SH-2657 1.2VDC FF-180SH-3825 Motor 180 for Electric Shaver, Toothbrush

1PCS/LOT Micro Motor FF-180SH 5VDC FF-180SH-2657 1.2VDC FF-180SH-3825 Motor 180 for Electric Shaver, Toothbrush

Περισσότερες λεπτομέρειες

Διαθέσιμο

13,00 € με Φ.Π.Α

Άλλες πληροφορίες

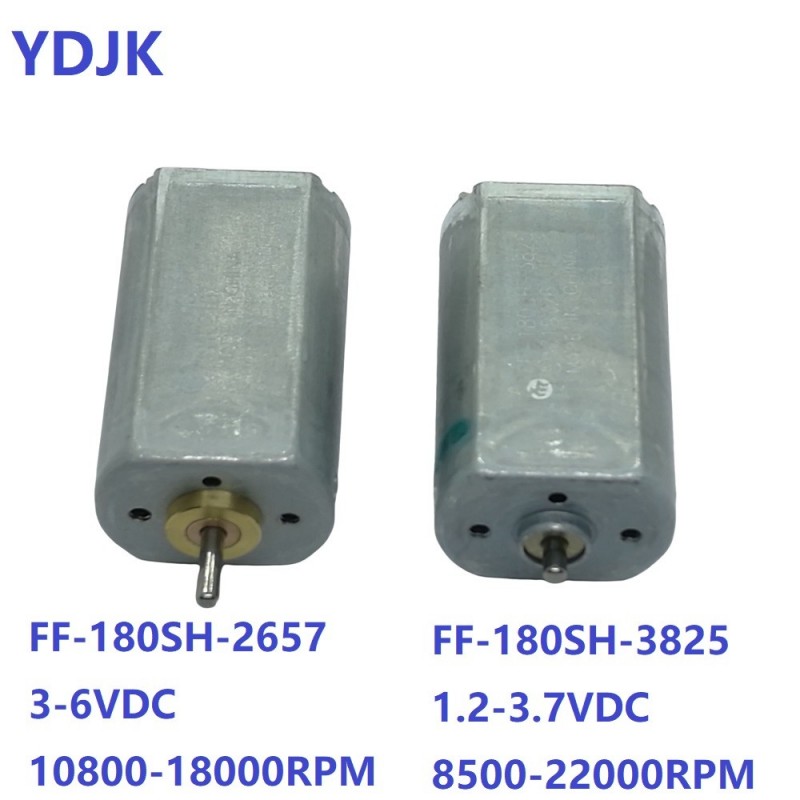

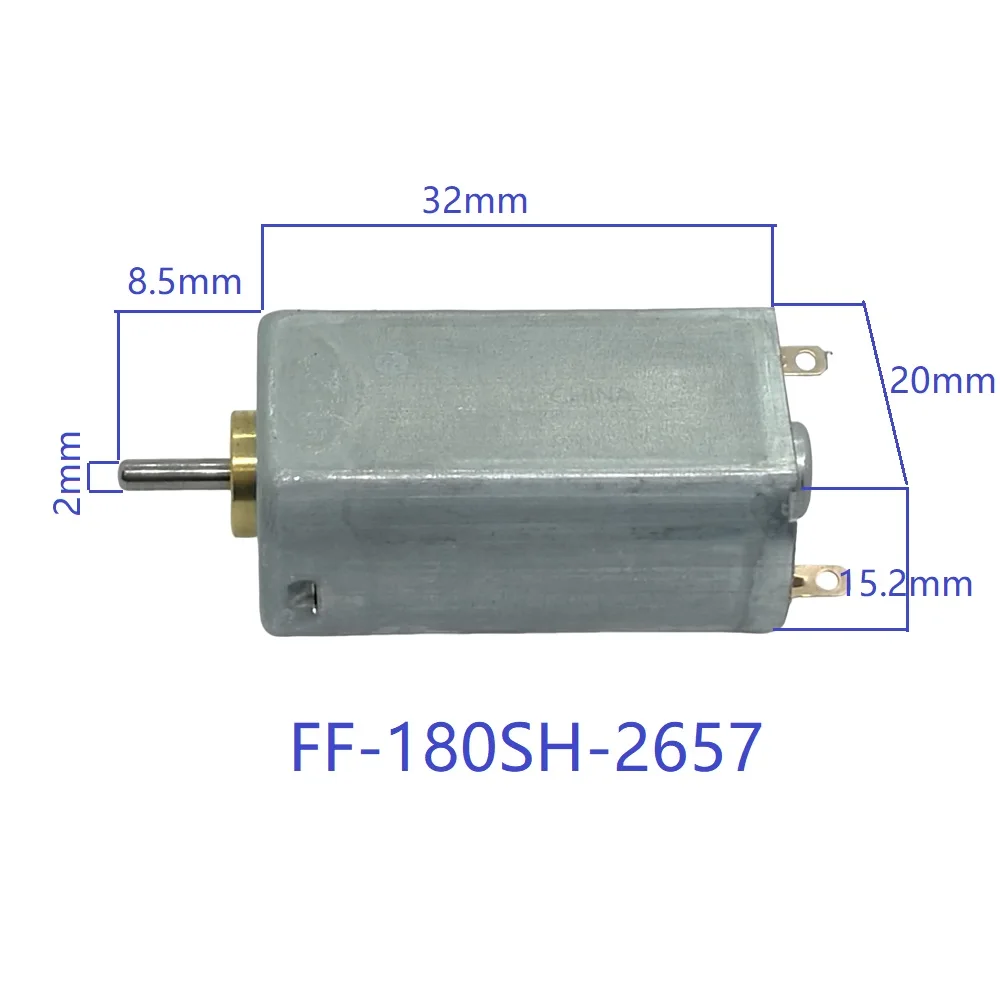

Motor Model:FF-180SH-2657
Motor Specification: 15.2*20 mm
Motor Height: 32 mm
Output axis: 2.0 mm
Output axis length: 8.5 mm (from panel measurement)
Weight: 33g

Voltage: DC 3V
Current: 0.16 A
Speed: 10800 RPM
Voltage: DC 5V
Current: 0.2 A
Speed: 15300 RPM
Voltage: DC 6V
Current: 0.23 A
Speed: 18000 RPM

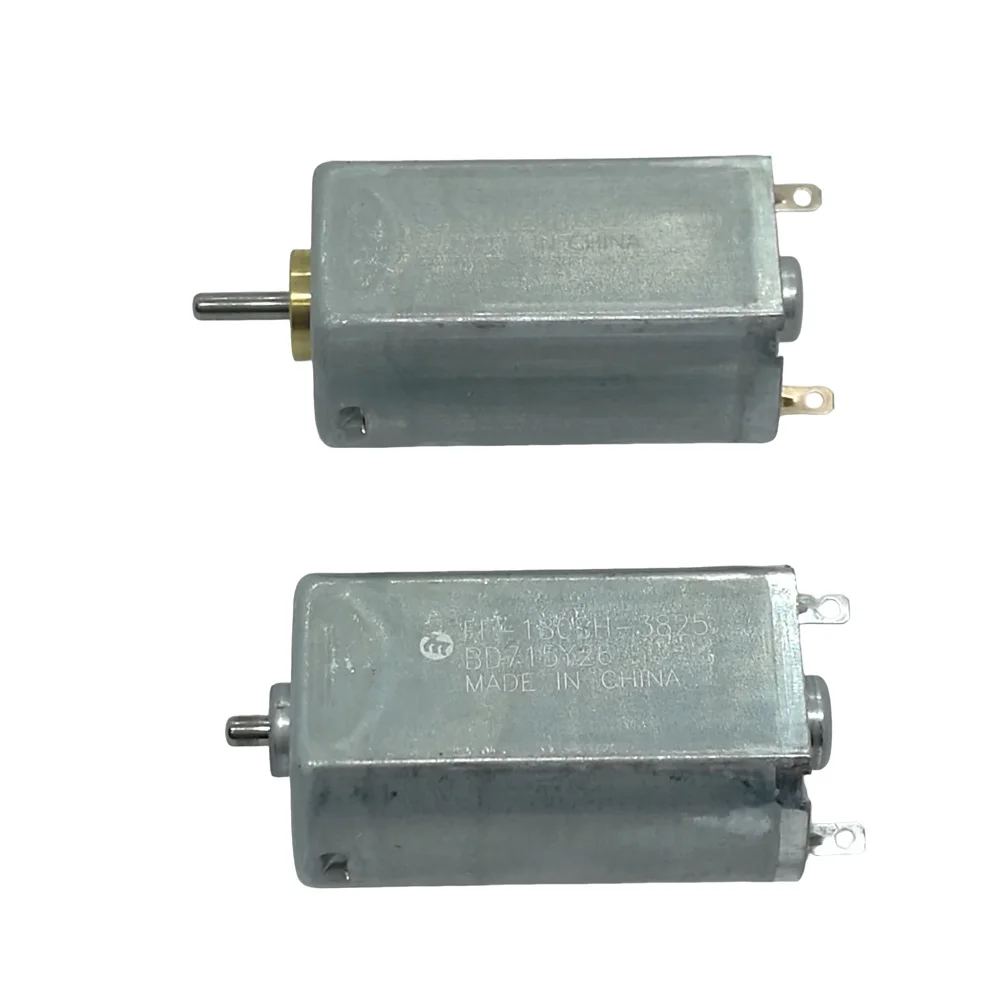

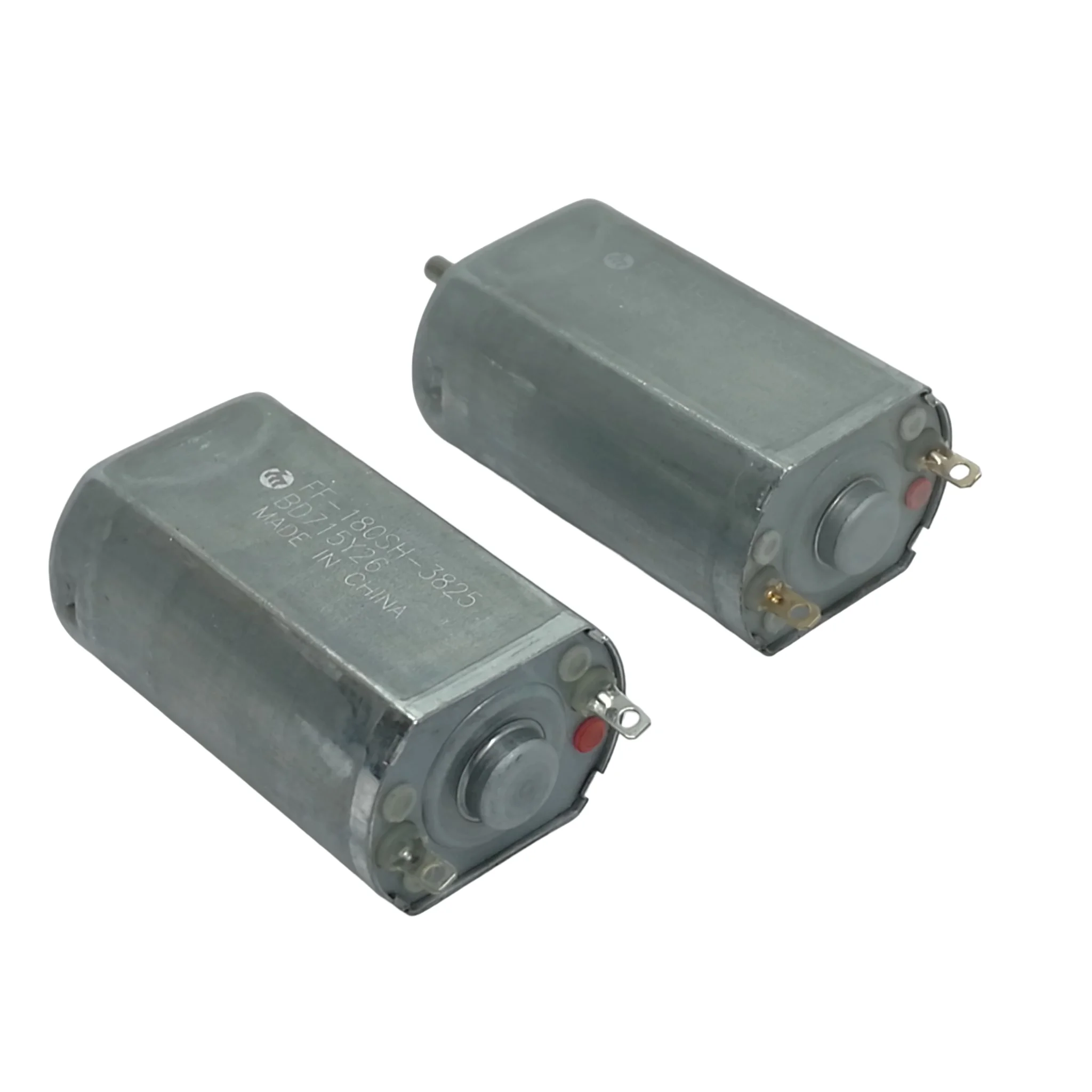

Motor Model:FF-180SH-3825
Motor specifications: 15.2*20 mm
Motor height: 32 mm
Output shaft: 2.0 mm
Output shaft length: 3 mm
Voltage: 1.2VDC (rated voltage)
Current: 0.33 A (blocking is greater than 3 A)
Speed: 8500RPM
Voltage: 3.7 VDC
Current: 0.5 A (blocking over 5 A)
Speed: 22000 RPM

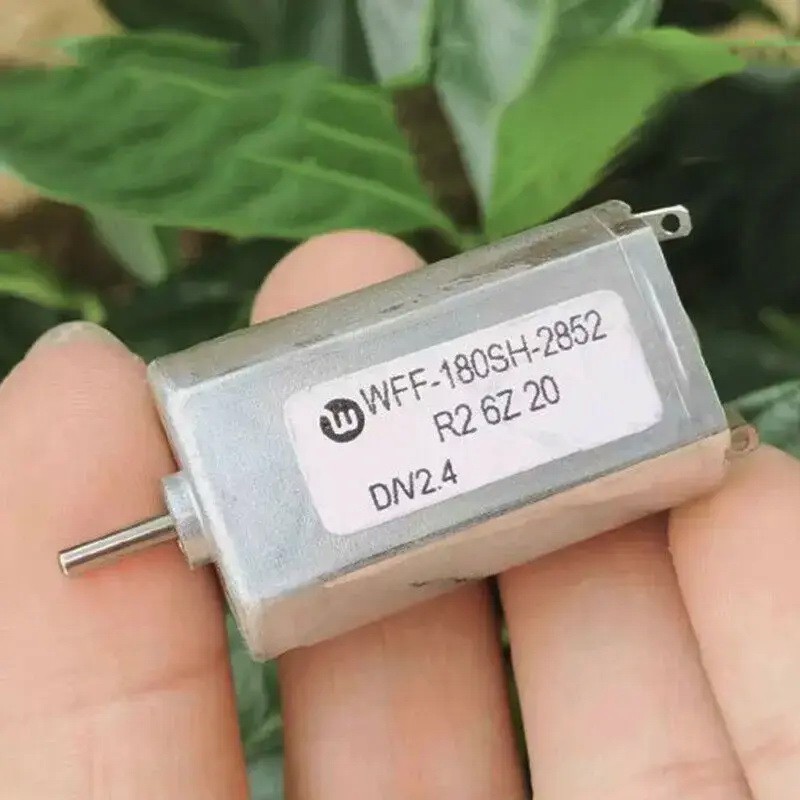

FF-180SH-2852:

Output shaft: 2.0mm

Output shaft length: 7.5mm

Voltage: 1-3VDC

Current: 0.0.15 A

Speed: 8100RPM

S15c61020357d47e9a28f8db30812b468j.jpgSddd0dd73118047feb820fd12cf8d3ec2m.jpgS8c9fd99b2fb1482a997f367723c48331y.jpgS9861ff2c9cf44c2b8228d4321bb2b682r.png

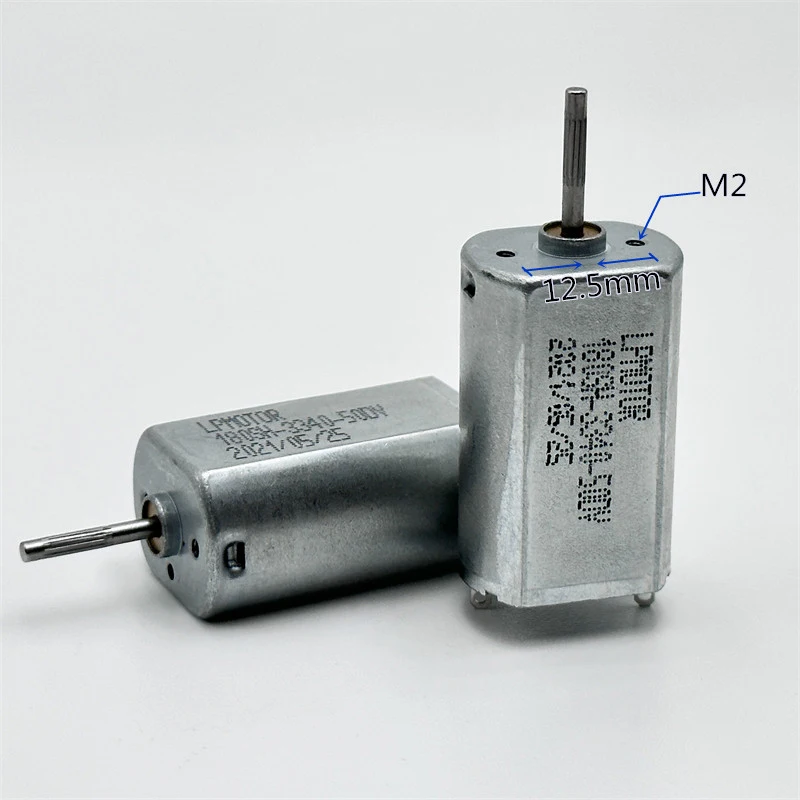

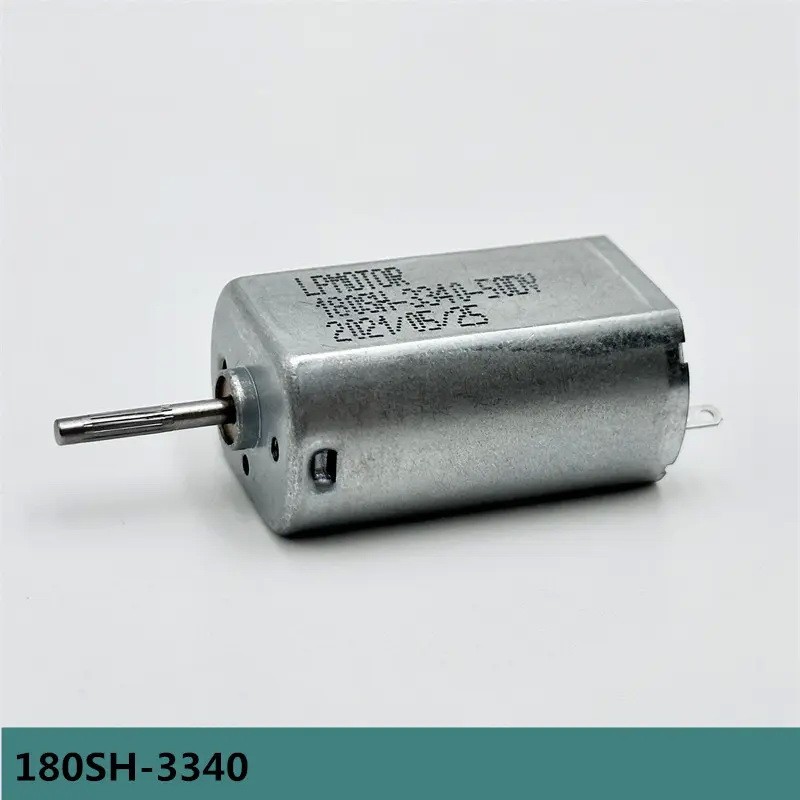

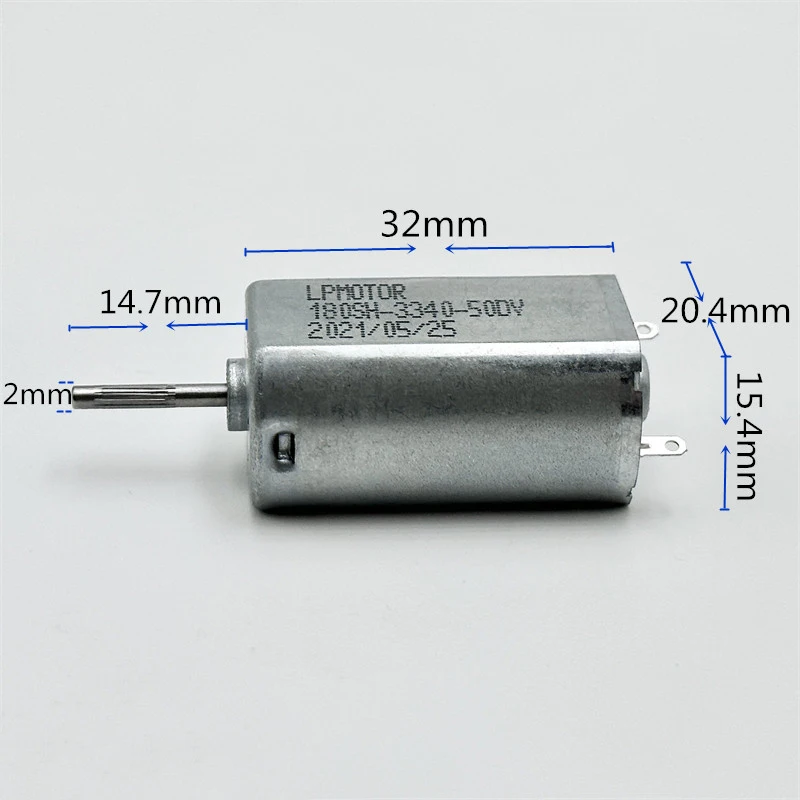

Specification:



1.Brand: 180 Motor

2.Model: 180SH-3340

3.Motor size: 20.4mm*15.4mm

4.Motor length: 32mm

5.Output shaft diameter: 2.0mm

6.Output shaft length: 14.7mm(include step height)

7.Weight: 32g

8.Voltage range: DC 1.5V-5.0V

9.Test data:

   Voltage:1.5V  No-load speed:6300RPM  No-load current:235mA

   Voltage:2.4V  No-load speed:10000RPM  No-load current:270mA

   Voltage:3.0V  No-load speed:12500RPM  No-load current:300mA

   Voltage:3.7V  No-load speed:15500RPM  No-load current:330mA

   Voltage:5.0V  No-load speed:20800RPM  No-load current:395mA
