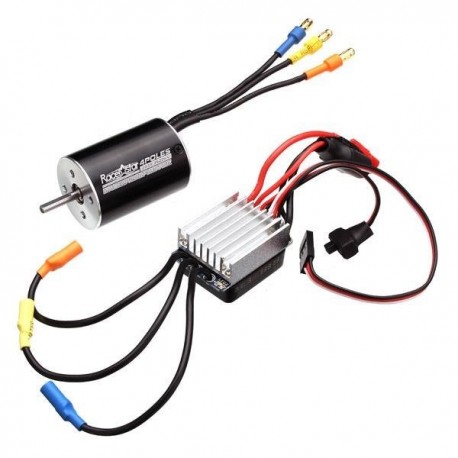

Racerstar 2838 Sensorless Waterproof Motor 4500KV 35A ESC For 1/12 1/14 Cars Μεγαλύτερη προβολή

2838 Sensorless Waterproof Motor 3600/4500KV 35A ESC For 1/12 1/14 Cars

Racerstar 2838 Sensorless Waterproof Motor 4500KV 35A ESC For 1/12 1/14 Cars

Περισσότερες λεπτομέρειες

Διαθέσιμο

55,00 € με Φ.Π.Α

Άλλες πληροφορίες

Racerstar 2838 Sensorless Waterproof Motor 3600/4500KV 35A ESC For 1/12 1/14 Cars

Racerstar 2838 Sensorless Waterproof Motor 3600/4500KV 35A ESC For 1/12 1/14 Cars
NOTICE: Cars are not included in the package.

Description:

Motor  Features:
- 4 pole 12 slot hi-torque motor design
- CNC machined 6061 T6 billet aluminum heatsink can
- High purity copper windings maximizes efficiency
- High RPM ABEC 5 oversized bearings
- Universal fit, fits all 1/12, 1/16, 1/18 brushless cars; multi-mounting system for M2.5 screws
- Precision balanced rotor, smoothness for best reliability and maxium RPM

Motor Specification:

ProductWattsMax VoltageMax AmpsRotor Poles  IOResistanceKV
(RPM/Volt)
Max RPMLengthDiametersWeight
(g)
Shaft
(mm)
Length of Extend ShaftConnector
283860012V50A41.8A0.028545005000038mm28mm95¢3.17515mm3.5mm gold
283860014V43A41.4A0.041536005000038mm28mm95¢3.17515mm3.5mm gold


ESC Features:
- Specially desighed for RC car with excellent start-up, acceleration and linearity feartures
- Compatible with sensorless brushless motor
- The strong resistant current capability, excellent heat dissipation
- Multiple protection features:  low voltage cut-off protection for lithium or nickel battery / over-heat protection / throtttle signal loss protection / motor blocked protection
- Easily programmed and compatible with pocket-sized program card

ESC Specifications:

Model35A
Cont. Current/Burst Current35A/120A
Motor TypeSensorless Brushless Motor
Suitable  Car1/18, 1/16, 1/14
Suitable Brushless Motor≥12T
Resistance0.003ohm
Battery2-3 cells Lipo
4-9 cells NiMH
BEC Output5V/2A
(analog mode)
Dimension25*30*18.5mm



Package Included:
1 X Motor
1 X ESC
2 X Instruction
