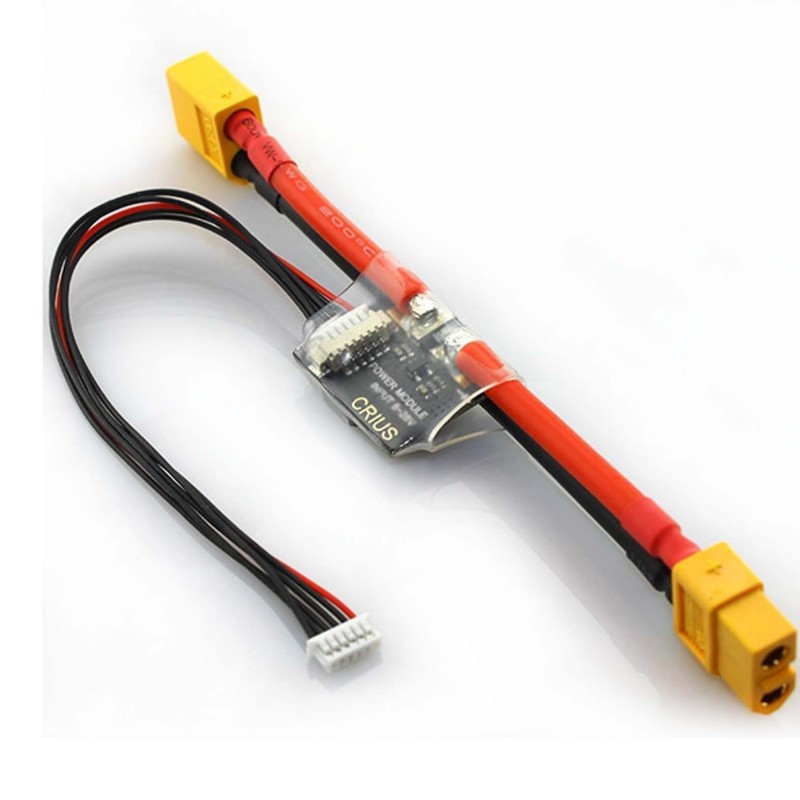

Power Module 28V 90A for Pixhawk & APM Flight Controller

Μεγαλύτερη προβολή

Προηγούμενο

Επόμενο

Power Module 28V 90A for Pixhawk & APM Flight Controller

Αναφορά (SKU): APM-Power-Module

Περισσότερες λεπτομέρειες

Διαθέσιμο

Εκτύπωση

Άλλες πληροφορίες

Package content

·Power Module x 1

Power Module is a simple way of providing your APM/Arduflyer with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6P cable. The on-board switching regulator outputs 5.3V and a maximum of 3A from up to a 7S LiPo battery.

Note: The Power Module is only designed to power APM/Arduflyer, a RC receiver and accessories (GPS, Radio telemetry). It is not designed to power servos. Use your aircraft's own ESC/BEC for that.

Features:

·Input voltage: 6~28V (support 30V)

·Max current sensing: 90A

·Voltage and current measurement configured for 5V ADC

·Switching regulator outputs 5.3V±0.1V and 3A max

·6P molex cable plugs directly to APM/Arduflyer 2.5's 'PM' connector

·Dimension(mm): 25 x 21 x 9

·Weight(g): 17(include all wire)
