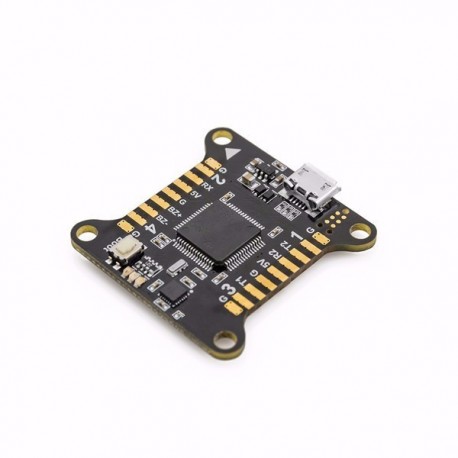

LUX 32-bit Processor Flight Controller Support PPM or Serial Μεγαλύτερη προβολή

LUX 32-bit Processor Flight Controller Support PPM or Serial RX For Multirotor Racing

(SKU): 430902

LUX 32-bit Processor Flight Controller Support PPM or Serial RX For Multirotor Racing

Περισσότερες λεπτομέρειες

Διαθέσιμο

45,00 € με Φ.Π.Α

Άλλες πληροφορίες

LUX 32-bit Processor Flight Controller Support PPM or Serial RX For Multirotor Racing

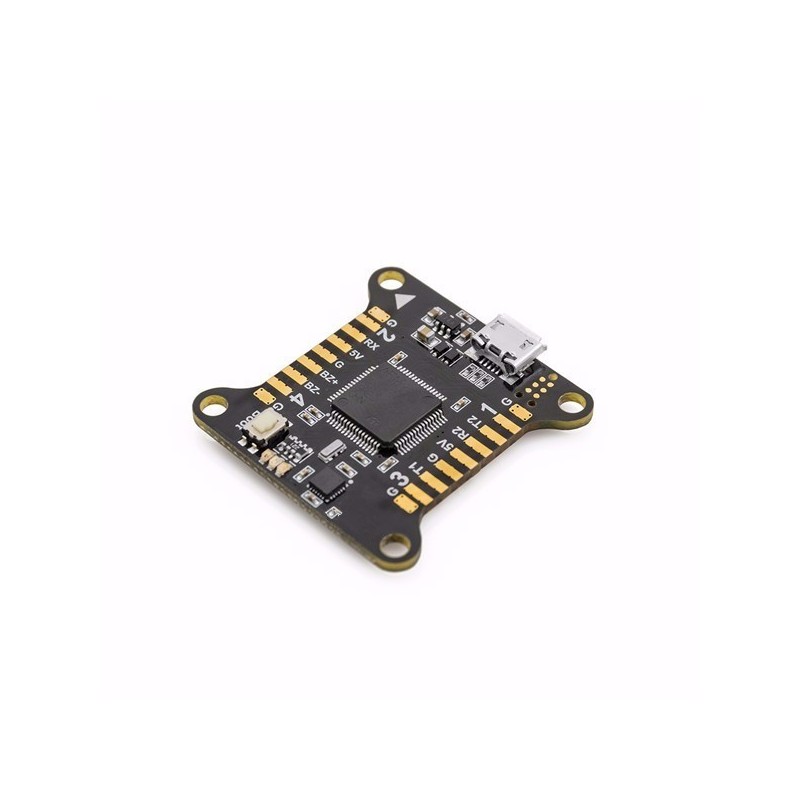

Board Layout:

PinFunction
GGround
2PWM Output (Motor 2)
RXRX Input (PPM,S.BUS, SUMD / 3.3-5v / GND)
5vReceiver Voltage (3.3v-5v)
BZ+Buzzer +
BZ-Buzzer -
4PWM Output (Motor 4)
1PWM Output (Motor 1)
T1/T2/R2UART1 TX, UART2 TX, UART2 RX
5v5v output
3PWM Output (Motor 3)

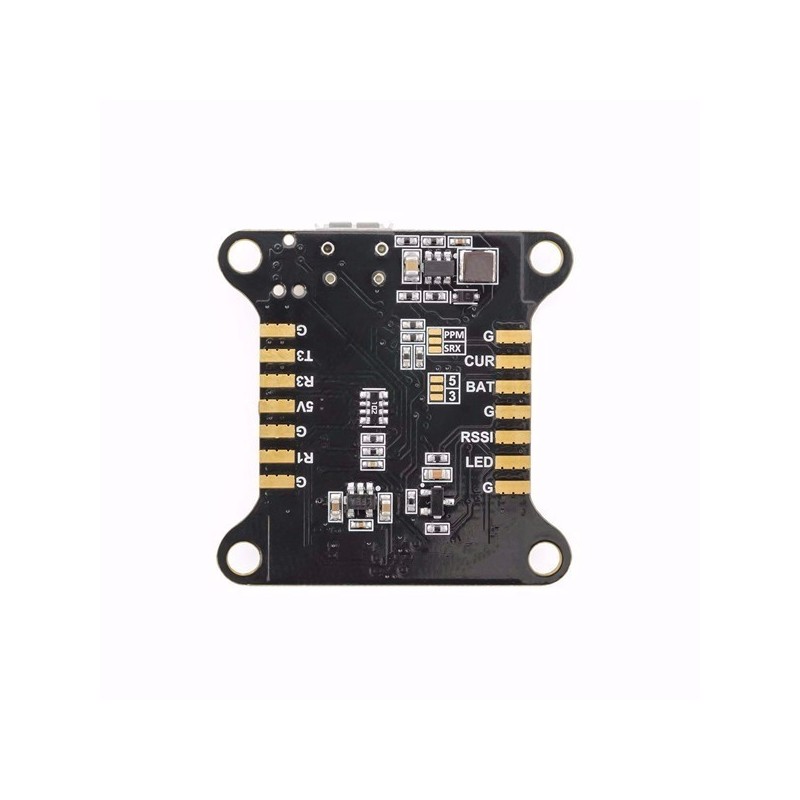

PinFunction
GGround
T3/R3/R1UART3 TX, UART3 RX, UART1 RX
5v5v Output
CURCurrent Sensor
BATInput voltage 6-26v (2-6S lipo)
RSSIRSSI
LEDDigital LED Output
PPM/SRXBridge PPM for PPM. SRX for SBUS, SUMD, other serial connections



Specification:
Item name: Lux Flight Controller

PCB: Have
Weight: 6g
Output: 5v 1.0A
Input: Up to 26v (6S lipo)
RX Voltage Output Selectable: 3v/5v
Gyro/accelerometer: MPU6500  MEMS
Processor: STM32F303RCT6(256kB flash) 32-bit
Mode for bootloader + software: STM32 DFU
Dimensions: 36x36x6mm (includes USB in height)
Mounting Holes: 30.5mm square to center of holes

Feature:
1. Highest quality components
2. Micro USB connector for programming
3. Provides high quality flight control using the powerful F3 processor along with top of the line hardware
4. Supports PPM or Serial RX (including Futaba, FrSky, S.BUS). A signal inverter is already included for S.BUS.
Please note: Baseflight firmware is not supported, and PWM input for individual channels is not supported.

Package included:
1x Lux Flight Controller
2x 2x7 Straight Pin Headers
