> >>RacerCube Integrated F3 EVO 4 In 1 20A F396 ESC Frsky 8CH PPM/SBUS Receiver for X Racing Frame

Flight Controller

Κατασκευαστές

Πληροφορίες

RacerCube Integrated F3 EVO 4 In 1 20A F396 ESC Frsky 8CH PPM/SBUS Receiver for X Racing Frame Μεγαλύτερη προβολή
Προηγούμενο Επόμενο

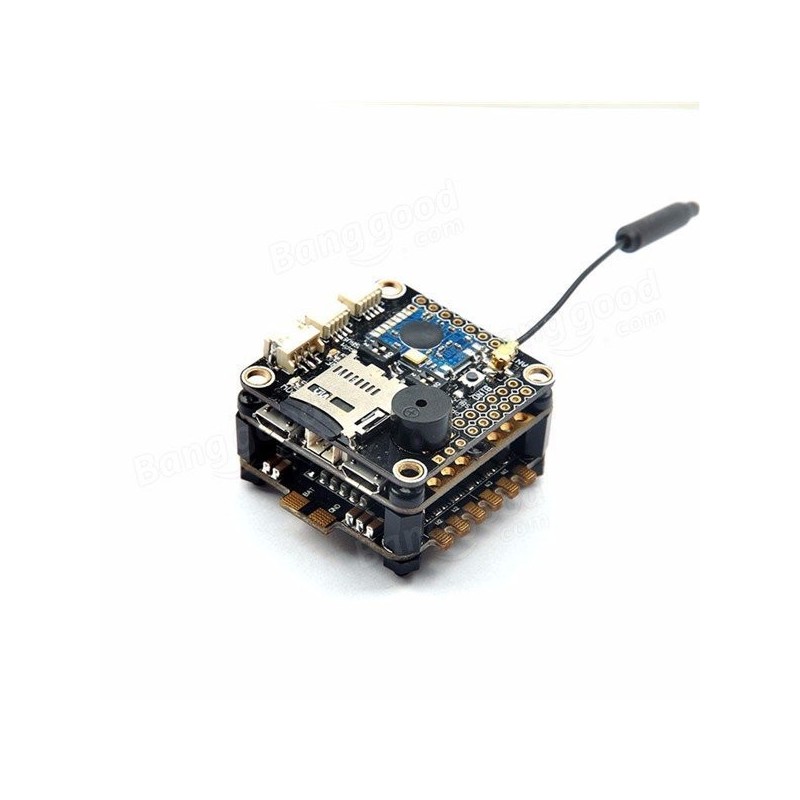

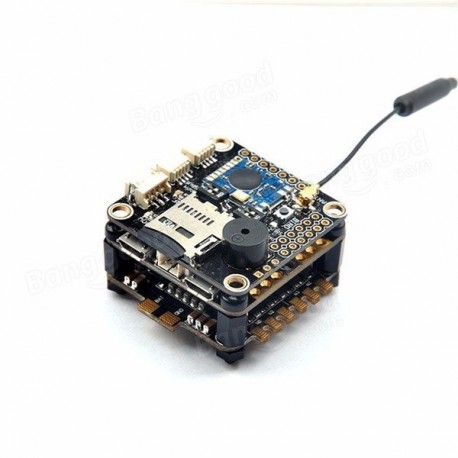

RacerCube Integrated F3 EVO 4 In 1 20A F396 ESC Frsky 8CH PPM/SBUS Receiver for X Racing Frame

(SKU): 507408

RacerCube Integrated F3 EVO 4 In 1 20A F396 ESC Frsky 8CH PPM/SBUS Receiver for X Racing Frame

Περισσότερες λεπτομέρειες

Διαθέσιμο

120,00 € με Φ.Π.Α

Άλλες πληροφορίες

Specification:

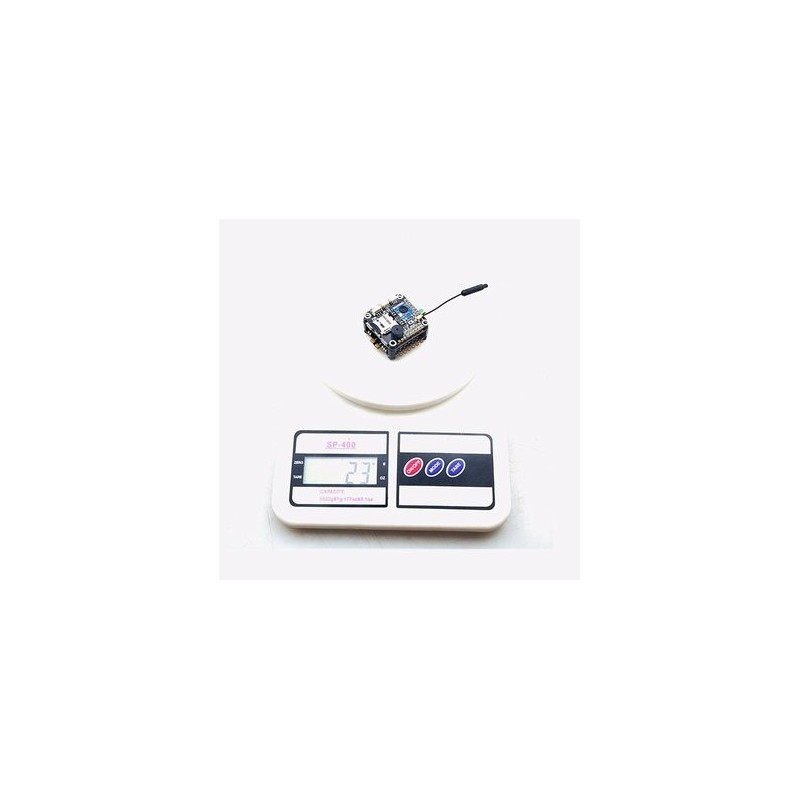

Weight: 23 g

Size: 36mm * 36mm * 25mm
Installation hole distance: 30.5mm * 30.5mm
NameSpecification
F3 EVO Flight ControlIntegrated MWOSD and PCB board
Firmware: Cleanflight 1.13.0
Target: SP RACING F3 EVO
STM32F303 CPU, 72Mhz inc FPU
MPU9250 accelerometer/gyro/compass (connected via SPI)
BMP280 barometer
Compatible PPM/CPPM/SBUS/DSM2/DSMX Receiver
Integrate PDB support 2s-6s Input
Frsky ReceiverIntegrated F3 Flight Control BLACKBOX Functionality and External Expansion Interface
Channel: 8
Working voltage: 4-6.5V
Frequency range: 2400-2483.5Mhz
Output signal: SBUS/PPM
Dual way transmission: Yes(D8 mode)
Transmit distance: > 1Km
Feedback signal: RSSI, 3S voltage (A1)
With Failsafe @Throttle 3ch
Compatible with X9D(D8 mode)/XJT (D8 mode)/DJI/DFT/DHT
Racercube LittleBee ESC4IN1 20A*4
F396 MCU, 48Mhz Runs BLHELI LittieBee Pro 20A firmware
Support 3-6S Li-po
4PWM input,
Supports oneshot PWM
Only 35x35mm, mount holes 30x30mm (on new batch, the holes will bechanged to 30.5x30.5mm)
Supports damped light
no BEC output



Suitable for 120-330 wheelbase multirotor frame kit, especially for X and Monster DIY frame kit

Features:
1. Buzzer ready
2. RSSI/ VOLTAGE DETECOTR Ready
3. Ultra-light integration suite,PNP, do not need cumbersome wiring
4. F3_EVO FLIGHT CONTROLLER Jaw-Dropping Flight Performance
5. STM32F3 chip F3 EVO flight control, support CLEANFLIGHT / BETAFLIGHT program
6. Built-in MWOSD, aircraft real-time data status real-time back to the FPV display or GOGGLES
7. Built-in SD card, integrated CLEANFLIGHT BLACKBOX function, PID adjustment more at a glance
8. Integrated FRSKY compatible 8-channel SBUS / PPM two-way receiver, FRSKY Taranis X9D and DJT / DFT / XJT tuner directly on the frequency can be used
9. 4IN1 ESC Little BEE 20A F396 Chip ESC Ready, BLHELI Pass-through Ready.
Based on high-quality F396 MCU ESC, support Oneshot125 / Multishot, support Damped Light function, can be directly configured by CLEANFLIGHT



Package included:

1 x F3 EVO Flight Control
1 x Frsky Receiver
1 x Racercube 4IN1 LittleBee ESC
