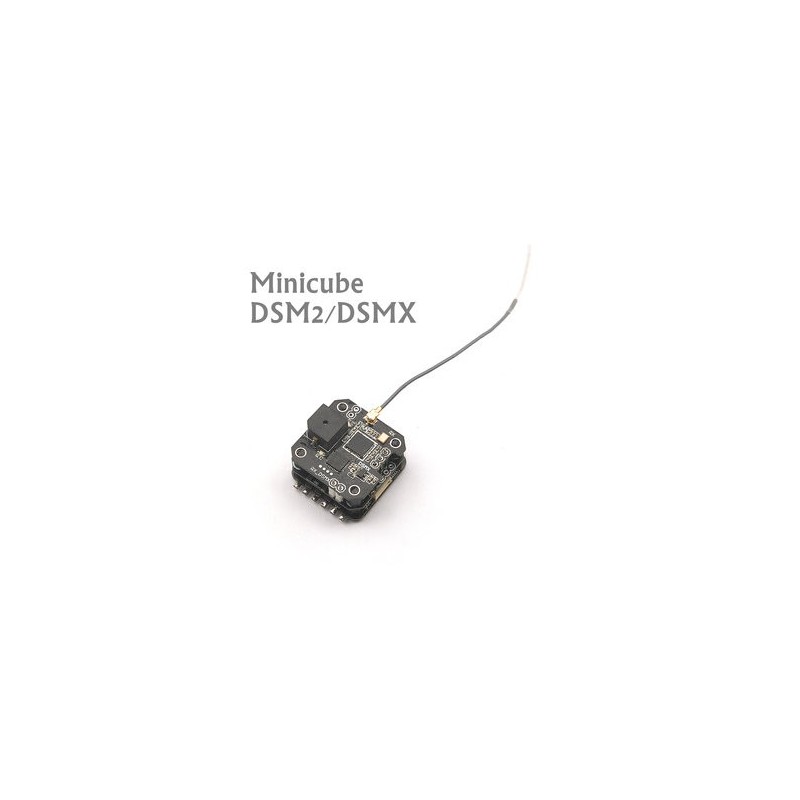

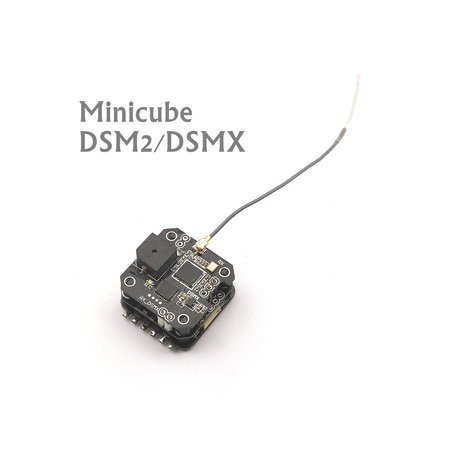

Eachine Minicube 20x20mm Flytower Compatible DSM2/ DSMX Receiver F3 Blheli_S 10A ESC Μεγαλύτερη προβολή

Eachine Minicube 20x20mm Flytower Compatible DSM2/ DSMX Receiver F3 Blheli_S 10A ESC

(SKU): Minicube-DSM

Eachine Minicube 20x20mm Flytower Compatible DSM2/ DSMX Receiver F3 Blheli_S 10A ESC

Περισσότερες λεπτομέρειες

Διαθέσιμο

90,00 € με Φ.Π.Α

Άλλες πληροφορίες

Eachine Minicube 20x20mm Flytower Compatible Frsky Flysky DSM2/ DSMX Receiver F3 Blheli_S 10A ESC


Description:
Brand name: Eachine
Mount hole: 20mm*20mm
Size: 27mm*27mm*20mm
Weight: 9.4g

1. Eachine Minicube Receiver
1). Eachine Minicube DSM2/ DSMX satellite Receiver
Frequency range: 2.403-2.479Ghz
Input power: 5V
Response time: 22ms / 11MS
Resolution: 2048
Display method: LED
Operating voltage: 3.3V
Working current: 60MA
Size: 27mm*27mm*7mm
Mount hole:20mm*20mm
Weight: 3.1 g
Antenna length: 100mm
Data format: Serial port
Protoco: DSM2/DSMX
Distance: no ground interference (1 m from the ground ) > 300m
Uses: indoor small aircraft.
Compatible Transmitters: DSM2 / DSMX series of remote control
Built-in Buzzer (Low voltage alarm) Configure by Betaflight configurator



2. Eachine Minicube F3 6DOF Flight Controller:
Size: 27mm*27mm*5mm
Mount hole: 20mm*20mm
Processor: STM32 F303 MCU
Sensor: SPI Sensor MPU6000
Built-in Betaflight OSD ( Batt voltage, RSSI , Artificial Horizon , Fly mode , -Flytime, Craft name etz.)
Firmware version: Betaflight 3.1 Dshot ready
Target: OmnibusF3

3. Eachine Minicube 10A BLHeli_S 4 In 1 ESC:
Size: 27mm*27mm*5mm
Mount hole: 20mm*20mm
Firmware version: BLHELI_S 16.5
BB2, 48MHZ Chip
Lipo Battery: 2-3S
Con. Current: 10A
Peak Current: 15A (10S)
BEC: 5V @0.1A
Programming: YES
Betaflight passtrough ready
Dshot600 ready(Default)
Support oneshot42 oneshot125 Multishot Dshot
Damped light on

Features:
STM32 F303MCU + BLHELI_S ESC make your Operating feel more stabilly and silky
Jaw-dropping flight performance
LED_STRIP solder pin
BUZZER Ready
Betaflight support
Acro mode / Air mode /Angle mode support
Built-in OSD(Using F3 MCU controls OSD over SPI bus in DMA mode)
OSD Configuration has been include in BETAFLIGHT GUI
Radio Stick to control PID Tunes

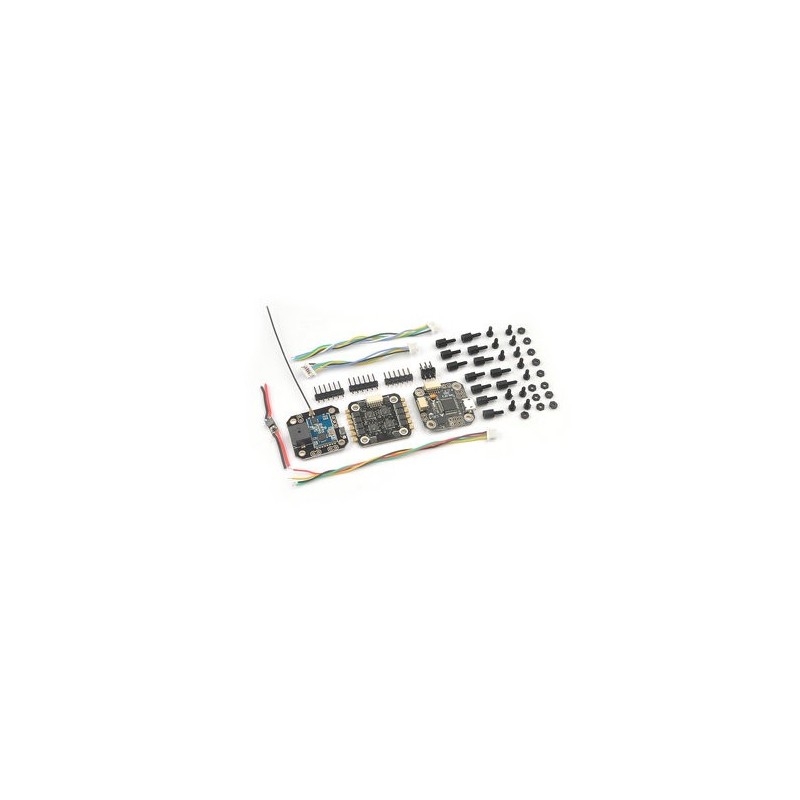

Package included:
1 x Minicube Receiver
1 x Minicube F3 6DOF Flight Controller
1 x Minicube 10A BLHeli_S 4 In 1 ESC
