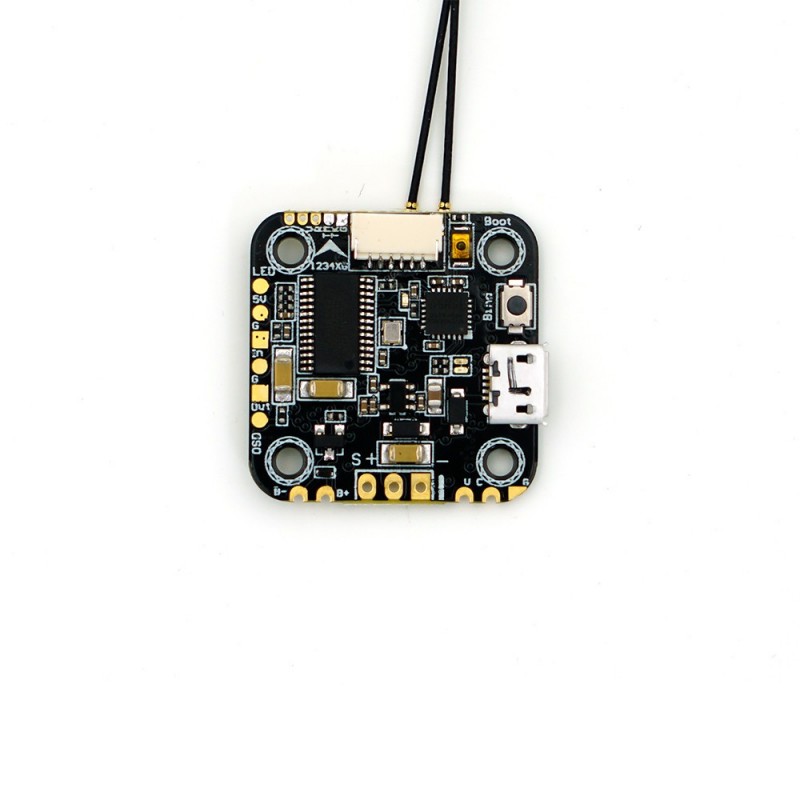

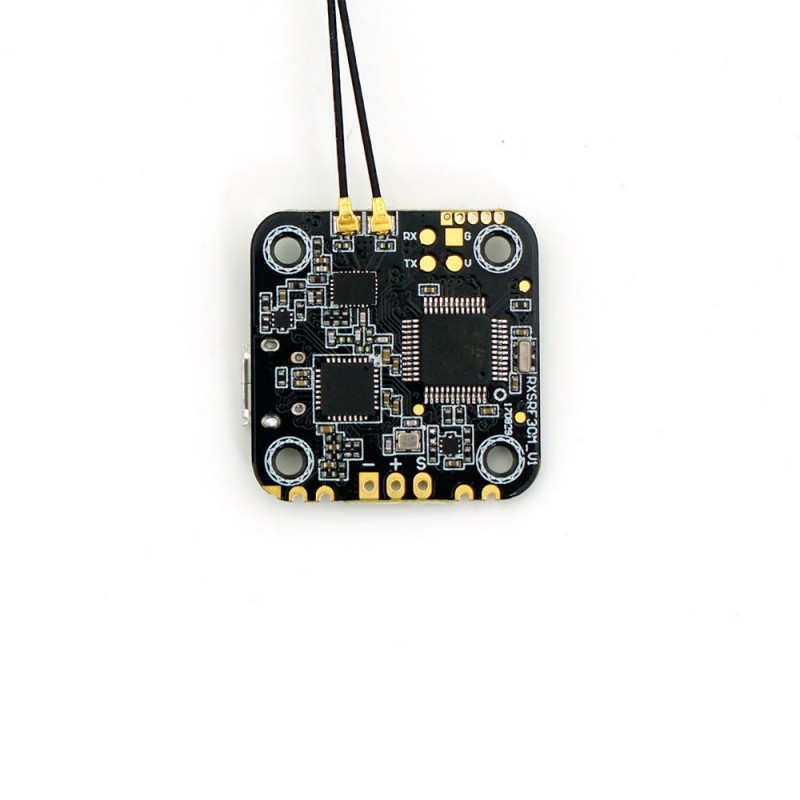

20x20mm Frsky RXSRF3OM F3 Flight Controller Built-in R-XSR receiver module for FPV RC Drone






Overview(manual):
Good things do come in small packages. Like FrSky’s latest flight controller. With a built-in R-XSR receiver
and 20mm x 20mm mounting holes makes it perfect for a clutter free micro quadcopter build. The RXSRF3OM
is Betaflight OSD integrated and Smart Port enabled, which means it supports full telemetry.

Specification:
Brand name: FrSky
Item name: RXSRF3OM flight controller
Dimension: 27.4×27.4×5.6mm (L×W×H)
20mm mounting hole spacing
2.5mm mounting hole diameter
Weight: 4.5g
Operating Voltage: DC 3.5~12V
Operating Current: 150mA@5V
Channels: 16CH SBUS output (CH8 is RSSI output)
Hardware: STM32F303 CPU
                  MPU6050 (Accelerometer/Gyro)
                  R-XSR receiver module

Features:
-Smart Port enabled
-OSD configuration supported
-Built-in accelerometer and gyro
-Built-in F3 and R-XSR receiver module

Package inclued:
1x RXSRF3OM flight controller
