Flysky FGr4S Built-in Single-Antenna Bidirectional PPM/IBUS Output Receiver for NB4 PL18 FPV Racing Drone RC Quadcopter RC Parts

Μεγαλύτερη προβολή

Προηγούμενο

Επόμενο

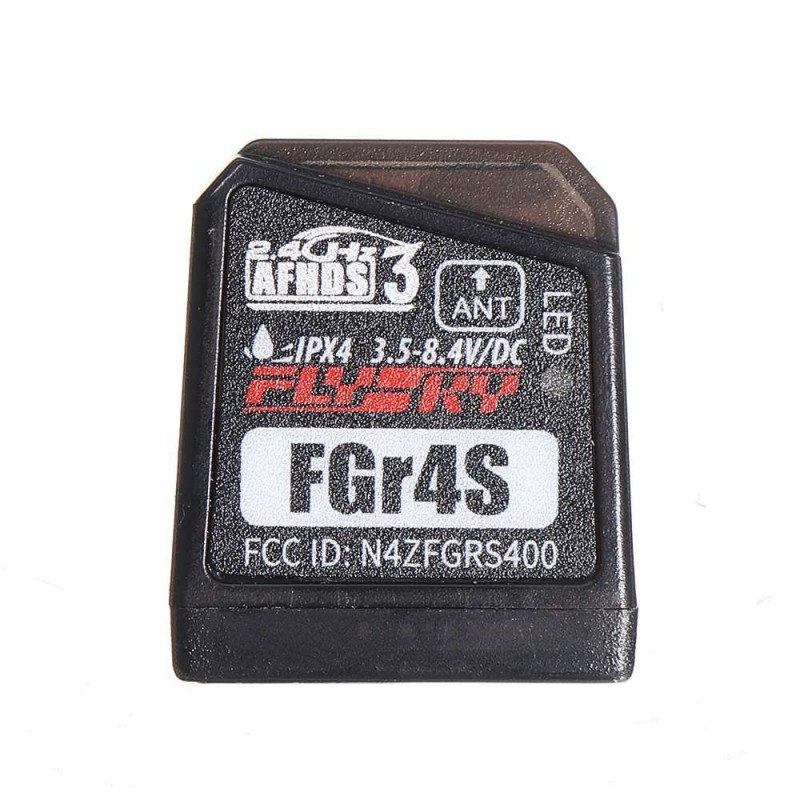

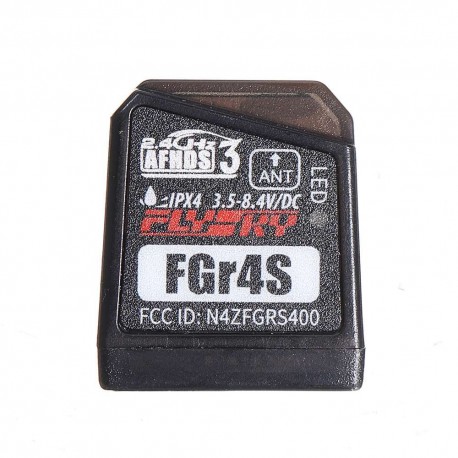

Flysky FGr4S Built-in Single-Antenna Bidirectional PPM/IBUS Output Receiver for NB4 PL18 FPV Racing Drone RC Quadcopter RC Parts

Αναφορά (SKU): E28961/FS-FGR4S

Περισσότερες λεπτομέρειες

Διαθέσιμο

Εκτύπωση

Άλλες πληροφορίες

Description:

The fgr4 S uses afhds3( Third Generation Automatic Frequency Hopping Digital System). It uses a internal single antenna with twoway transmission capabilities and is designed to be compact and

easy to install, It can output standard PWM, i-BUS and PPM

Item Brand:Flysky
Item Number:FGr4S
Item Name:Receiver
Material:Plastic and electronic components
Color:
Product Size:25.5 22*17.3 mm
Product Weight:About 5.1g
Packaging Weight:Approx.8g
Fit For:Flysky NB4 and PL18 transmitter

Specification:

Channels:4

Model Type: Car/Boat

Data Output: PWM/i-BUS/PPM

Frequency Range: 2.402-2.480GHZ

Transmission Power: <20dBm(EU)

RF Standard: AFHDS3

Antenna: Built-in Antenna

Input Power: 3.5V 8.4V

Display: LED Indicato

Online Update: Yes

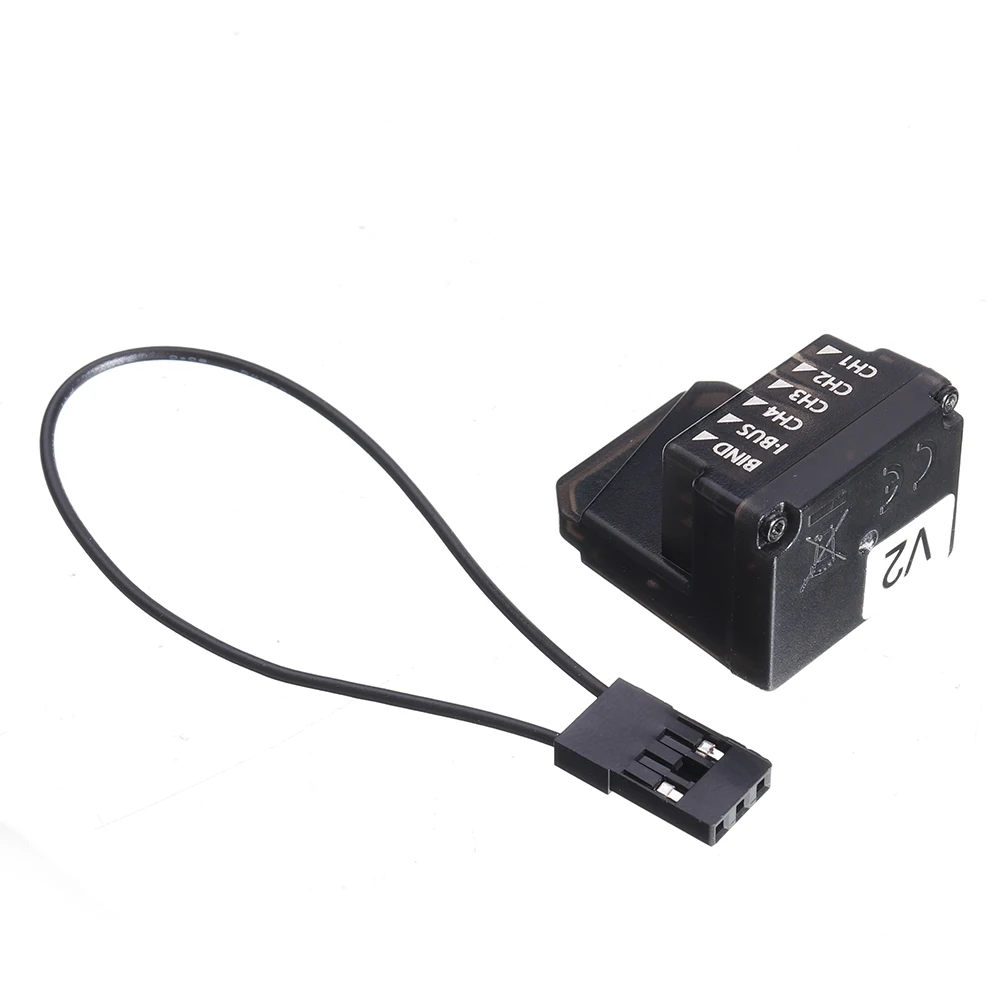

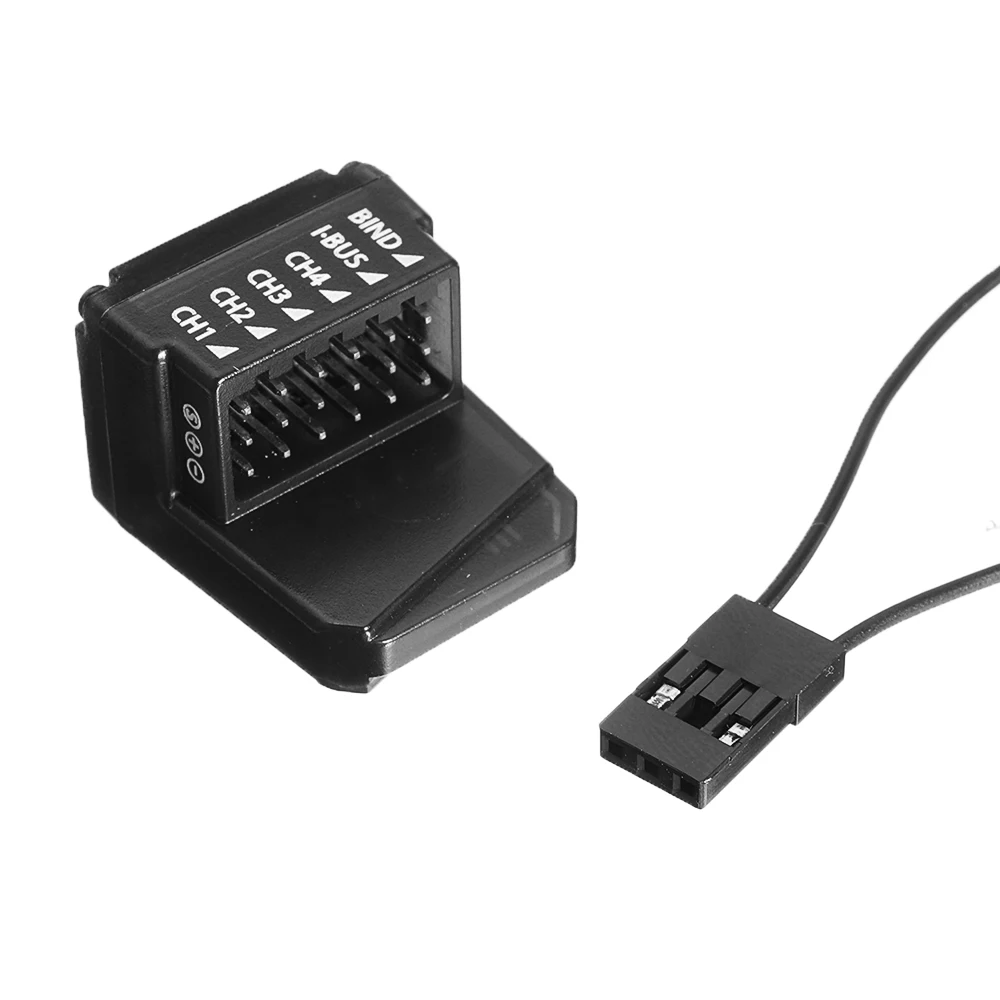

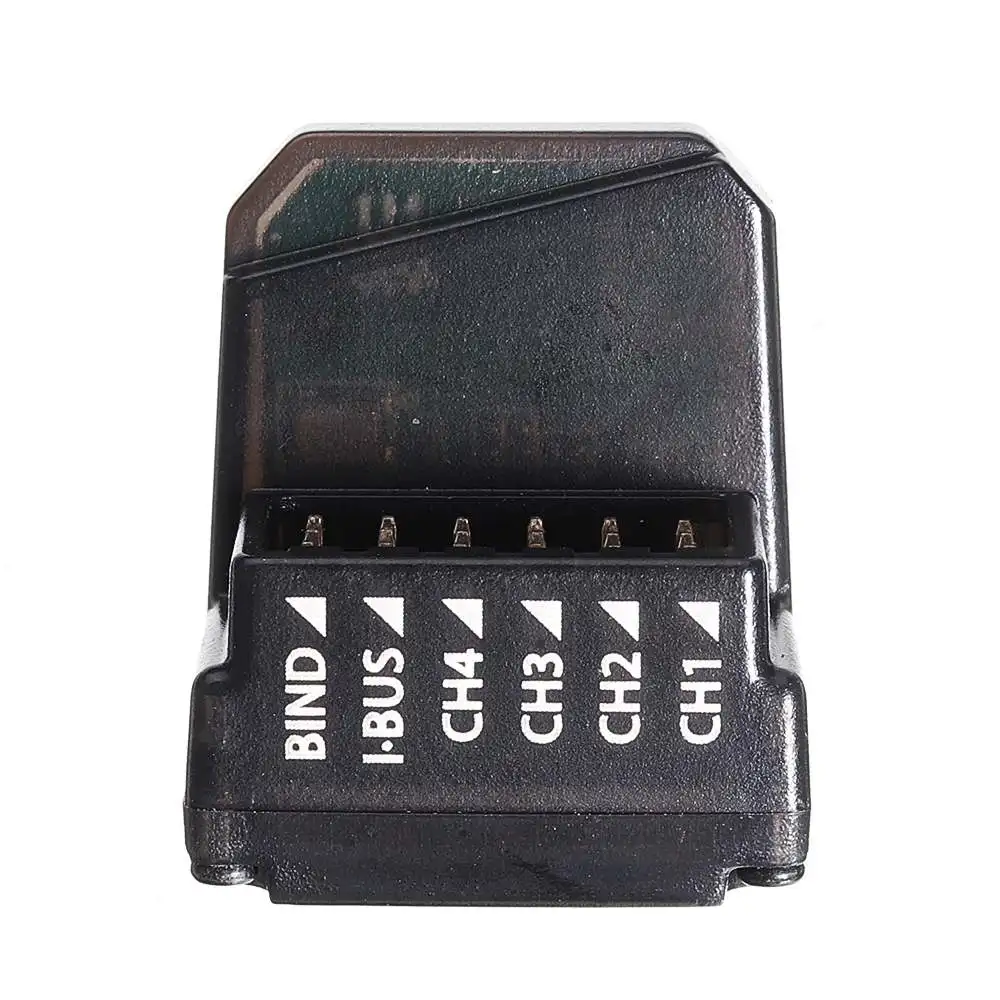

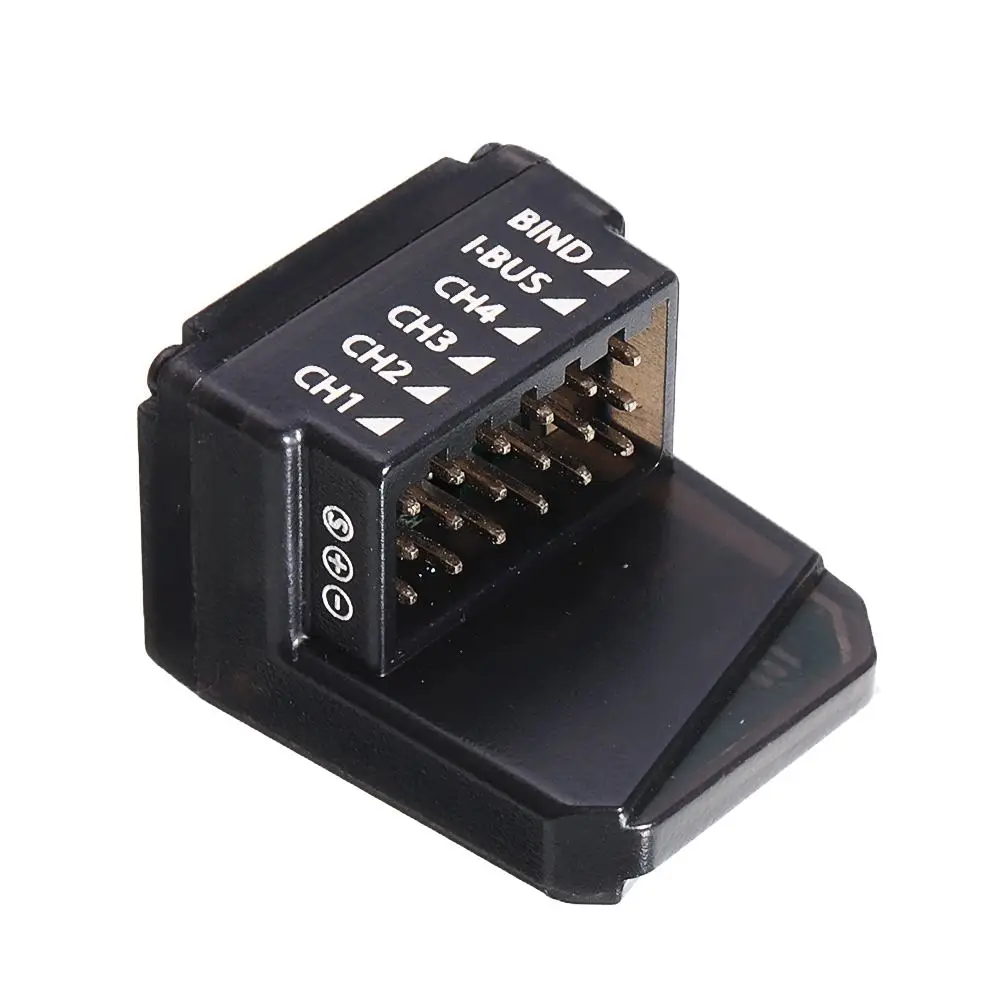

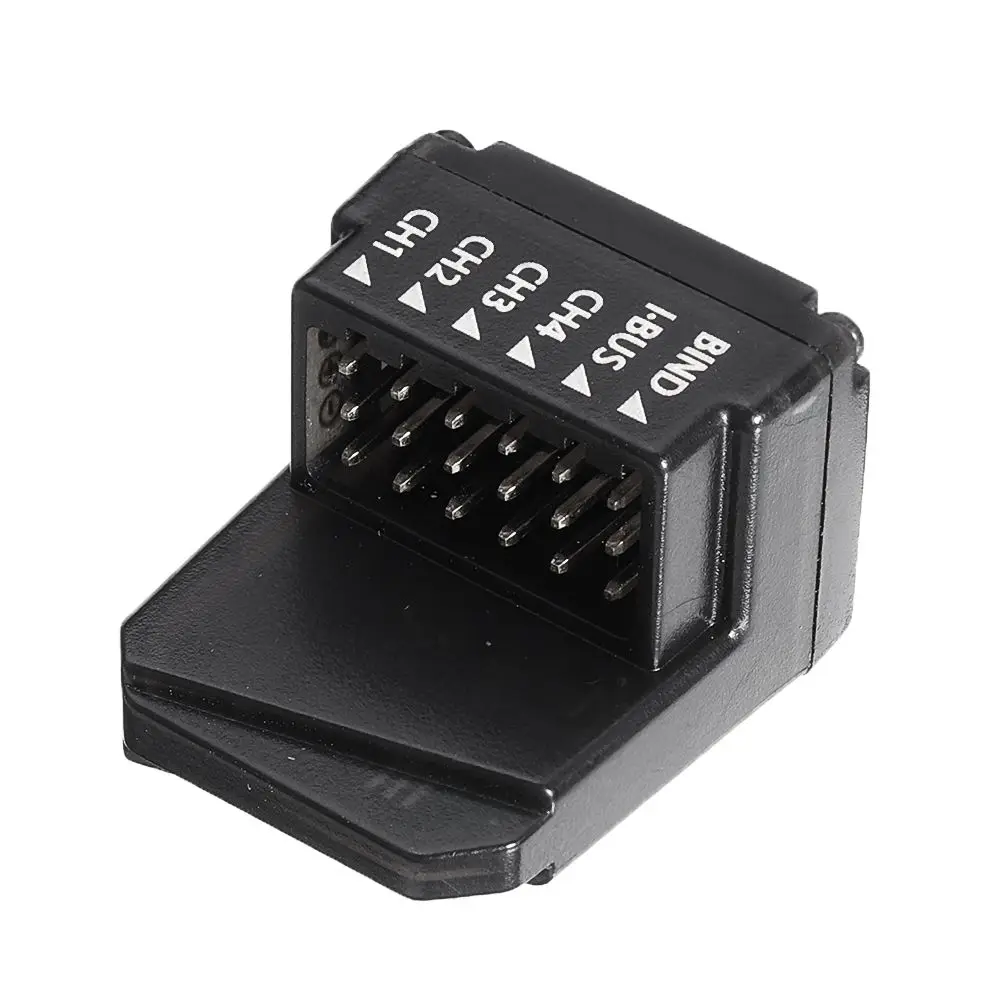

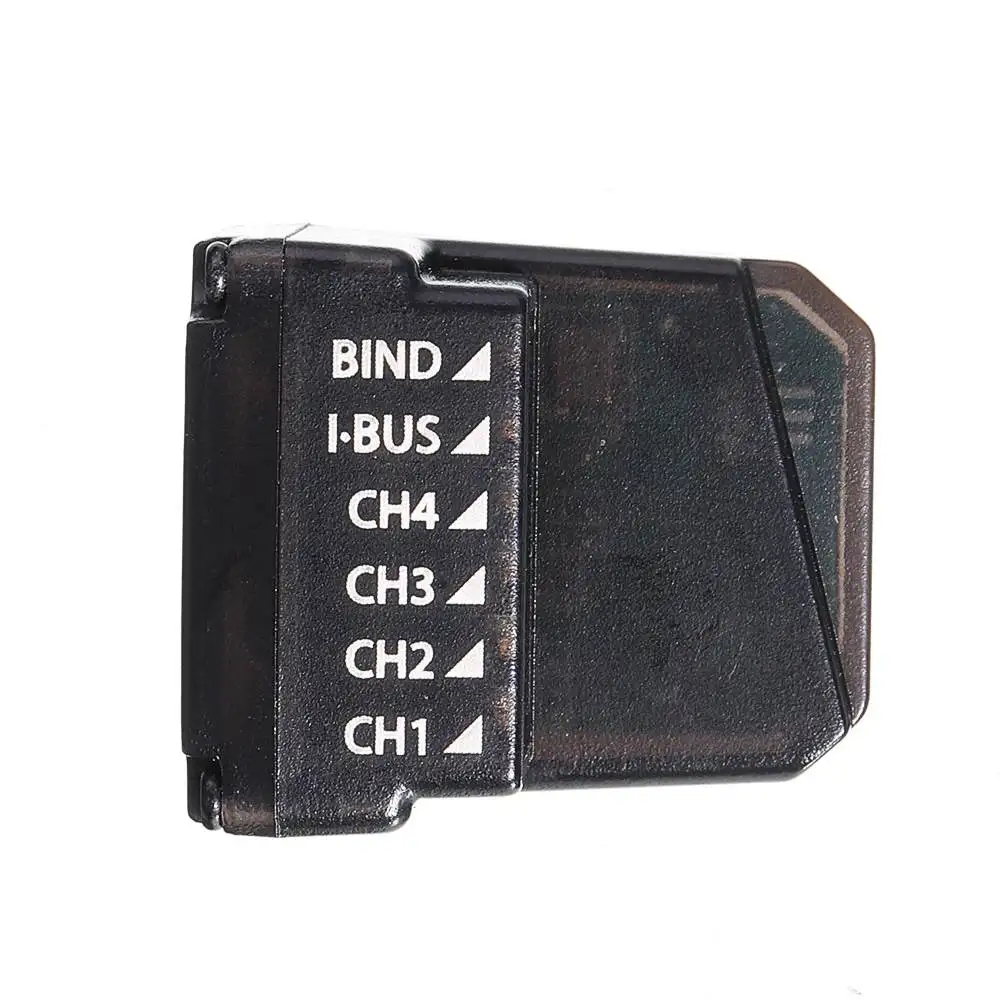

CH 1-CH 4: Connects the servos, power supply

other components

i-BUS: for channel expansion

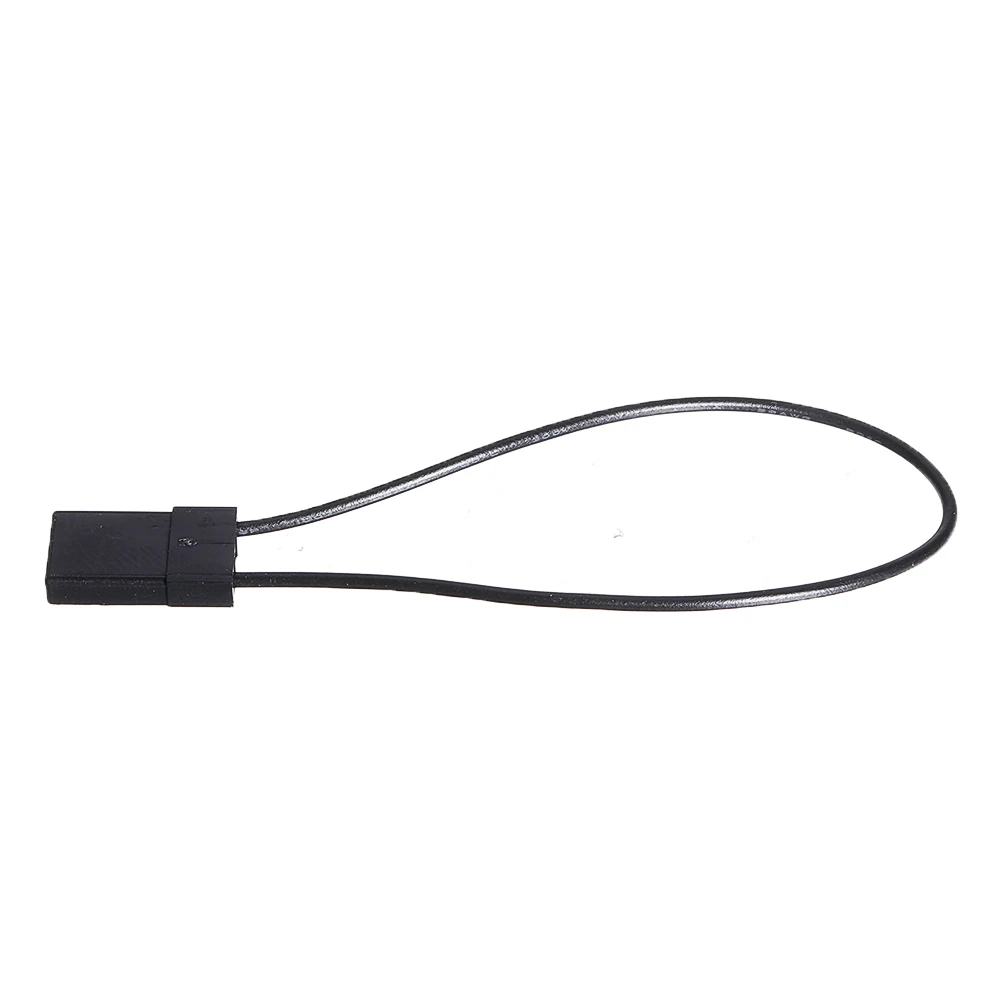

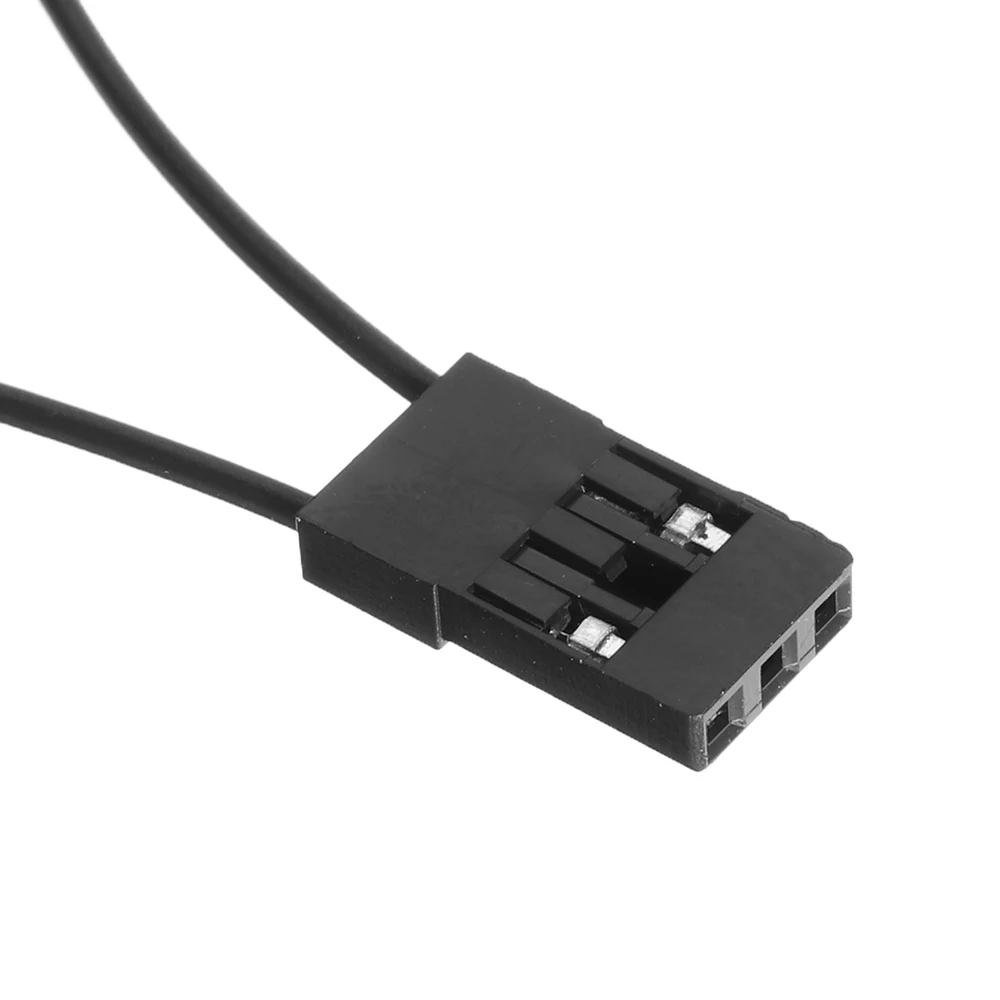

BIND: For bind cable

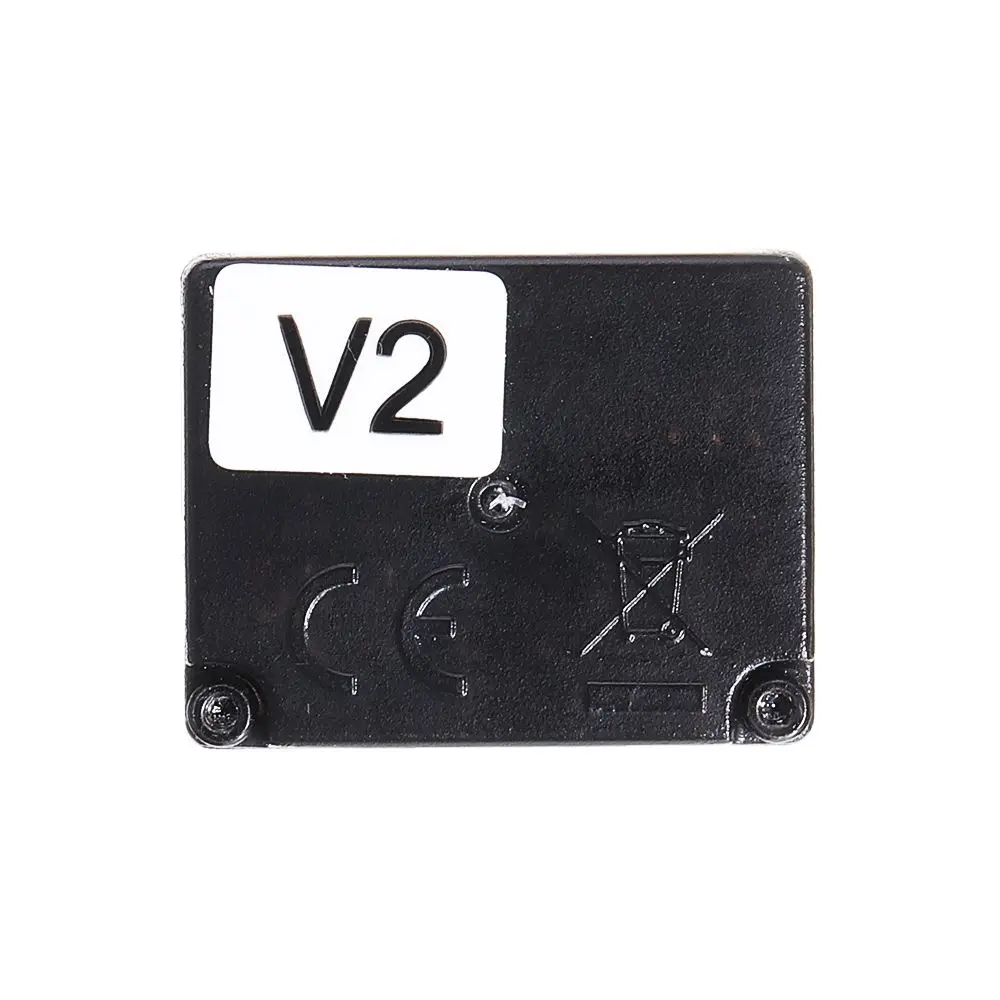

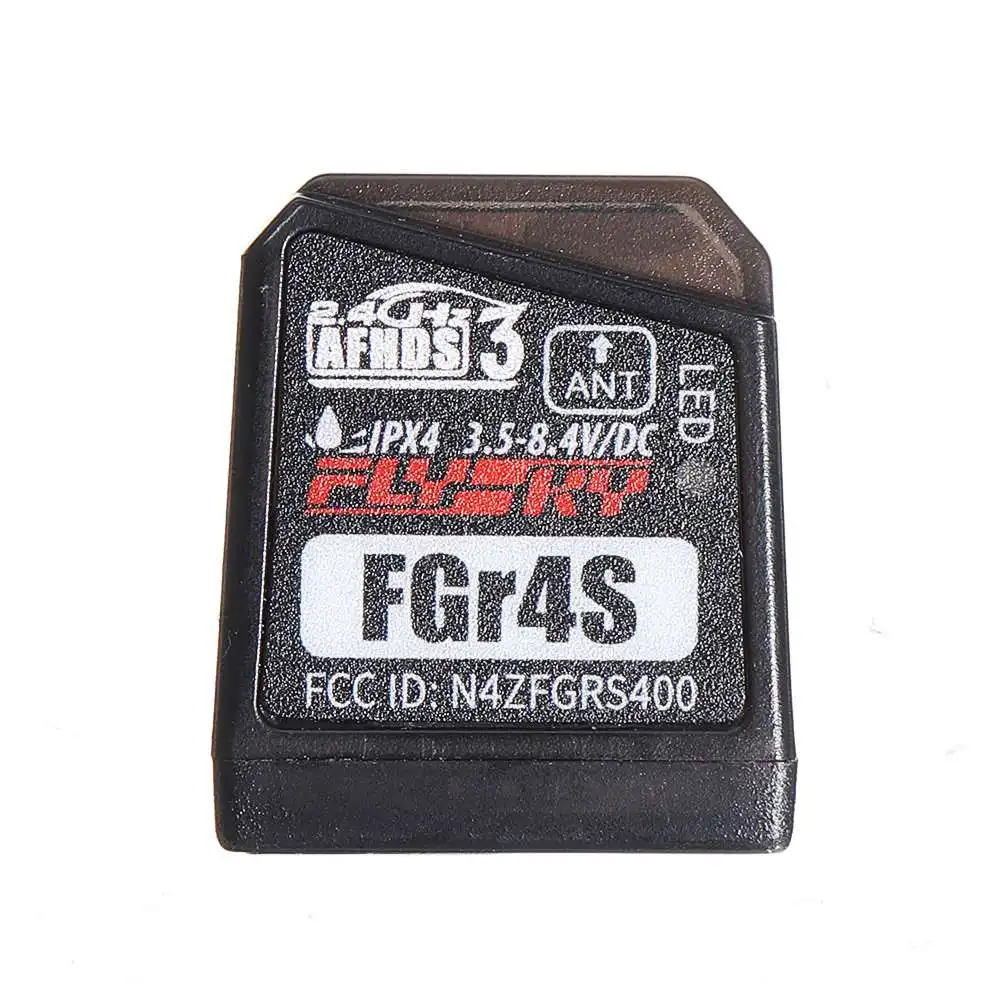

Certification: CE, FCC ID: N4ZFGRS400

Binding:

To ensure good signal strength, make sure the receiver antenna is as far away from any metal parts when installing the receiver

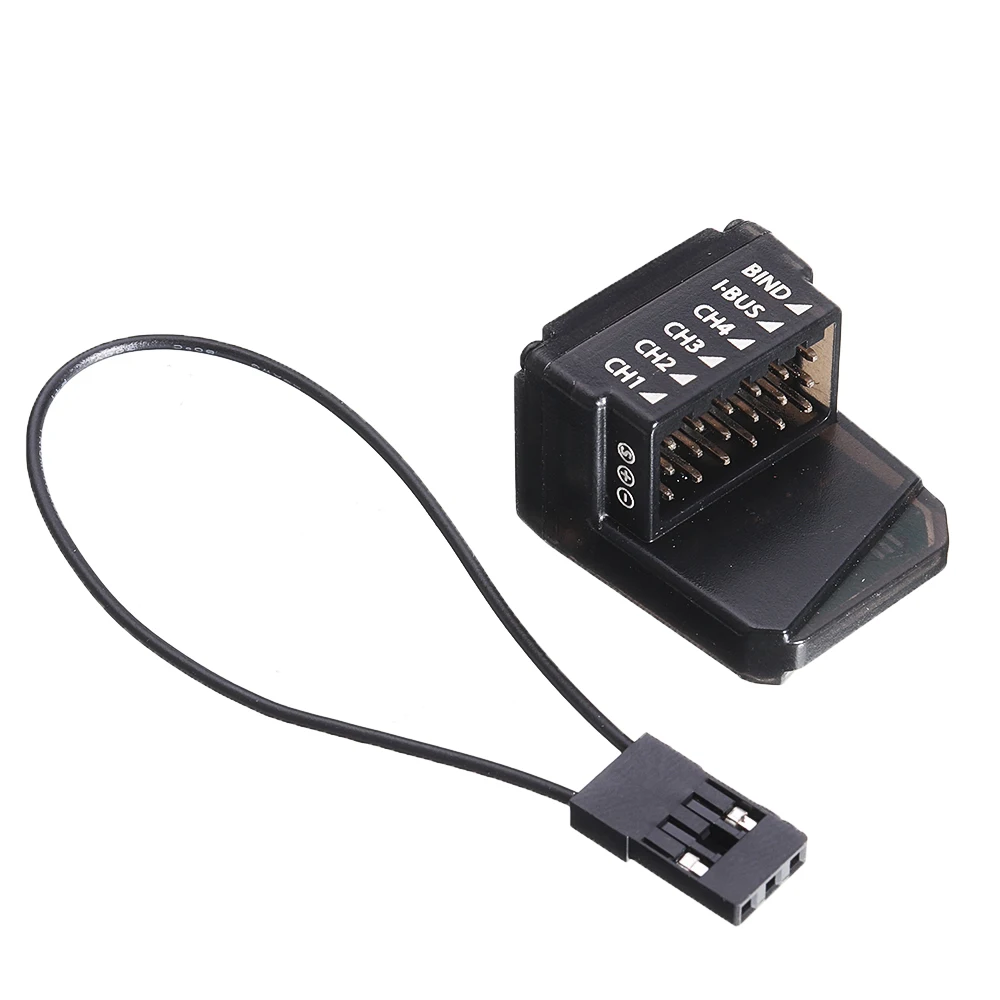

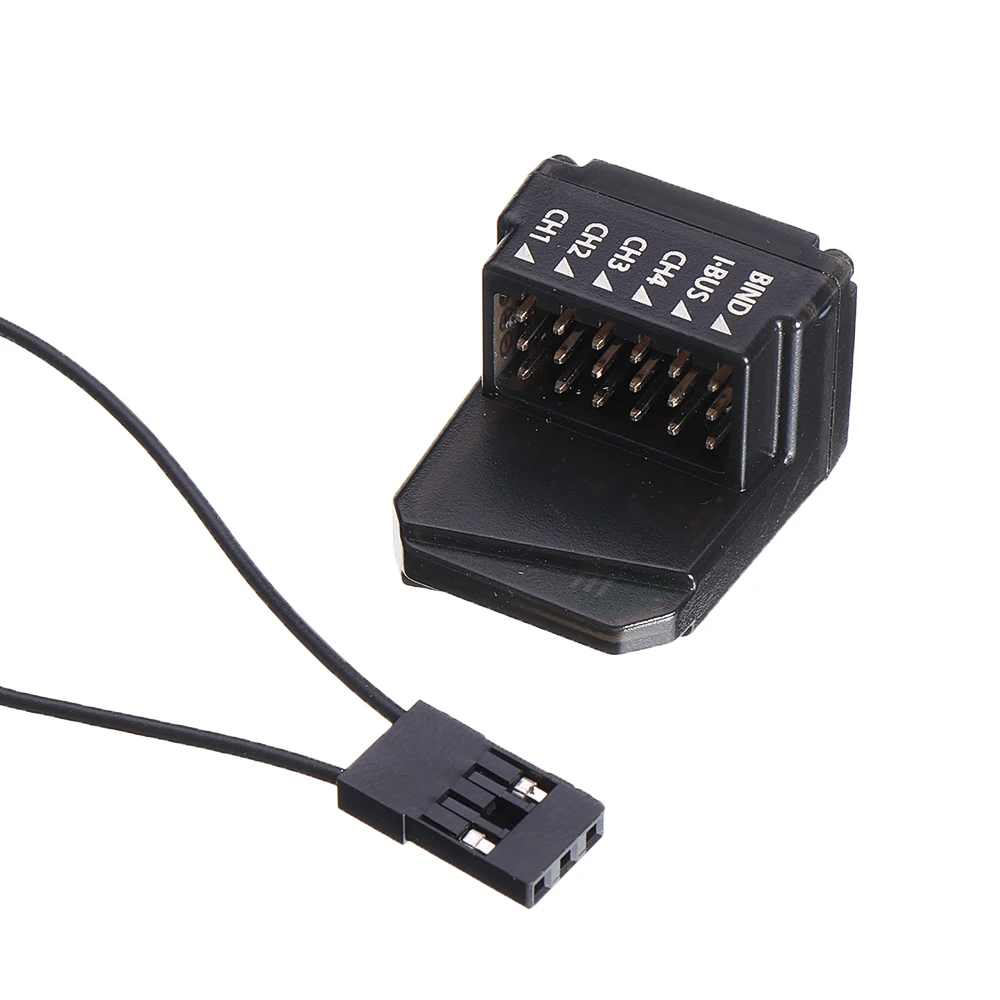

1. Insert the bind cable into the receivers BIND port;

2. Plug the power cable into any other port, and the the receiver's LED will start to flash quickly indicating that it has entered bind mode

3. Put the transmitter into bind mode; (See the transmitter's instruction manual for more information

4. Binding is successful when the receiver's LED starts to flash slowly. Remove the power and bind cables from the receiver

.If the transmitter is bidirectional the reciever status indicator

will not fash slowly

5. Reconnect the power cable to the receiver

6. Check to make sure that the transmitter and receiver are working as expected, if there are any issues or unexpected operation follow the steps above to bind again

Package included:
1X Receiver
