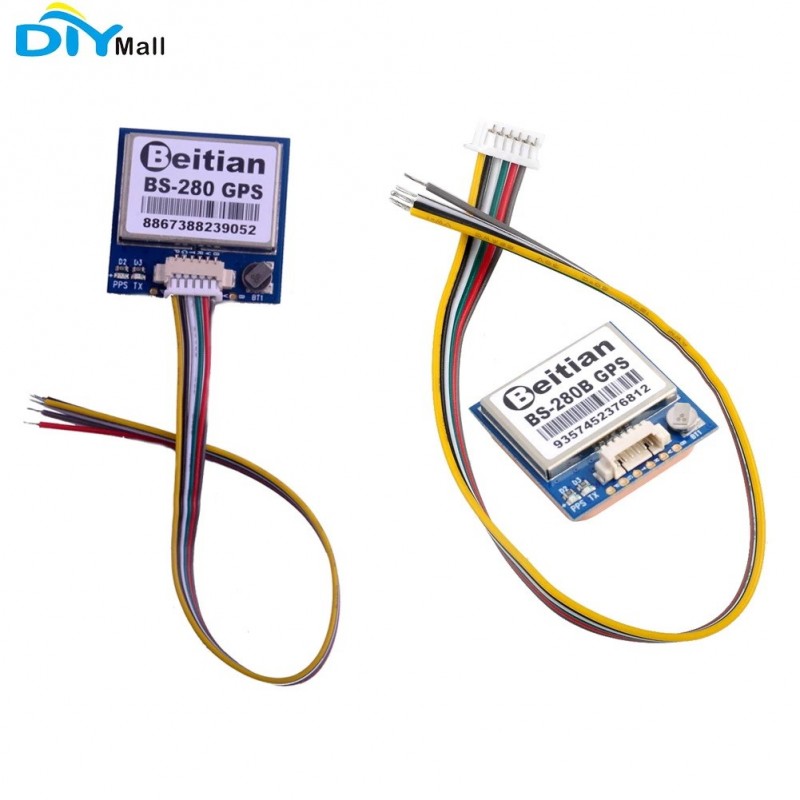

Beitian BS-280 BS-280B GPS Receiver Module Glonass BeiDou UART TTL RS232 Level with Flash

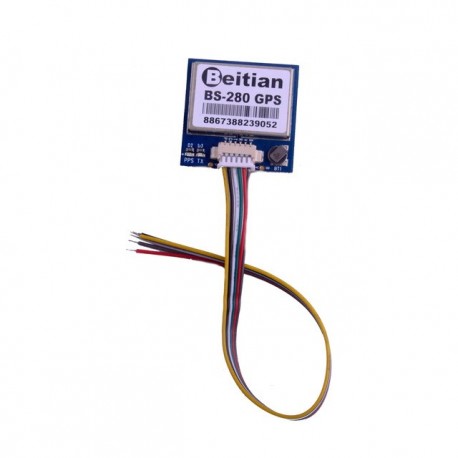

Beitian BS-280 232 GPS Receiver Module 1PPS Timing With Flash + GPS Antenna

Περισσότερες λεπτομέρειες

Διαθέσιμο

33,00 € με Φ.Π.Α

Άλλες πληροφορίες

S28e35428406148718f470415b5d9d578j.jpg Beitian BS-280 BS-280B GPS Receiver Module  Glonass BeiDou UART TTL RS232 Level with Flash + GPS Antenna for Pixhawk APM


Description:
BS - 280 module, integrated with internal FLASH, can save the data configuration, you can change the baud rate, output frequency, output protocol, can save the configuration, power is not lost.
1. The module adopts built-in active 28 secondary db gain amplifier active antenna, high signal, high precision.
2. The level of optional, TTL, RS232.


Feaures:
Receiving Format: GPS,QZSS and SBAS
Frequency: GPS L1,SBAS L1
Channels: 56 Searching Channel
Tracking: -162dBm
Reacquisition: -160dBm
Cold start: -148dBm
Position Horizontal: 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Velocity: 0.1m/sec 95% (SA off)
Timing: 1us synchronized to GPS time
Cold Start: 29s
Warm Start: 25s
Hot Start: 1S
Support Rate: 4800bps to 921600bps,Default 9600bps
Data Protocol: NMEA-0183 or UBX, Default NMEA-0183
Concurrent GNSS: 1Hz-10Hz,Default 1Hz
Altitude: 50,000m Max
Velocity: 515m/s Max
Acceleration: Less than 4g
VCC: DC Voltage 3.6V-5.5V,Typical: 5.0V
Current: Capture 65mA 5.0V
Dimension: 28mm*28mm*10mm
Connector: 1.25mm spacing between the 6pins patch seat
Built-in LED:
TX LED: blue.The data output, TX LED flashing
PPS LED: red.PPS LED not bright when GPS not fixed, flashing when fixed


Package Includes:
1 X BS-280 GPS Module ( TTL Level )
1 X Cable

Or
1 X BS-280B GPS Module ( RS232 Level )
1 X Cable
