Overview

The module adopts UBX G7020-KT positioning chip,which can receive satellite signals with 56 channels; low power consumption; high-sensitivity G-MOUSE can be used in cities, canyons, under elevated and other places with weak signals, as well as anywhere in the car. Accurate positioning. The module can be widely used in vehicle monitoring, bus station announcement, vehicle navigation, ship navigation, notebook navigation and other products.

Highlights:
■ Product main chip: UBX G7020-KT
■ Product size: 28x 28 x 8.5 mm
■ Built-in LNA signal amplifier
■ Built-in 4M Flash
■ Industry standard 25 x 25 x 4mm high sensitivity ceramic antenna
■ 1-10Hz positioning update rate

Product features

Chipset：UBX G7020-KT
Support Frequency：L1
GNSS:GPS/QZSS、GLONASS,SBAS
Configure：Default GPS+QZSS
Channels：56CH
Horizontal Accuracy：2.5m CEP 2D RMS SBAS Enable (Typical Open Sky)
Time Precision：30ns
Speed Accuracy：0.1m/sec 95% (SA off)
Tracking ：-166dBm
Reacquisition：-160dBm
Cold start：-149dBm
Hot Start：29s
Cold Start：1s
Support Rate：4800bps-115200bps，Default
9600bps
UART：UART TTL
Data Protocol：NMEA-0183
NMEA Message：GGA, GLL, GSA, GSV, RMC, VTG
Update Rate：Max10HZ,Default1HZ
Flash：4M Flash,Customizable configuration
Altitude：＜50000m
Velocity：＜515m/s
Acceleration：＜4G
Voltage：DC3.0V-5.5V,Typical:5.0V
Current：30mA/5V
Product Size：28mm*28mm*8.5mm
Antenna Size：25mm*25mm
Weight：13g
Connector：1.25mm 6pins
Operating Temp：-45℃-+85℃
Storage Temp：-45℃-+105℃

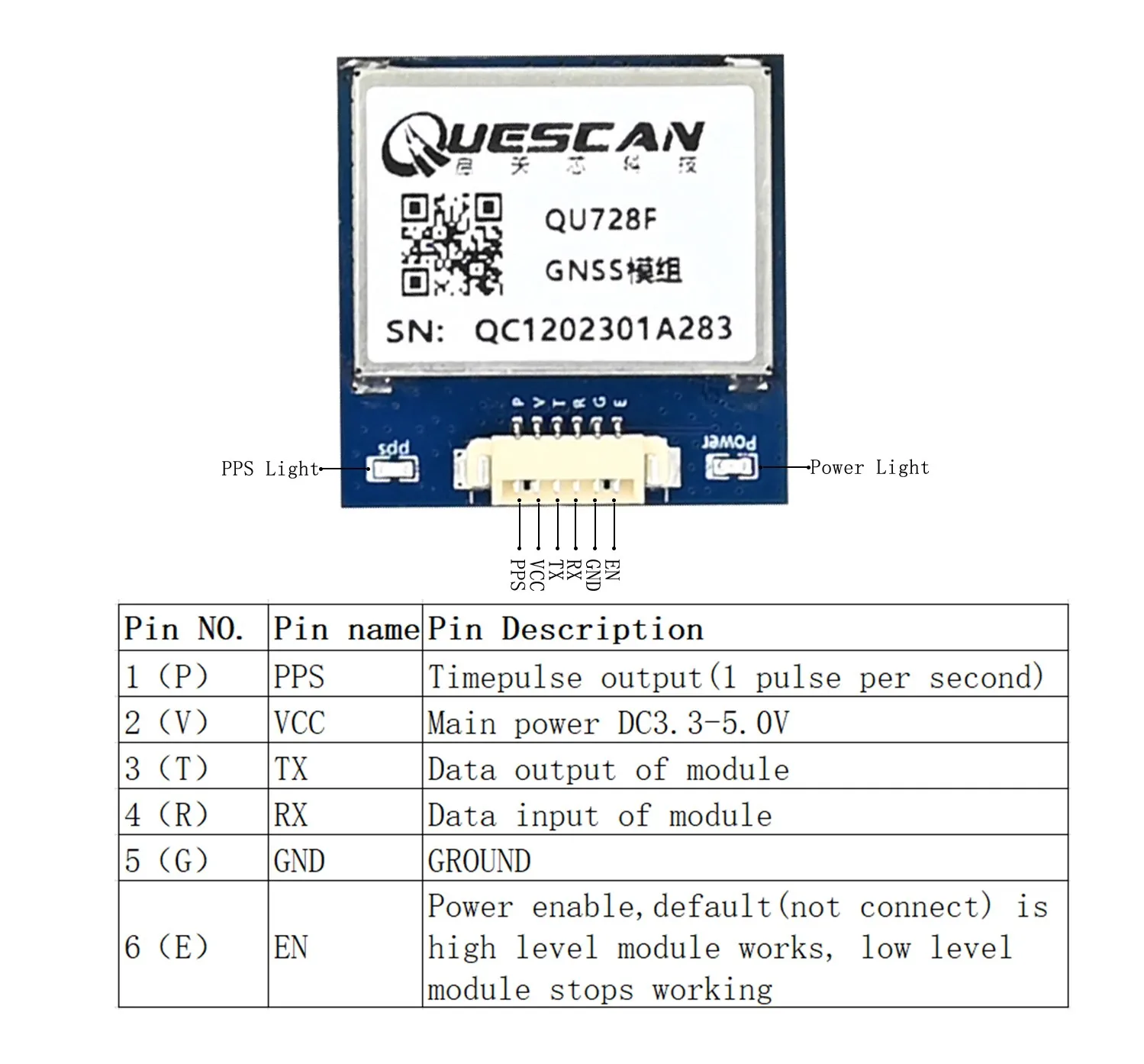

Pin definition

Hardware Analysis

Dimension

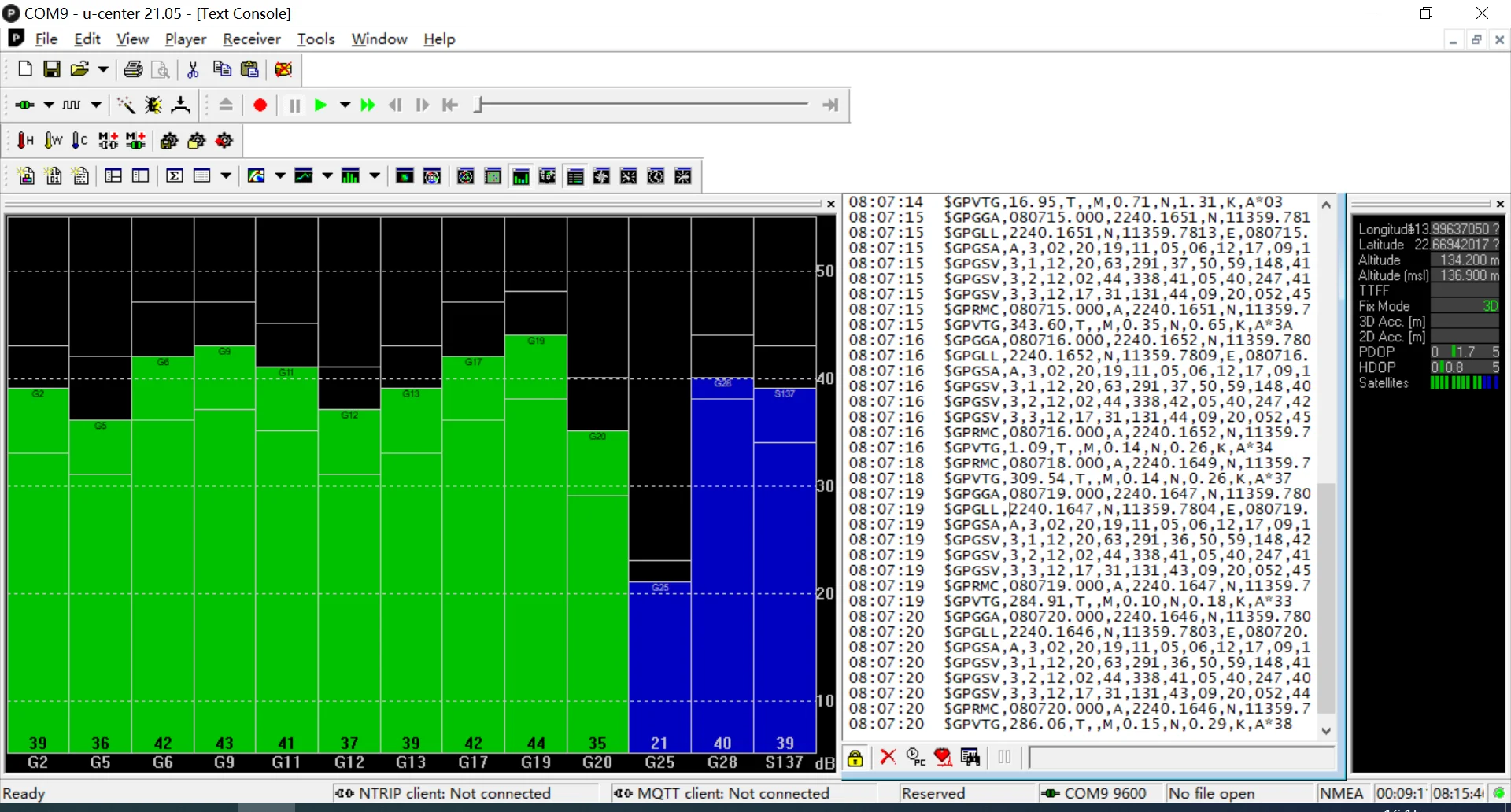

Performance

Packing list

GPS module*1
Data line*1
