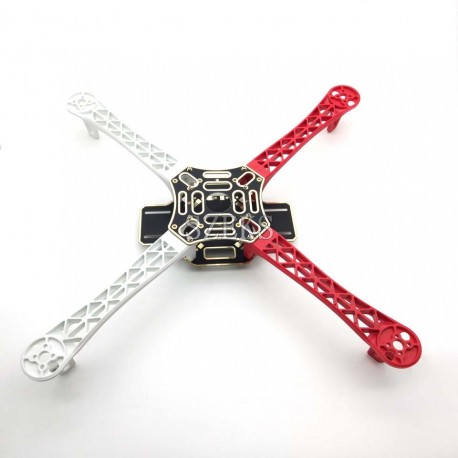

F450 Quad 450 PCB Quadcopter Frame Kit 450mm

Αναφορά (SKU): 158814

Περισσότερες λεπτομέρειες

Διαθέσιμο

Εκτύπωση

Άλλες πληροφορίες

Description:

Brand: Diatone

Item name: F450 Frame Kit

Width: 450mm

Height: 55mm

Weight: 295g (without electronics)

Motor Mount Bolt Holes: 16/19mm

Features:

Built from high quality glass fiber and ultra durable polyamide nylon.

Arms are reinforced and much more stronger to prevent and reduce breakage.

Integrated PCB connections for direct soldering your ESCs.

Colored arms for orientation to keep you flying in the right direction.

Large mounting tabs on main frame bottom plate for easy camera or other accessories mounting.

Pre-threaded brass sleeves for all of the frame bolts.

Easy assembly.

Required (package not included):

4 x 22~28mm 800~1200kv (or similar size/kv)

4 x 15~30 Amp ESC (Recommend 30A OPTO)Α

4 x 8x4~10x4.5 Prop (2CW & 2CCW)

1 x Multi-Rotor Control Board (Recommend KK2.1)

1 x 1500~2200mAh 3s 11.1v Lipoly battery

The following products in our website are usage for this Q450 V3 frame kit:
Emax MT2213 935KV Brushless Motor,
ZTW Spider Series 30A OPTO Brushless Speed Control ESC,
10x4.5 propeller,

MMC 10x4.5 Carbon Fiber propeller,

KK2.1 flight controller,
DUPU 1500mAh 11.1V 3S 25C battery, .
3S High Rate Li-po Battery 11.1V 2200mAh 20C, .
ACE High Quality 2200mAh 20C 3S 11.1V Lipo Battery,

Package included:

1 x F450 Frame Kit
