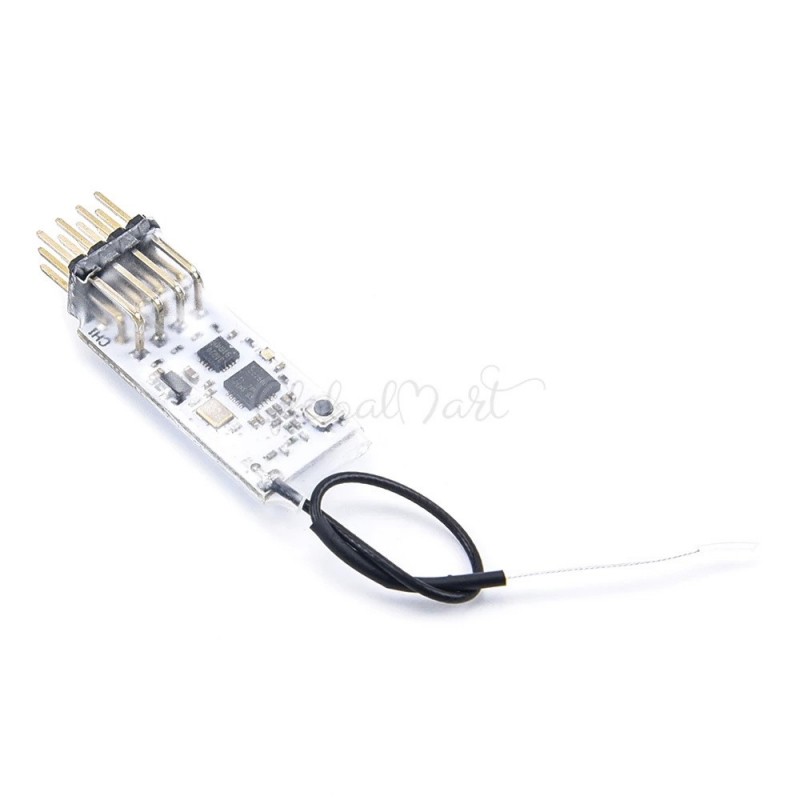

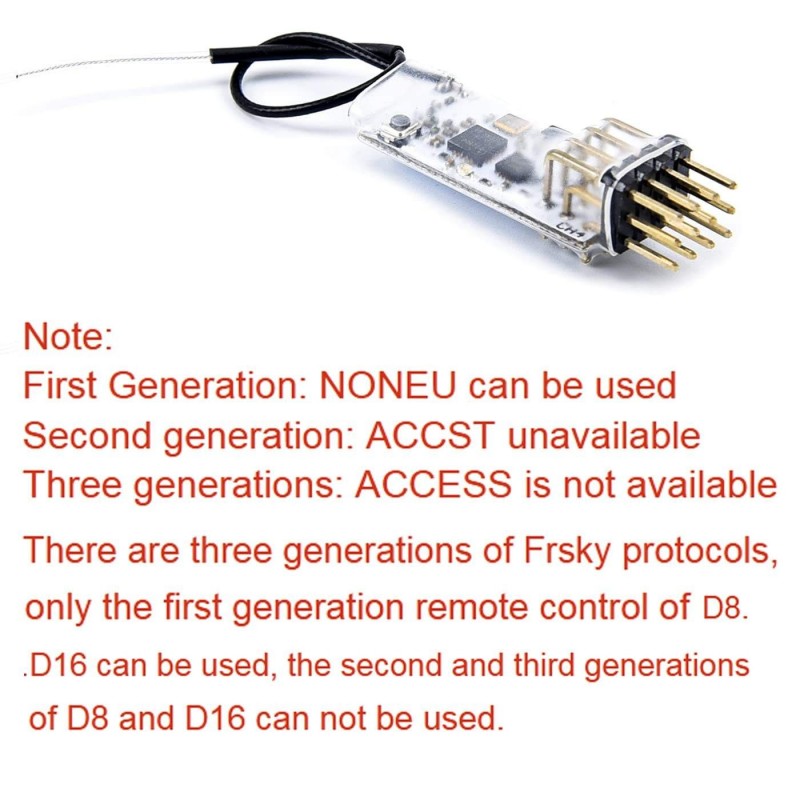

2.4G 4CH Receiver:

Working frequency: 2400Mhz-2483. 5Mhz

Working mode: Frequeney-Hopping Spread Spectrum

Working voltage: 4.0V-15V

Working current: <25mA (+8.0V)

Output channel: 4CH PWM

Size: 27.7* 12.7 * 10mm

Weight: <1.2g (without pins) <2.4g (with pins)

Note: Weight with pins is related to soldering tin, between 2.0g-2.5g

Distance:

Futaba(14sg) >150 meters(ground) > 500 meters (air)

Frsky (X7) >250 meters(ground) > 650 meters (air)

Note: Distance testing is a very complicated matter, and it is related to weather, electromagnetic environment, remote control antenna height (direction), receiver antenna position (direction and height), etc. The distance parameters we provide are only for reference.

How to bind :

1. Power the receiver , the led flashes slowly, press the bind button for about 1 second, the led will flashes quickly which indicates the receiver is in binding mode

2. Power on the remote control
A. Futaba double-leaf remote control (board control) choose S-FHSS system , (gun control) choose S-FHSS  or S-FHSS NORM system

B.Frsky remote control select D8/D16 system, set to enter bind mode

C.Jumper remote control select frsky/frskyX system, set to enter bind mode

3. Receiver status

A.Futba double leaf mode: The indicator light changes from flashing quickly to a steady light, and the code is successfully matched

B. Frsky /jumper mode:

The indicator light changes from fast flashing to slow flashing, the remote control exits Bind mode, the indicator light is always on, and the code matching is successful.

Signal output:

CH1-AIL (Aileron) CH2-ELE (Elevation) CH3-THR (Throttle) CH4-RUD (Direction)

Note:

Jumper remote control T8SG binding:

Since T8SG uses the linking channel in the normal working mode of Frsky D8, to link the jumper in Frsky D8 mode, you need:

1. First turn on the remote control to enter the binding mode

2. Power on the receiver and press the bind button to enter the binding mode

3.If the receiver bind successfully , the led light will change from fast flashing to slow flashing

4.The remote control exits the binding mode, the LED on the receiver always on and this indicates binding successfully

Package Included: (Send it as your choice)
