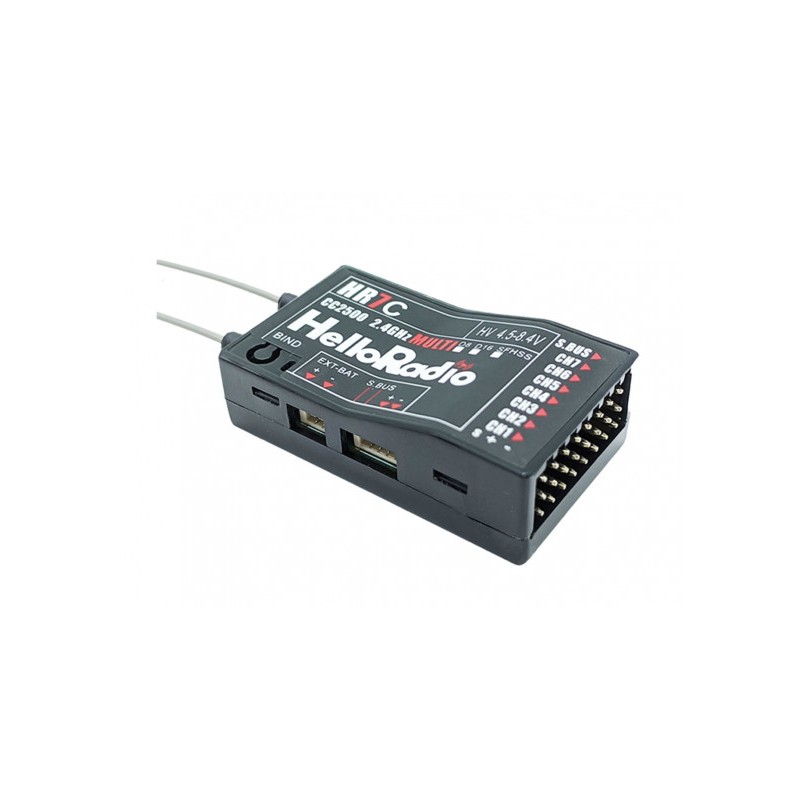

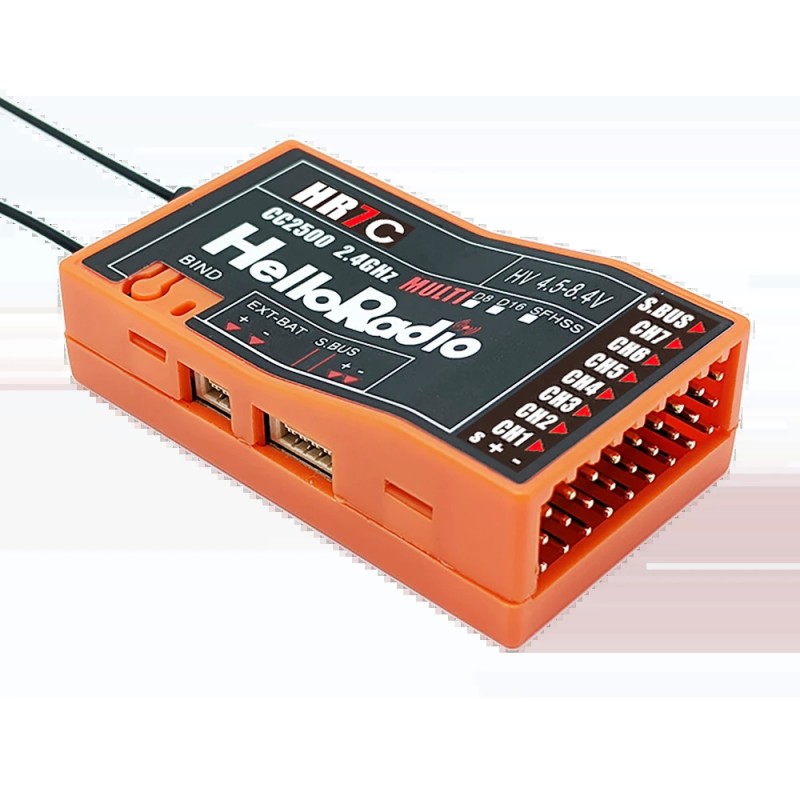

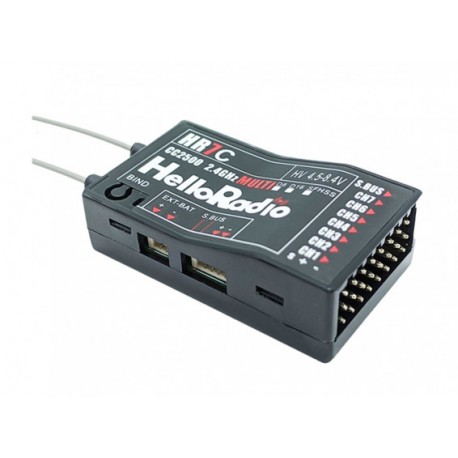

HelloRadioSky HR7C ExpressLRS ELRS 915MHz 8CH D8/D16/SFHSS PWM Receiver for Fixed Wing RC Airplane

Specification:

Brand: HelloRadioSky

Model: HR7C

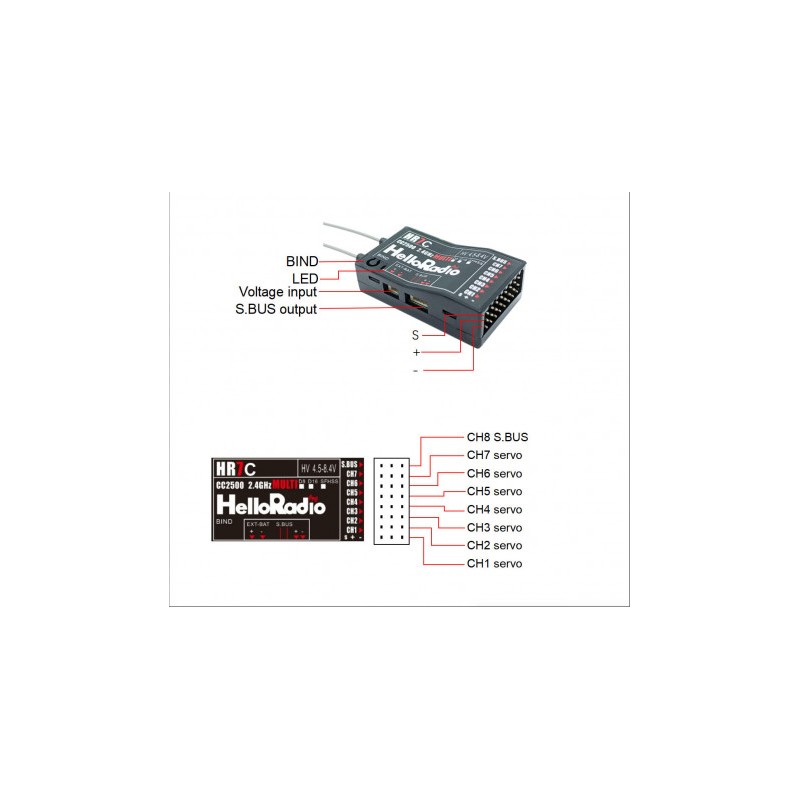

Product: HR7C 2.4GHz PWM receiver Number of channels: 8 channels Frequency range: 2400-2483.5Mhz Power supply range: 4.5-8.4V Signal format: D8/D16V1/SFHSS Output format: PWM Support feedback: Support RSSI feedback. D8 supports voltage feedback. Control distance: greater than 1km Antenna length: 18cm Size: 48*25*15mm Weight: 10g

Binding Method:

Traditional Method: 1. Power on the receiver, its LED will turn on. Then power off the receiver. 2. Repeat Step one twice. 3. Power on the receiver for the third time, its LED will double blink. This indicates that the receiver is in bind mode. 4. Select [BIND] on the radio, then confirm.

Binding phrase: 1. Open the ExpressLRS LUA and navigate to the Wifi Connectivity page. Select the Enable Wifi option and connect to your radio's Wifi with a mobile phone, tablet or PC (See TX Wifi notes below). Open the WebUI (ExpressLRS web page on http://10.0.0.1/) and input a unique bind phrase of yours. (Note: Bind phrases are not secret and can be read). Save and Reboot. 2. Power up the receiver and wait 60 seconds for the LED to blink rapidly to indicate Wifi mode. Connect your phone, tablet or PC to the receiver's Wifi (See TX Wifi notes below). Open the WebUI (ExpressLRS web page on http://10.0.0.1/) and enter the matching bind phrase previously entered on your radio. (Note: Bind phrases are not secret and can be read). Save and Reboot. Once a radio and a receiver have the same bind phrase set, they will automatically bind.

Package Included:

1x HelloRadioSky HR7C Receiver
