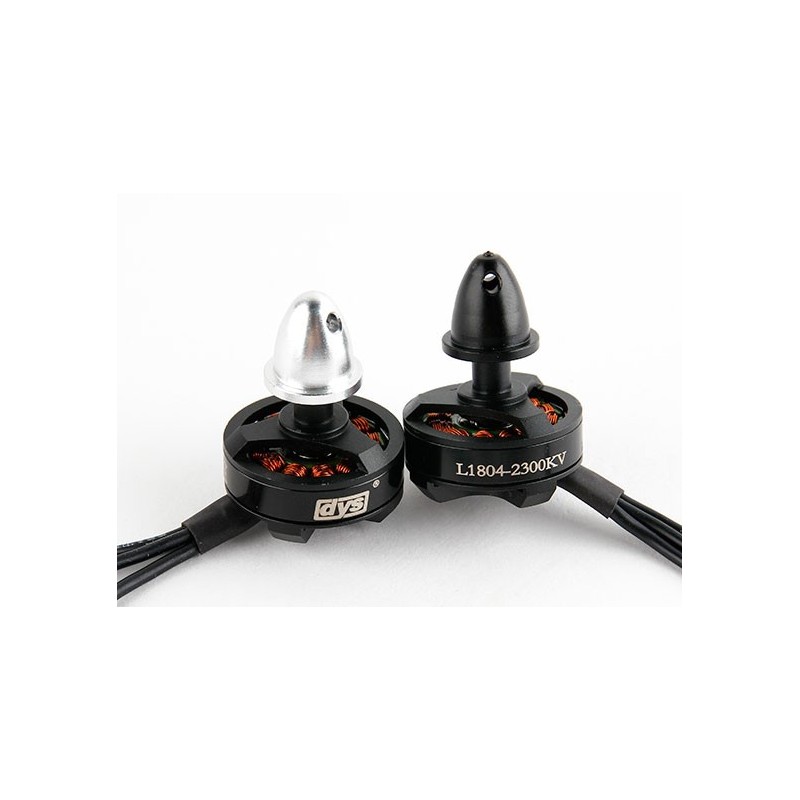

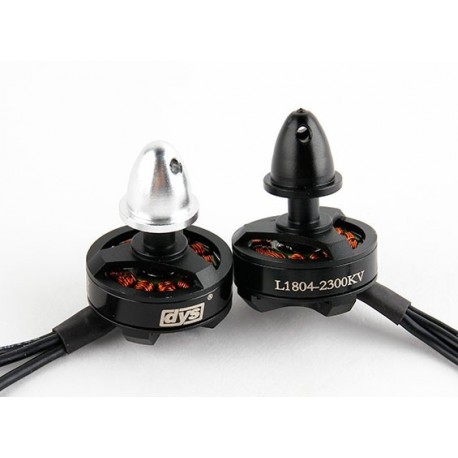

DYS 1804-2300KV BX Series Set of Two CW/CCW Motors

Αναφορά (SKU): BX1804-2300KV

Περισσότερες λεπτομέρειες

Διαθέσιμο

Εκτύπωση

Άλλες πληροφορίες

Specifications:
KV........................................................................2300
Configu ration............................................................NP
Stator Diameter...........................................................18mm
Stator Length.............................................................4mm
Shaft Diameter............................................................M5
Motor Dimensions(Dia.*Len)................................................Φ23×25.1mm
Weight (g)................................................................16g
No.of Cells(Lipo).........................................................2-3S
Max Continuous current(A).................................................8.3A
Max Continuous Power(W)...................................................92W
internal resistance.........................................................Ω

	NO LOAD		ON LOAD			LOAD TYPE
VOLTAGE	CURRENT	SPEED	CURRENT	Pull	Power	Battery/prop
V	A	rpm	A	g	W	Battery/prop
7.4	0.3	16800	0.7	50	5.2	LiPoх2/5030
			1.8	100	13.3
			3.5	160	25.9
			1.1	70	8.1	LiPoх2/6020
			3.0	140	22.2
			5.1	200	37.7
			1.4	80	10.4	LiPoх2/7024
			3.1	160	22.9
			6.5	250	48.1
11.1	0.4	22400	1.1	90	12.2	LiPoх3/5030
			2.9	180	32.2
			6.0	280	66.6
			1.3	100	14.4	LiPoх3/6020
			3.8	200	42.2
			8.3	320	92.1
