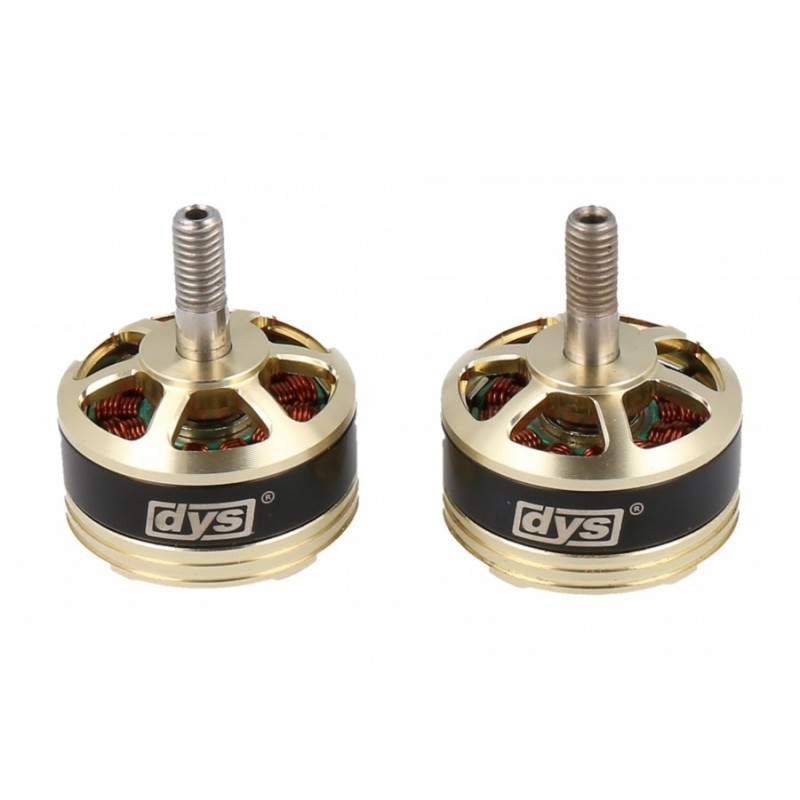

One Pair DYS SE2205 PRO Race Edition 2300KV Brushless Motor CW/CCW

Αναφορά (SKU): DYS-SE2205-PRO-2300KV

Περισσότερες λεπτομέρειες

Διαθέσιμο

Εκτύπωση

Άλλες πληροφορίες

2300KV 3-5S Lipo Brushless Motor:

2550KV 3-5S Lipo Brushless Motor:

Specification:

Item name: SE2205 PRO

KV: 2300KV/2550KV

Motor Size:Φ27.7×19

Battery: 3-5S Lipo

Weight: 29.34g
Configu ration: NP
Stator Diameter: 22.0mm
Stator Length: 5.0mm
Shaft Diameter: 3.0mm
Motor Dimensions(Dia.*Len): Φ27.7×19.0mm
No.of Cells(Lipo): 3-5S

2300KV 3-5S Lipo Brushless Motor:

Max Continuous current(A): 26.8A

Max Continuous Power(W): 428.8W

Internal resistance: 0.06Ω

2550KV 3-5S Lipo Brushless Motor:

Max Continuous current(A): 27.8A

Max Continuous Power(W): 411.4W

Internal resistance: 0.08Ω

Features:

1. New design with imported NMB bearing

2. N52 magnet and 0.2mm lamination

3. Powerful with 1.1kg thrust to work with BN5045 Prop

4. Hollow shaft with screw to fix the shaft

5. Special design for the FPV racer champions.

Package included:

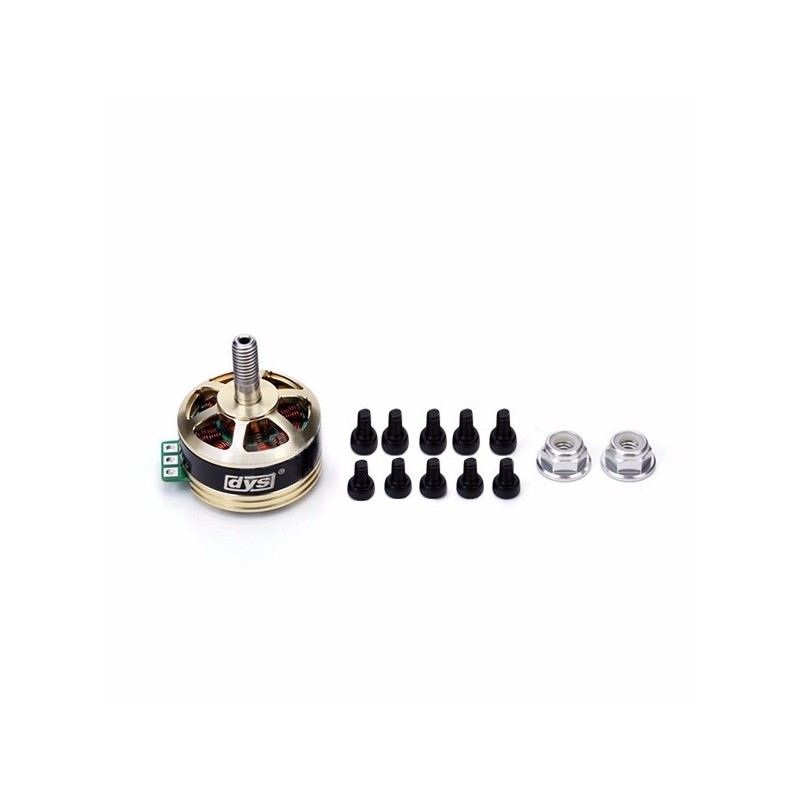

2 x DYS SE2205 PRO 2300KV Brushless Motor
