(SKU): OS7654T
Διαθέσιμο
Product Details

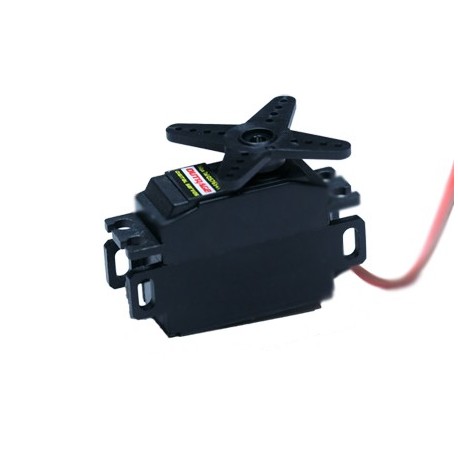

The OUTRAGE OS7654T servo is one of the fastest digital servos on the market - awesome tail servo for 450/500 class helicopters that are using (1) of the below gyros.
Note: This servo has a pulse width of 760ms, and is not compatible with all gyros; please reference below gyros for compatibility, and be sure that servo is plugged into gyro for servo testing - servo will not respond when plugged directly into the receiver.
Suitable Gyros: Spartan DS760, Futaba GY611, Futaba GY601, Align GP700, Align GP750, PG-800, V-Bar Tail, SL720, Curtis Youngblood Mini-G, Solid G, Thunder Tiger TG-7000
Specification:
Operating Voltage: 4.8V |
| Operating Temperature Range: -10 to +60 Degree C |
| Operating Speed (4.8V): 0.054sec/60° |
| Stall Torque (4.8V):27.91 oz/in. (2.01kg.cm) |
| Motor Type: Coreless Motor |
| Potentiometer Drive: Indirect Drive |
| Bearing Type: Dual Ball Bearings |
| Gear Type: 2 Metal Gears + 3 aluminum-alloy Gears |
| Connector Wire Length: 15cm |
| Weight: 0.97 oz. (27.4g) |
| Wire Length: 15cm |
| Dimensions: 35.8 x 15.2 x 29.00 mm |
