Feature:

1. Good quality and through rigorous testing , you can easily use it. Includes installation, tool adapter and installation hardware.
2. Stable performance, more convenient to disassemble, extremely quiet and light.
3. The whole system passed the dynamic balance test to ensure the smooth running of the motor and low noise.
4. External radial rotor design, used to replace the motor shaft and can be easily reversed installation.
5. Compatible with market mainstream rack installation, and keep the appearance consistent with the traditional motor, protect coil and clean appearance.

Specification:

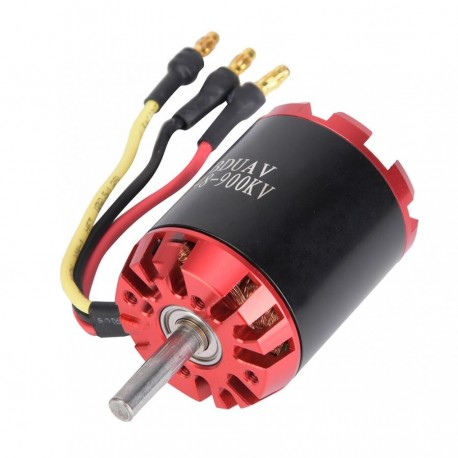

Item Type: External Rotor Brushless Motor
Model: 3548-900KV
Material: Stainless Steel
Color: Red + Black
Quantity: 1PCS
Maximum Power: 835W
No-load Current: 1.6-2.9A
Maximum Current: 45A
Voltage: 11.1-36V
KV Value: 600-900kv
No-load Speed: 6000-9000rpm
Torque: 0.8-1.3N/m
Weight: Approx. 171g
Mounting Hole Size: M3x4
Body Diameter: Approx. 35mm/1.38inch
Body Height: Approx. 46mm/1.81inch
Shaft Diameter: Approx. 5mm/0.20inch
Output Shaft Length: Approx. 20mm/0.79inch
Top Mounting Hole Distance: Approx. 19mm/0.75inch
Bottom Mounting Hole Distance: Approx. 15mm/0.59inch
