> >>FPV MINI 300H CF Quadcopter Kit /12A ESC /MT2204 Motor/CC3D - PNF

RTF / PNF / ARF

Κατασκευαστές

Πληροφορίες

FPV MINI 300H CF Quadcopter Kit /12A ESC /MT2204 Motor/CC3D Μεγαλύτερη προβολή
Προηγούμενο Επόμενο

FPV MINI 300H CF Quadcopter Kit /12A ESC /MT2204 Motor/CC3D - PNF

(SKU): MINI-300H

FPV MINI 300H CF Quadcopter Kit /12A ESC /MT2204 Motor/CC3D - PNF

Περισσότερες λεπτομέρειες

Διαθέσιμο

220,00 € με Φ.Π.Α

Άλλες πληροφορίες

FPV 300H 300 MM mini Quadcopter Frame CC3D side pin 2204 2300kv Motor 6030 Prop

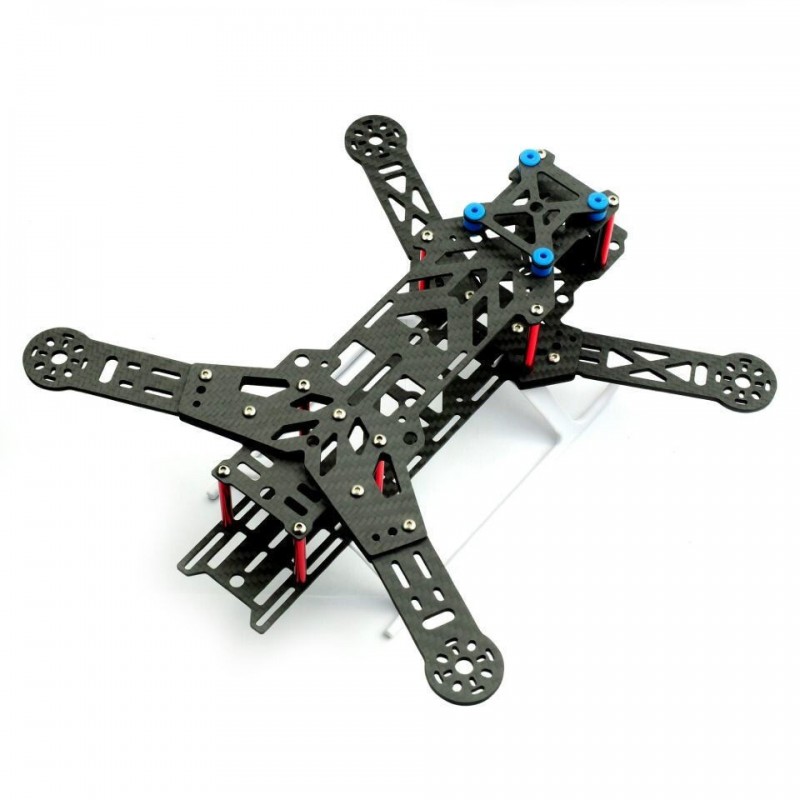

FPV 300H mini Quadcopter Pure Carbon Fiber Frame Kit / 4 Axis Mulitcopter

Description:

- Material: 100% full carbon Fiber

- size: 300mm shaft diameter

- Weight: 154g

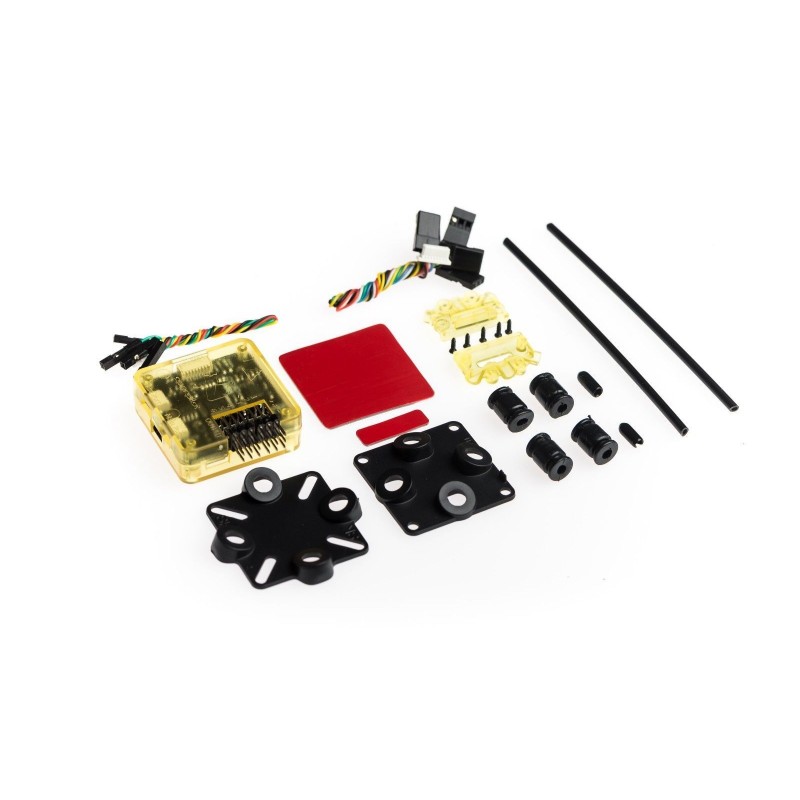

CC3D side pin description:
OpenPilot is a next-generation Open Source UAV autopilot. It is a highly capable platform for multi-rotor craft, helicopters, as well as fixed wing aircraft. It has been designed from the ground up by a community of passionate developers from around the globe, with its core design principals being quality, safety, and ease of use.?  Simplicity does not come with any compromises either: with no hard-coded settings, a complete flight plan scripting language and other powerful features, OpenPilot is an extremely capable UAV autopilot platform.

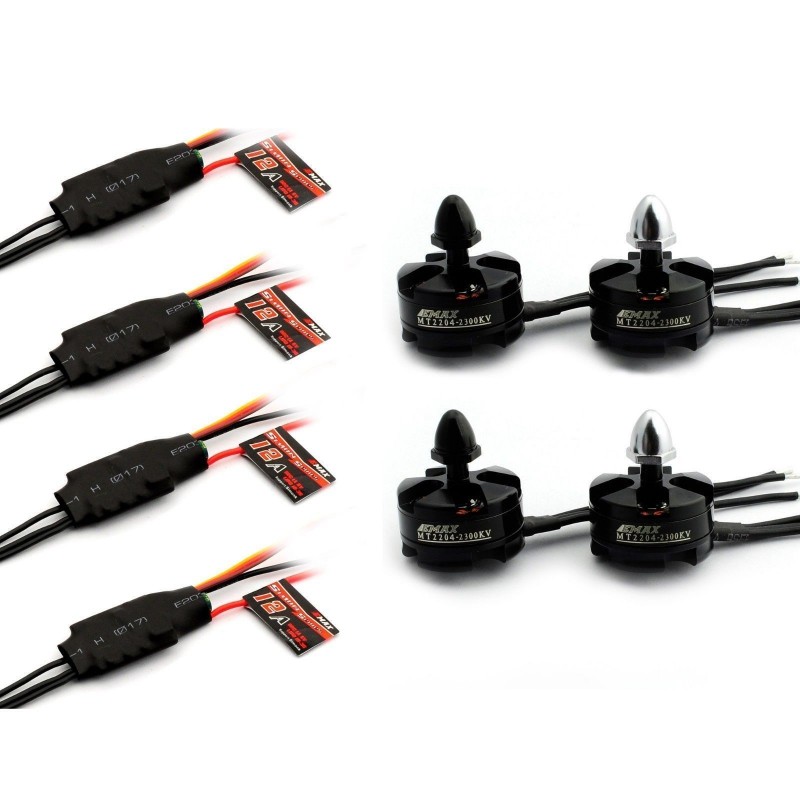

Emax BLHeli Series 12A ESC

  Features:
  - Rotation direction of the motor is programmable: normal, reverse or bidirectional
  - All parameters can be programmed via using a program card or a transmitter, including default settings
  - Multiple protection features including low voltage cut-off protection/over-heat protection/throttlesignal loss protection
  - Alarm to help you find the devices: keep the throttle on FULL ON position for a while, the ESC will help
  - Throttle range can be configured and is fully compatible with all receivers, providing smooth, linear and precise throttle response

  Specifications:
  - Continuous current: 12A
  - Burst current: 15A@10S
  - Lixx battery: 2-4S
  - Dimension: 42*20*8mm
  - BEC output: 1A 5V
  - Weight: 11g wires included
  - Programmable


6030 propeller features:

Model: 6030

Material: Plastic

Color: Red

Shaft: 5mm

Package size: 20 * 15 * 2cm / 8 * 6 * 0.8 in

Package weight: 13g / 0.4 oz

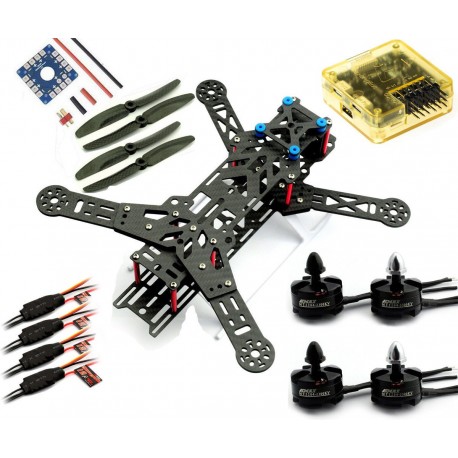

Package include:
-1 Set BX300 full carbon frame
-1 pcs CC3D side pin flight controller
-1 pcs distribution board
- 4 pcs 2204 2300KV Motor (send it at randow)
-4 pcs Emax BLHeli 12A ESC
-2 Pair 6030 black Propeller
-2 Pair 6030 red Propeller

(Just a kit , not assembled )
