Name:

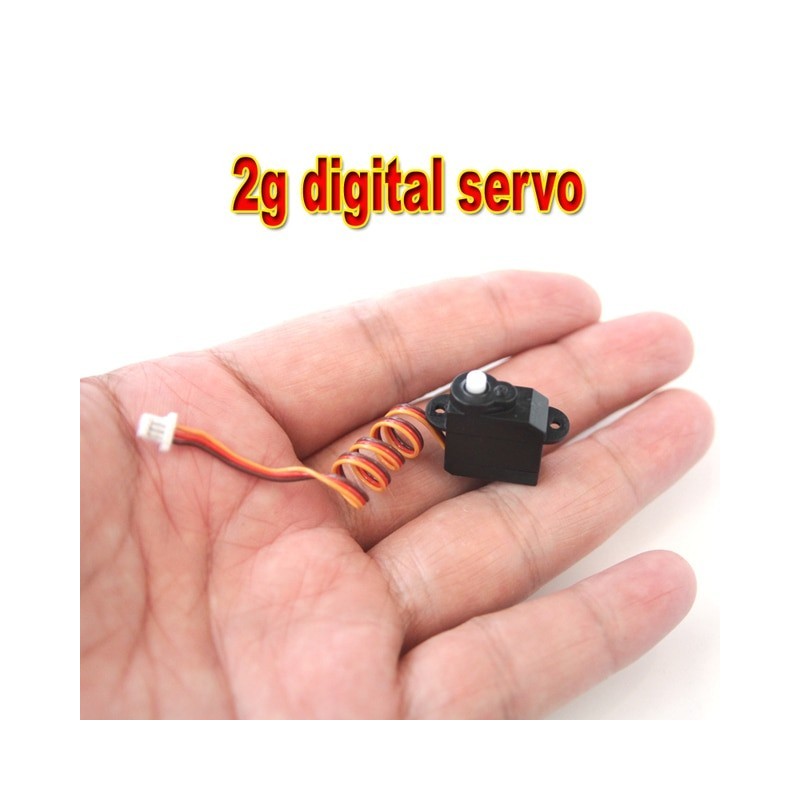

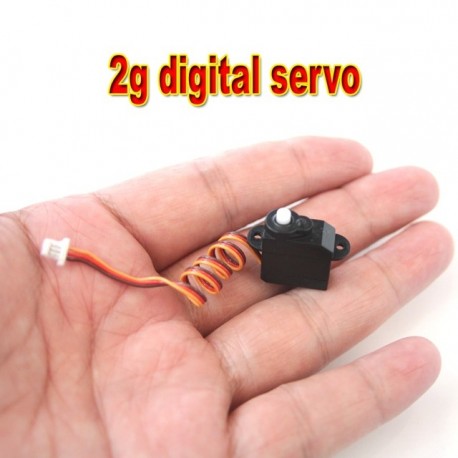

2g micro servo, 260 degrees rotation angle!

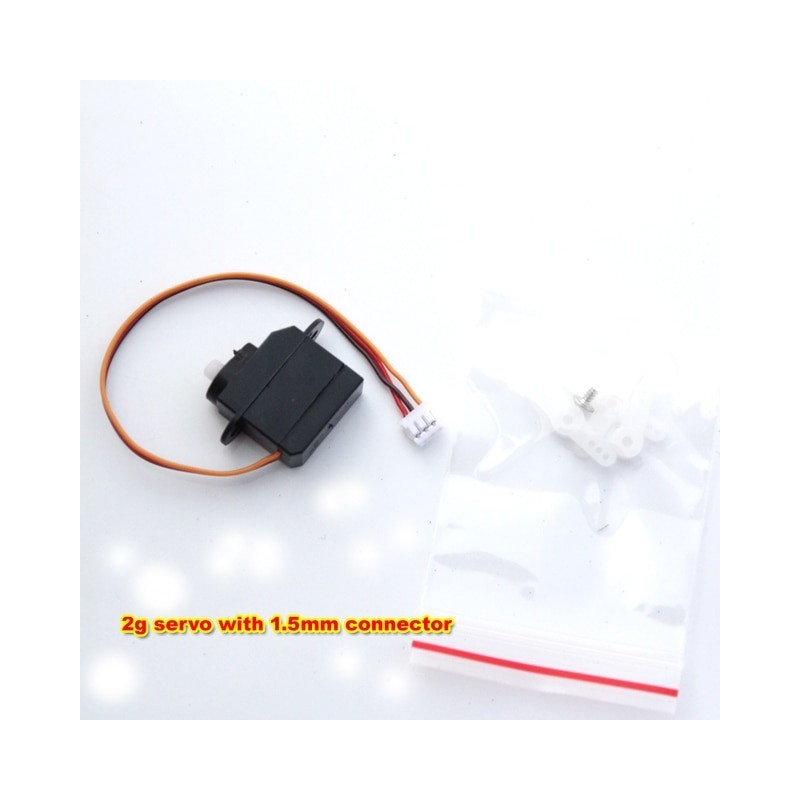

The package includes:

one servo(260 degrees rotation angle) and related arms and screws!

Features:

2g micro servo rc serco,POM gear

for car models and mini airplanes

100% new, good quality and performance

Specifications:

Operating Voltage: 3.7V ~ 6.0V

Running current: 35mA

Idle current: 4mA

Speed: 0.08 sec/60 @ 4.8V

Torque: 0.2 kg-cm 4.8V

Weight: 2 g

Size: 16.2*8.2*16.5mm

Connector Wire Length: 110mm

Motor: Coreless

Precision POM Gear

Plug:JST1.0mm, 1.25mm, 1.5mm/JR or Futaba

wire color: brown(-) red (+) orange(S)

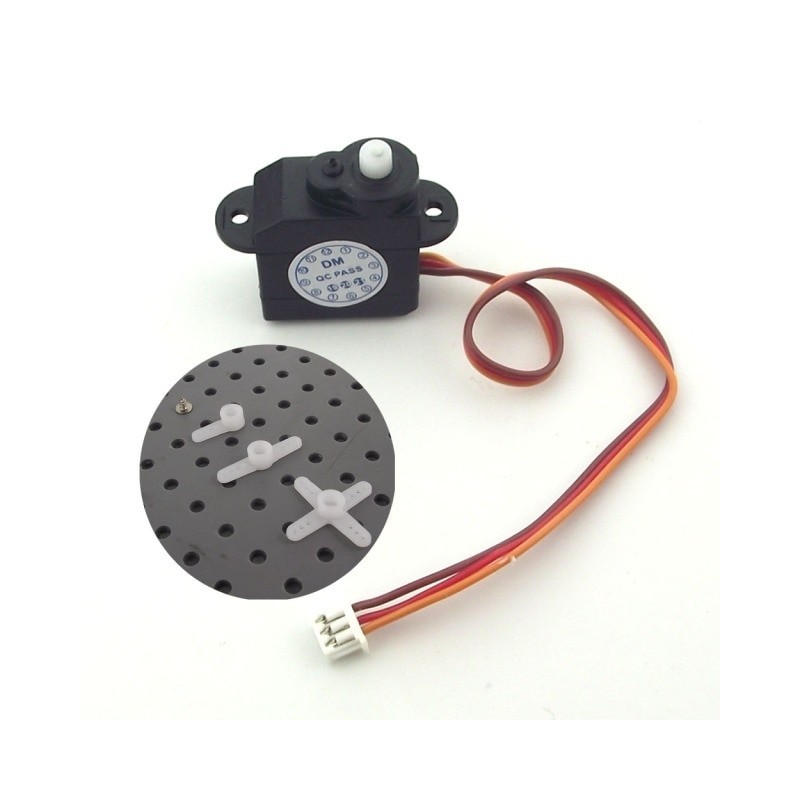

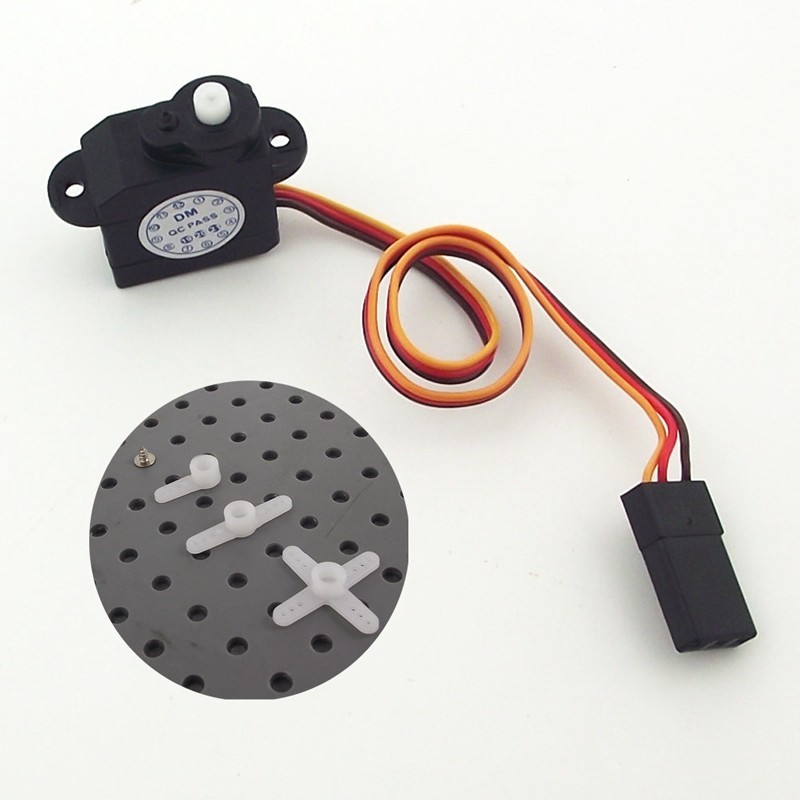

Servo arms & screw included

To achieve 260 angle rotation degrees, the PWM signal should be 0.5ms~2.5ms, the normal transmitter can only get 1ms~2ms, so the rotation angle would be 90 degrees if it were controlled by a normal transmitter.

We also supply the signal expander which was shown in the video.
