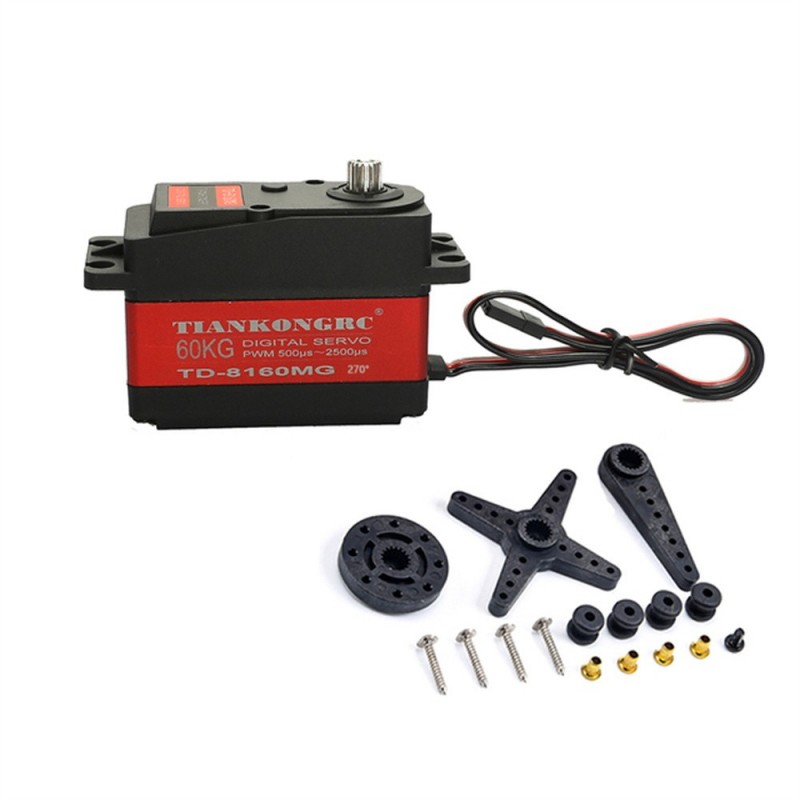

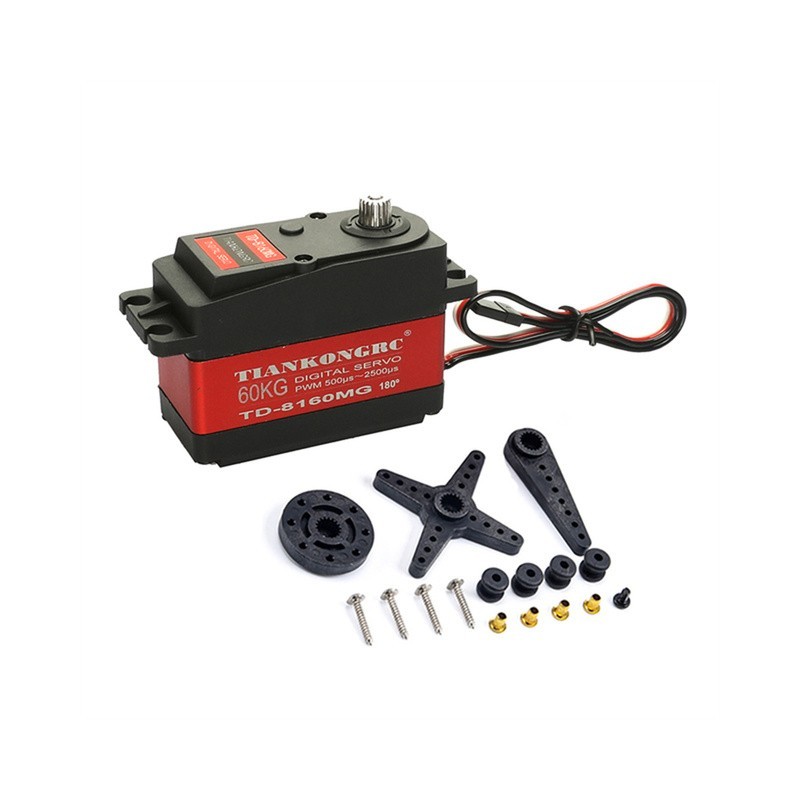

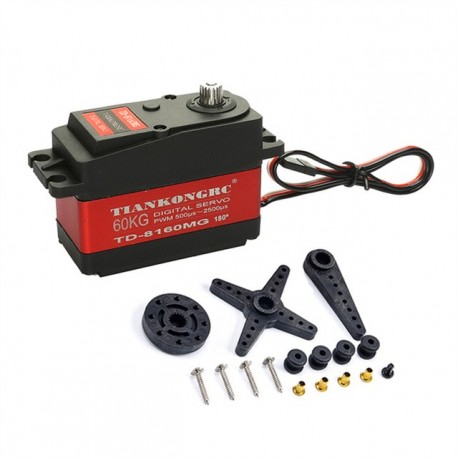

60KG Servo:

- High-precision metal gears with hard anodizing
- CNC aluminium middle Shell,
Control system :PWM control (1500 u-sec is the central point)
Working voltage:4.8V ~ 8.4V
Working temperature: -20C°~ +60C°
Torque :4.8V /58.5kg.cm
              8.4V /70kg.cm
 Idle speed :4.8V/0.17sec / 60 deg
                     8.4V/0.13sec / 60 deg
Steering angle: 180 / 270 degree
Dead band :2usec
Lifetime:>15000 times without load
Moving angle:60°±10°
Drive type: MOS drive
Motor type:Cored motor
Potentiometer type:Direct drive
Signal booster type:Digital
Size:65X30.2X49mm
Weight : 180g
Ball Bearing:2BB
Gear material:Metal gear
Case material: PA66+fiber40%
Wire length:260mm
Wire gauge No and plug type:26AWG,JR plug
Brown wire:Negative
Red wire:Positive
Orange wire:Singal
Application:RC car, RC airplane, Helicopter
