Features:

High performance digital standard

Low noise and long service life

Small volume and large torque

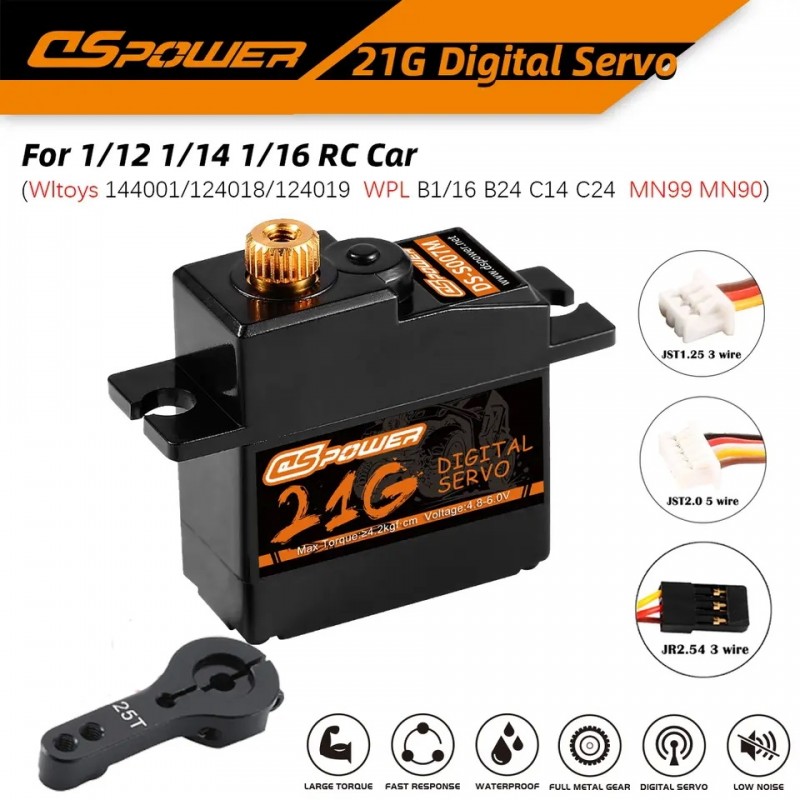

Suit for RC car boat helicopter model

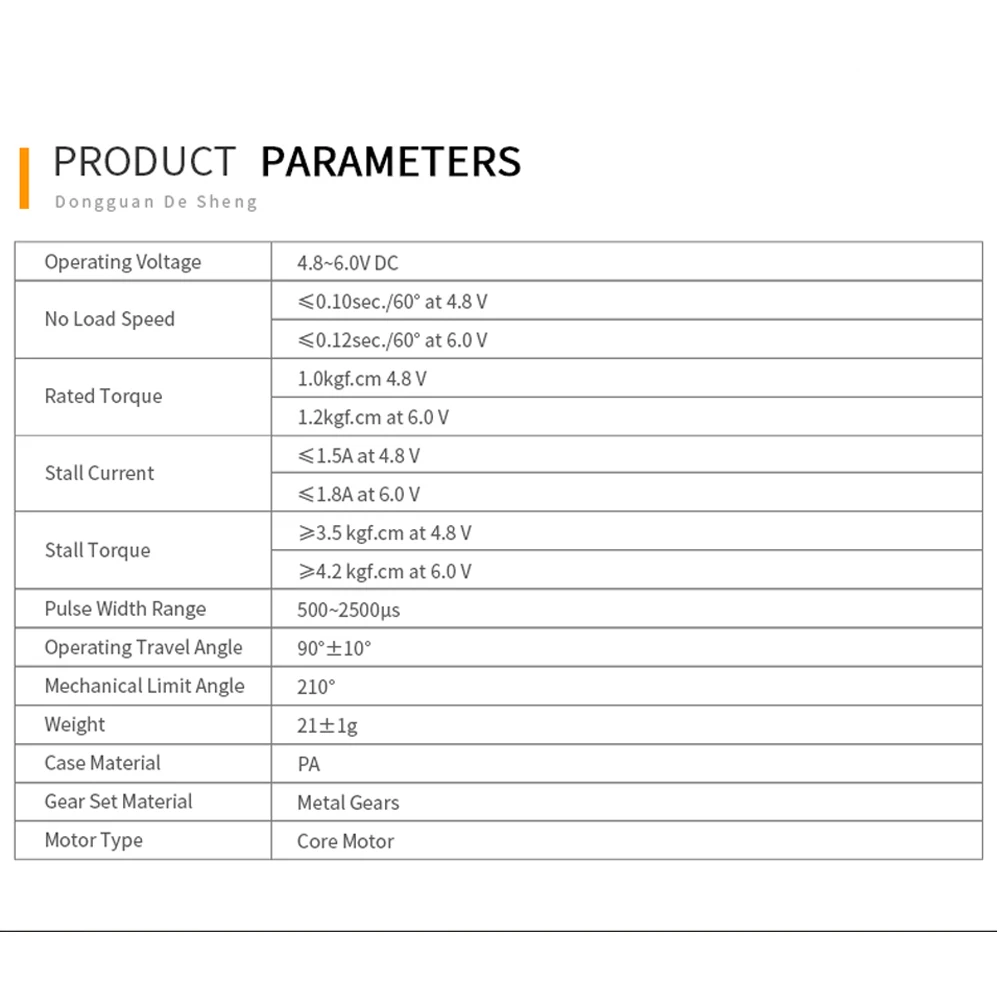

Specifications:

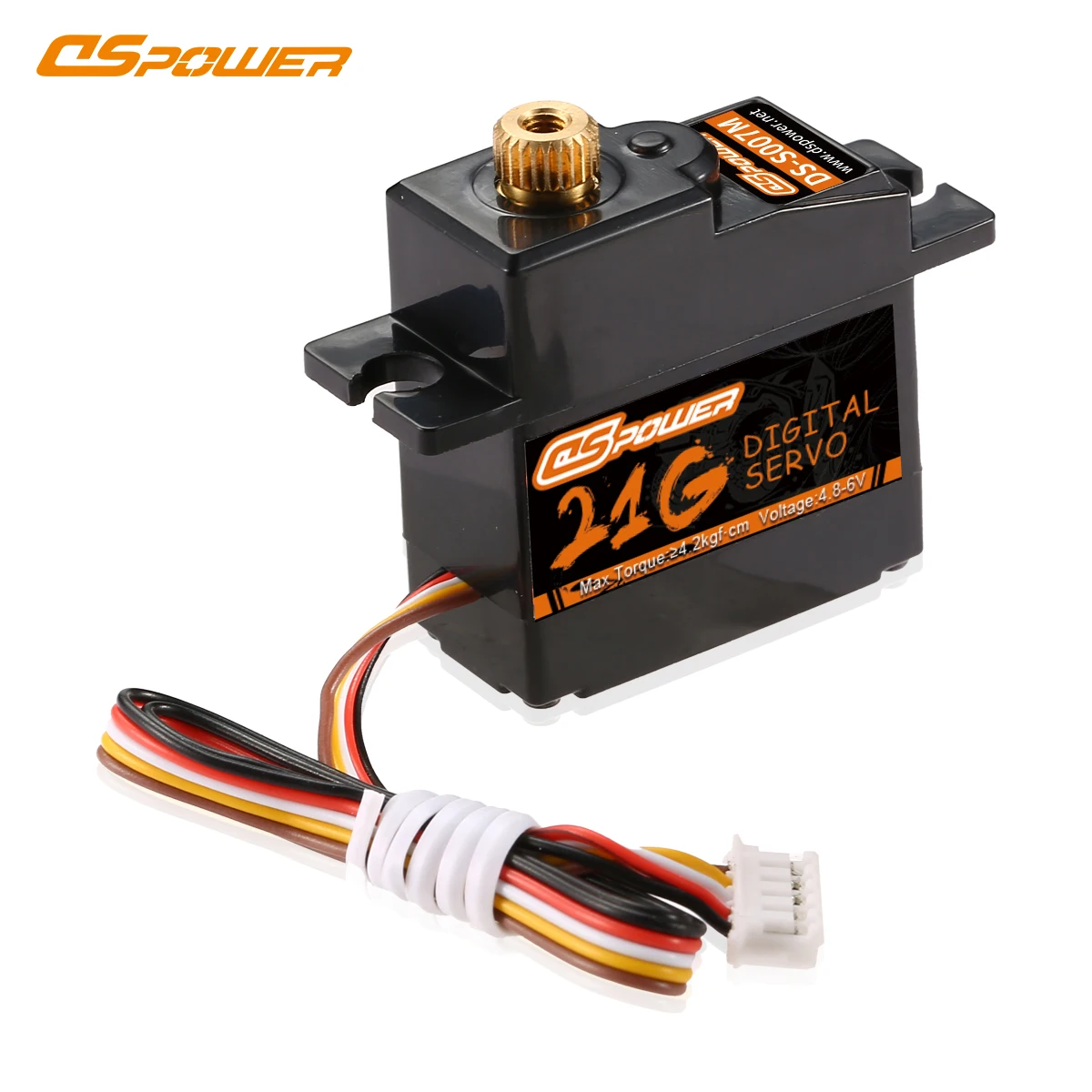

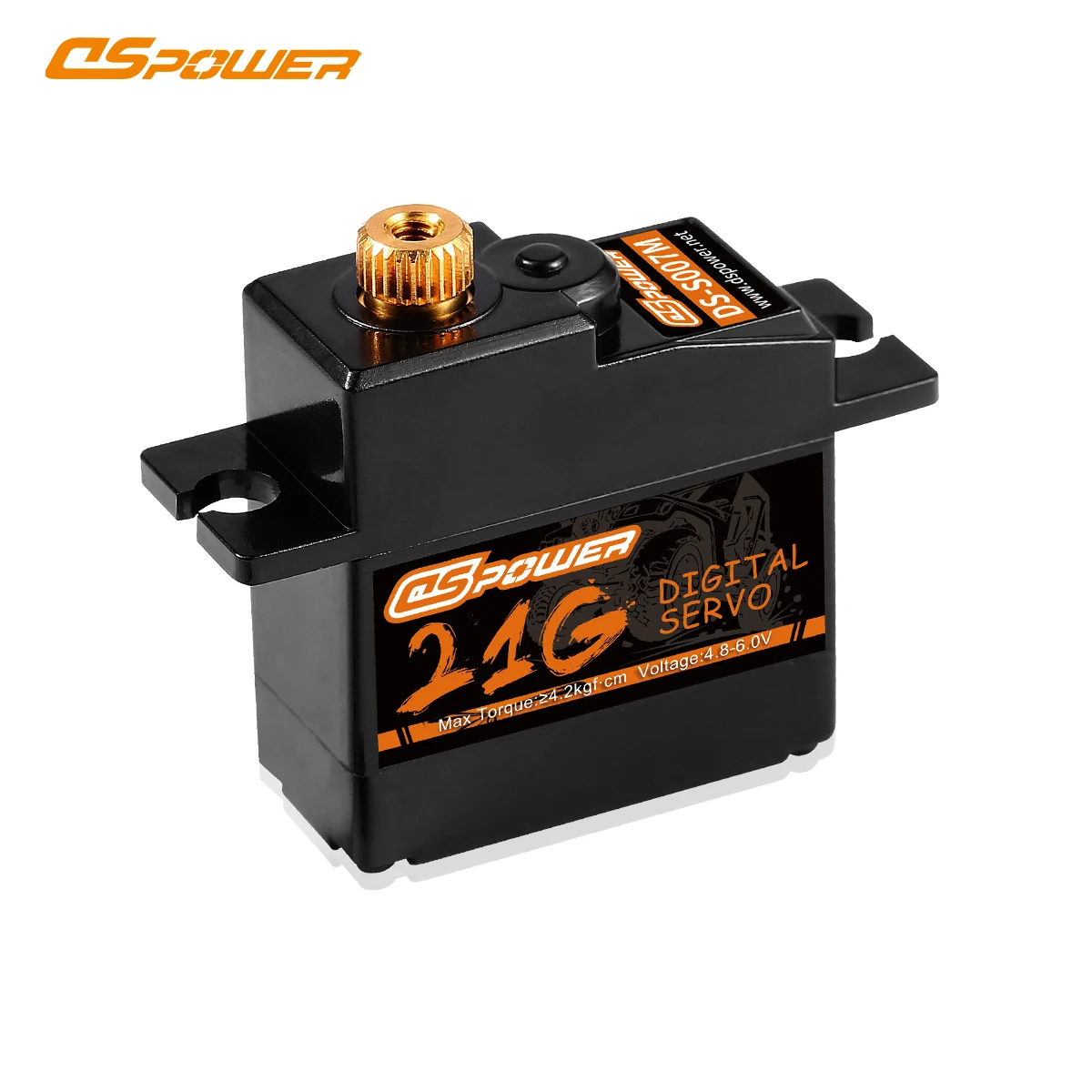

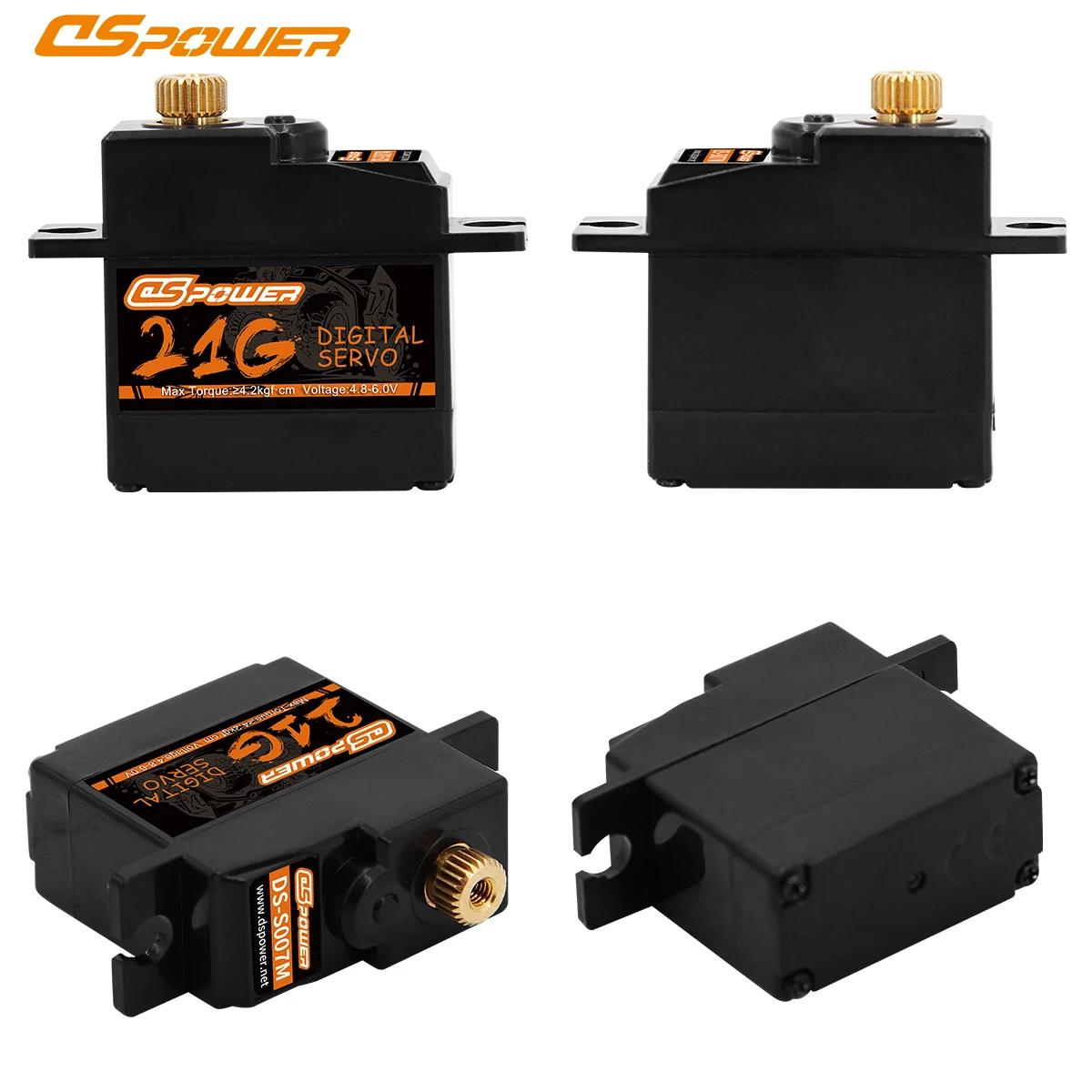

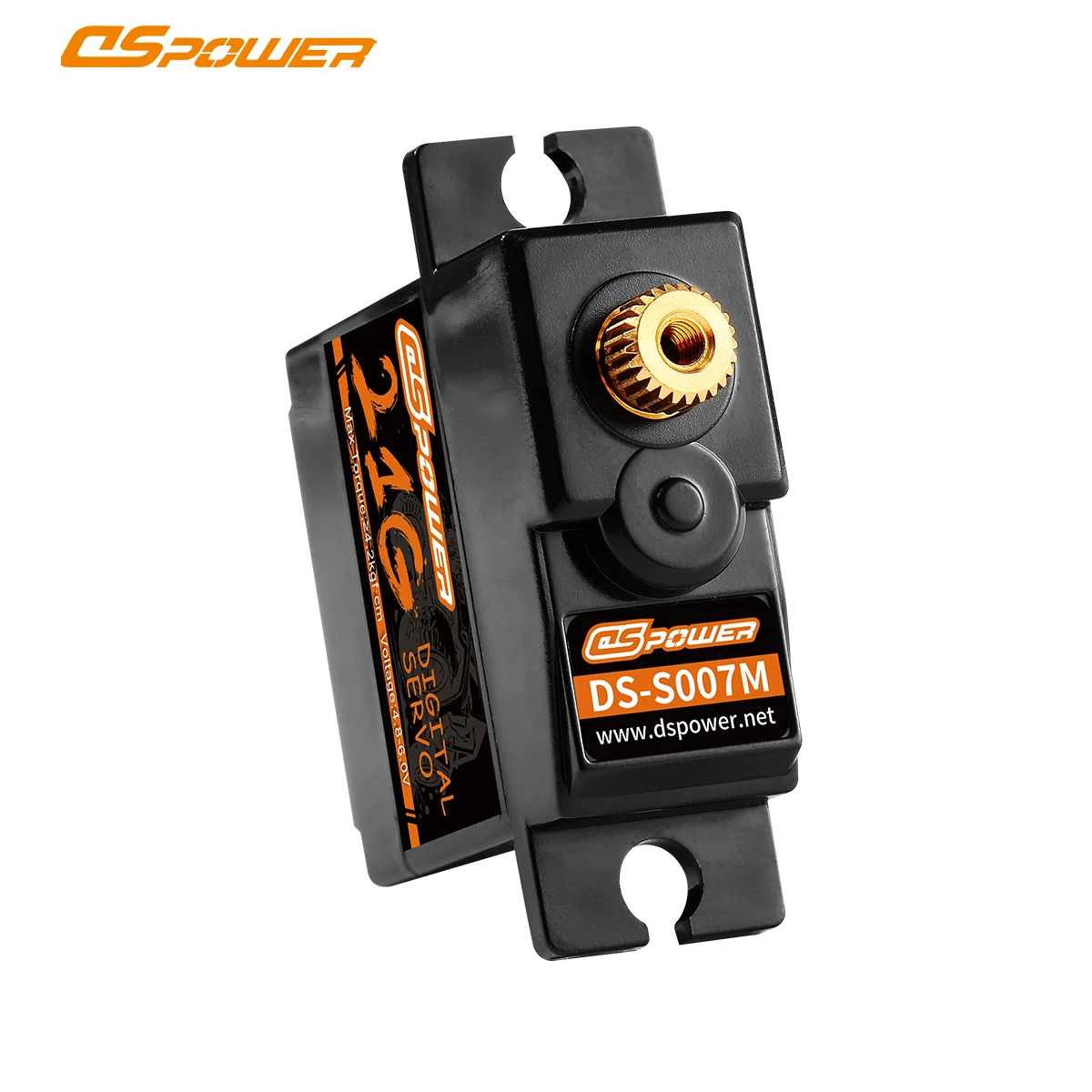

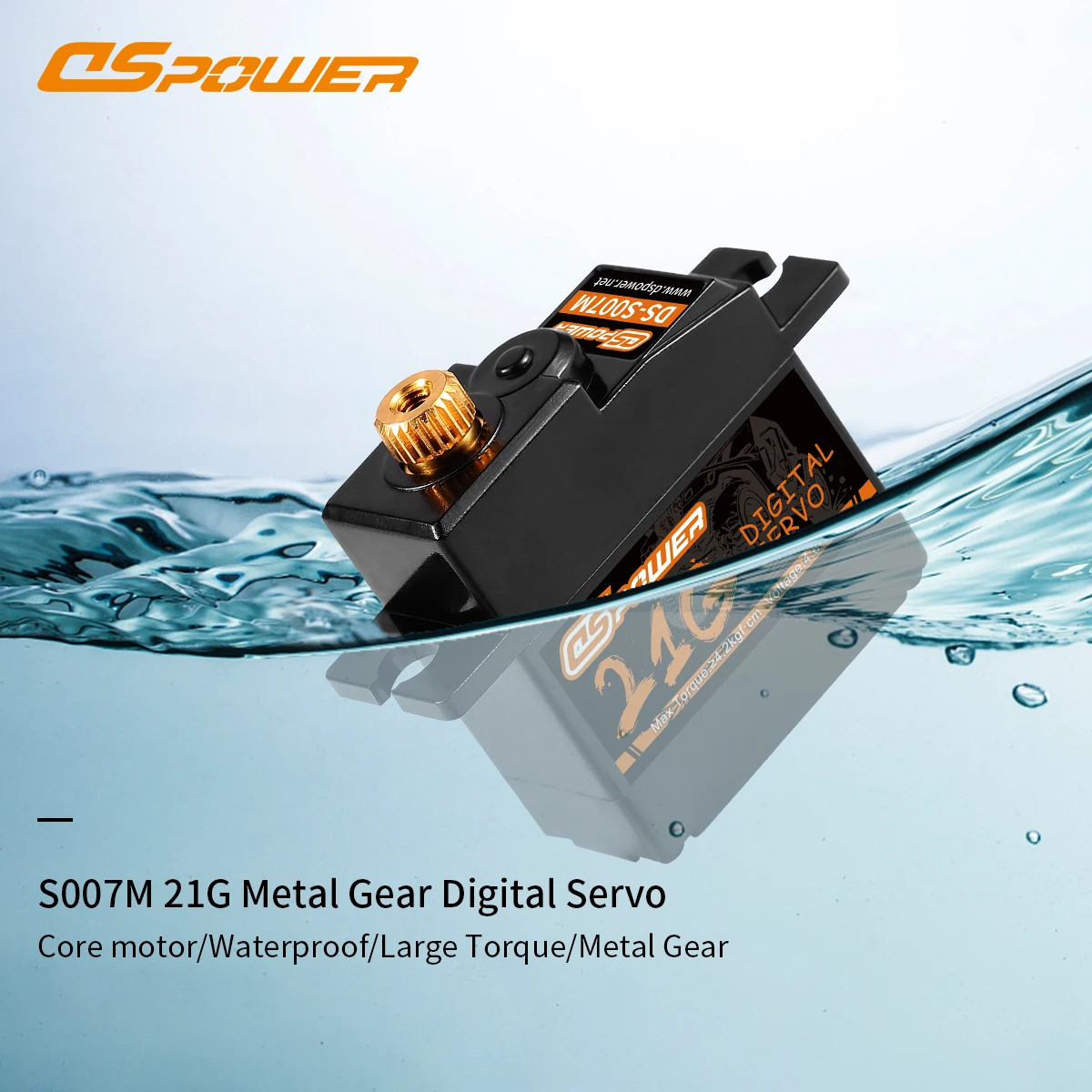

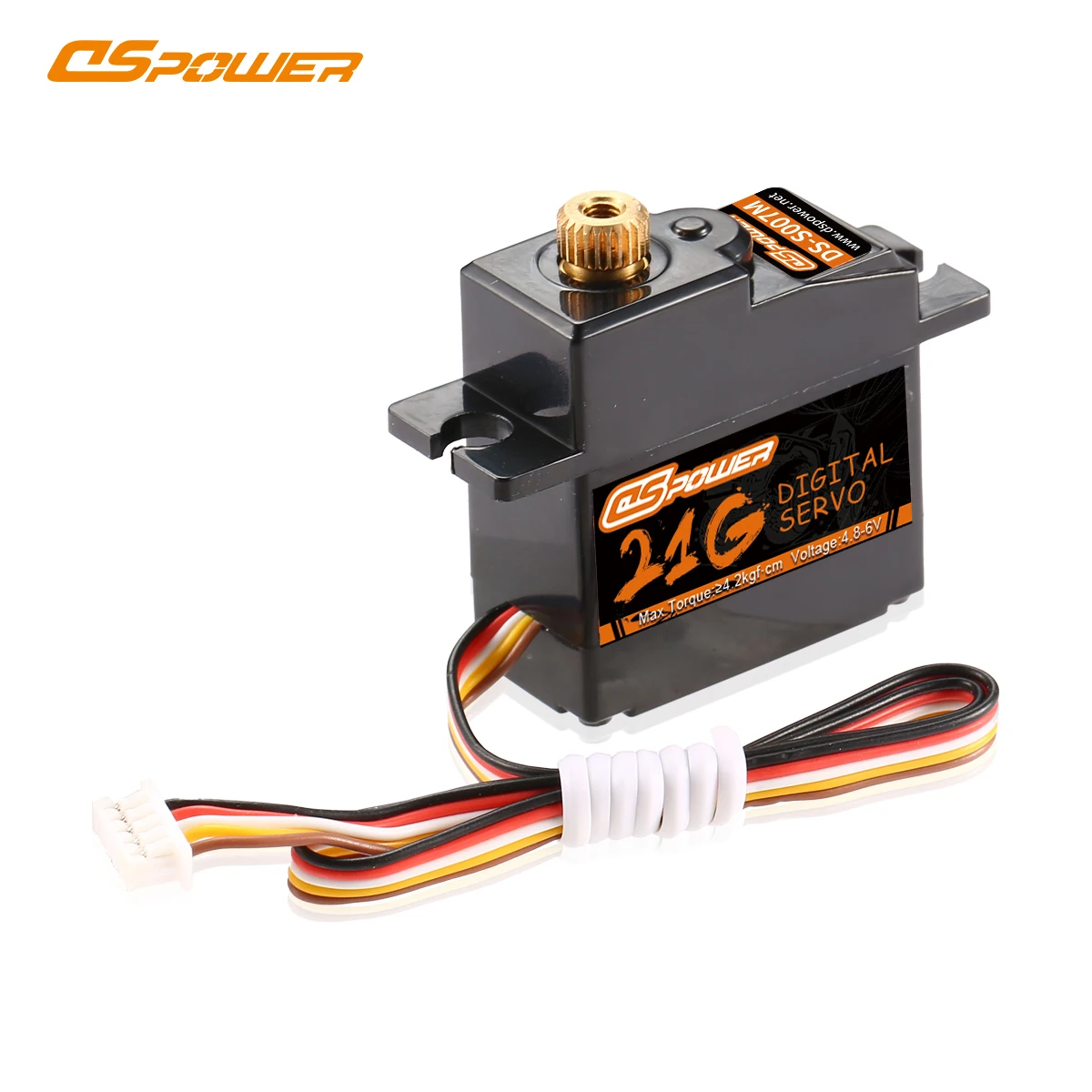

Item name: DSpower S007/S007M

Quantity: 1pcs

Operating Voltage : 4.8~6.0V DC

Max. Torque : 4.8V≥3.80kgf·cm ; 6.0V≥4.20kgf·cm

No Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0.12sec/60°

Stall Current:4.8V≦1500mA;6.0V≦1800mA

Consumption Current* (No Load):4.8V ≦200mA ;6.0V≦210mA

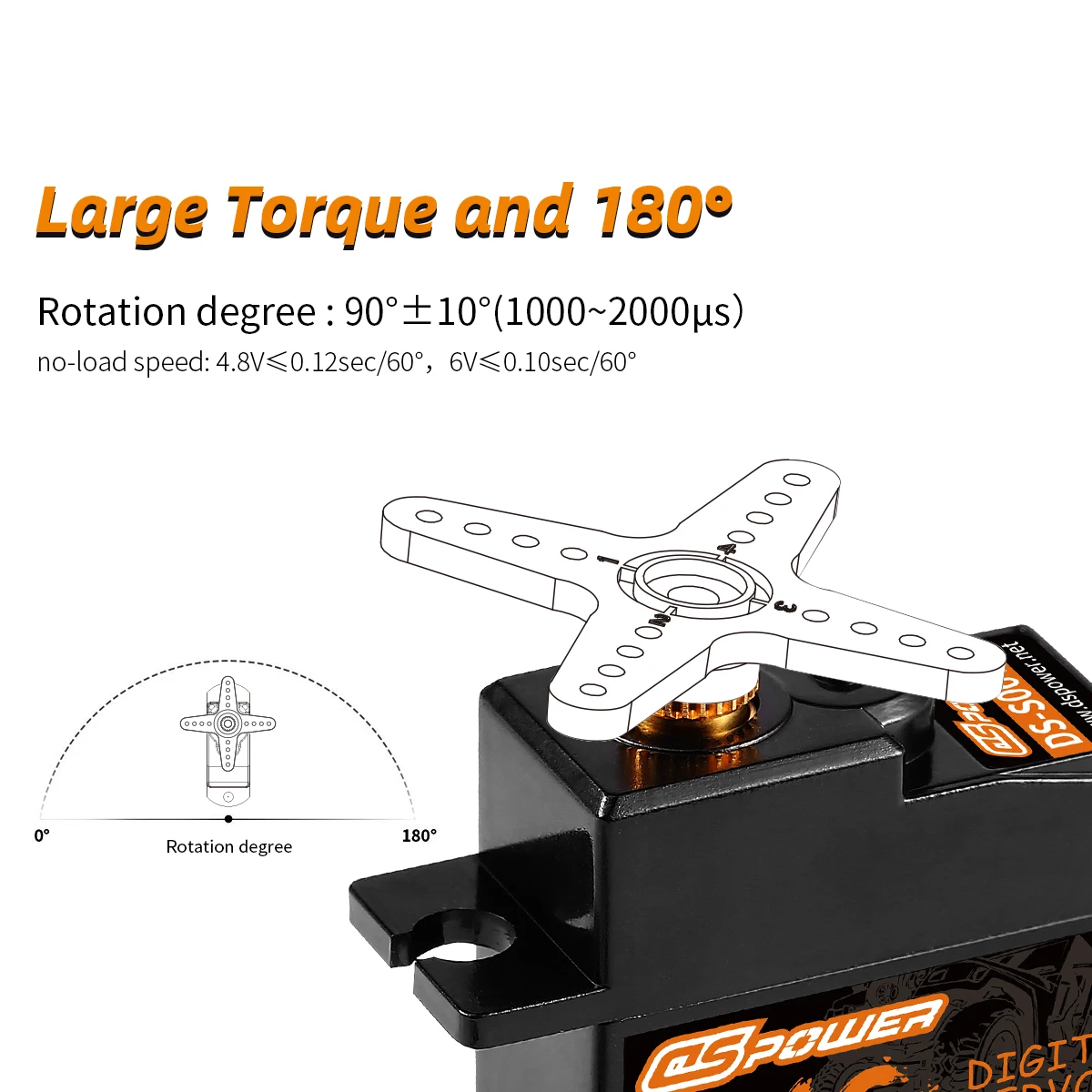

Max. Operating Travel Angle:180°±10°(1000~2000μs)

Dead Band Width: ≤ 1us

Mechanical Limit Angle: 360°

Communication Interface: PWM

Motor Type: Core motor

Case Material: ABS

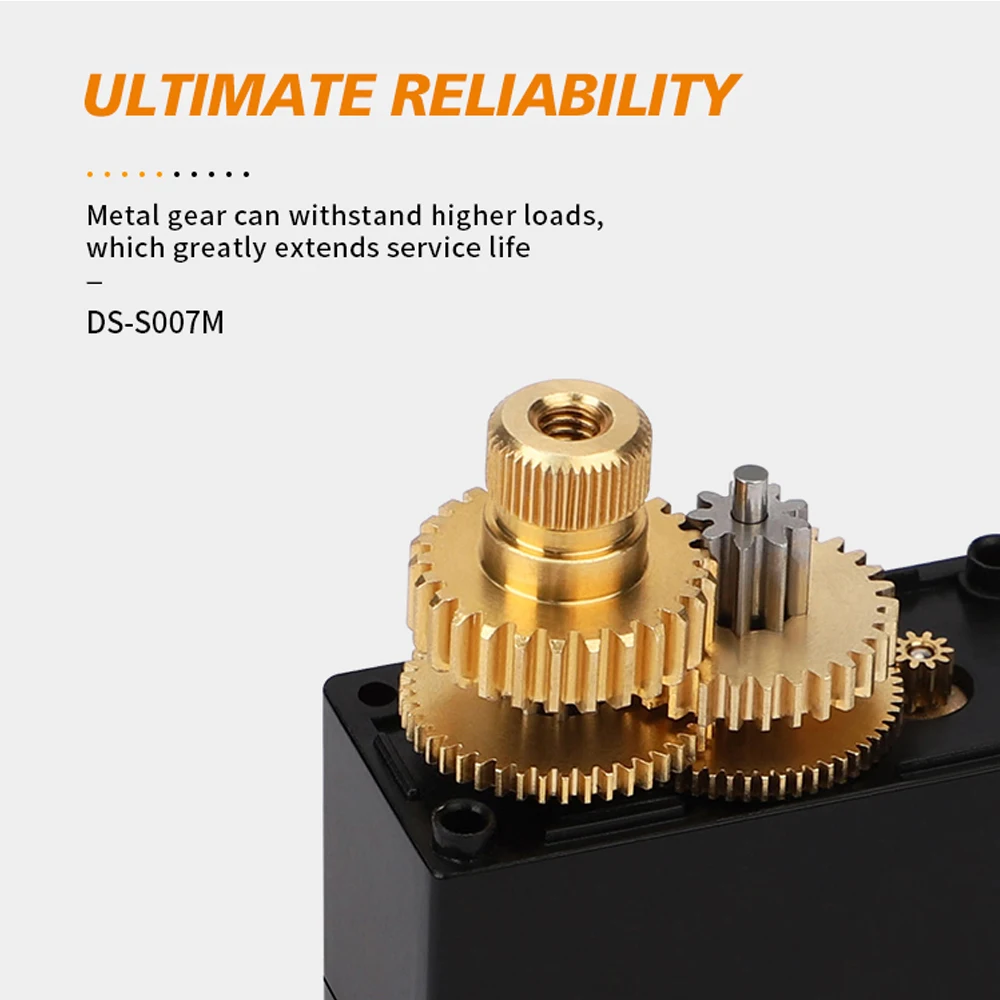

Gear Set Material : Plastic/Copper gear

Weight: 17g/21 g

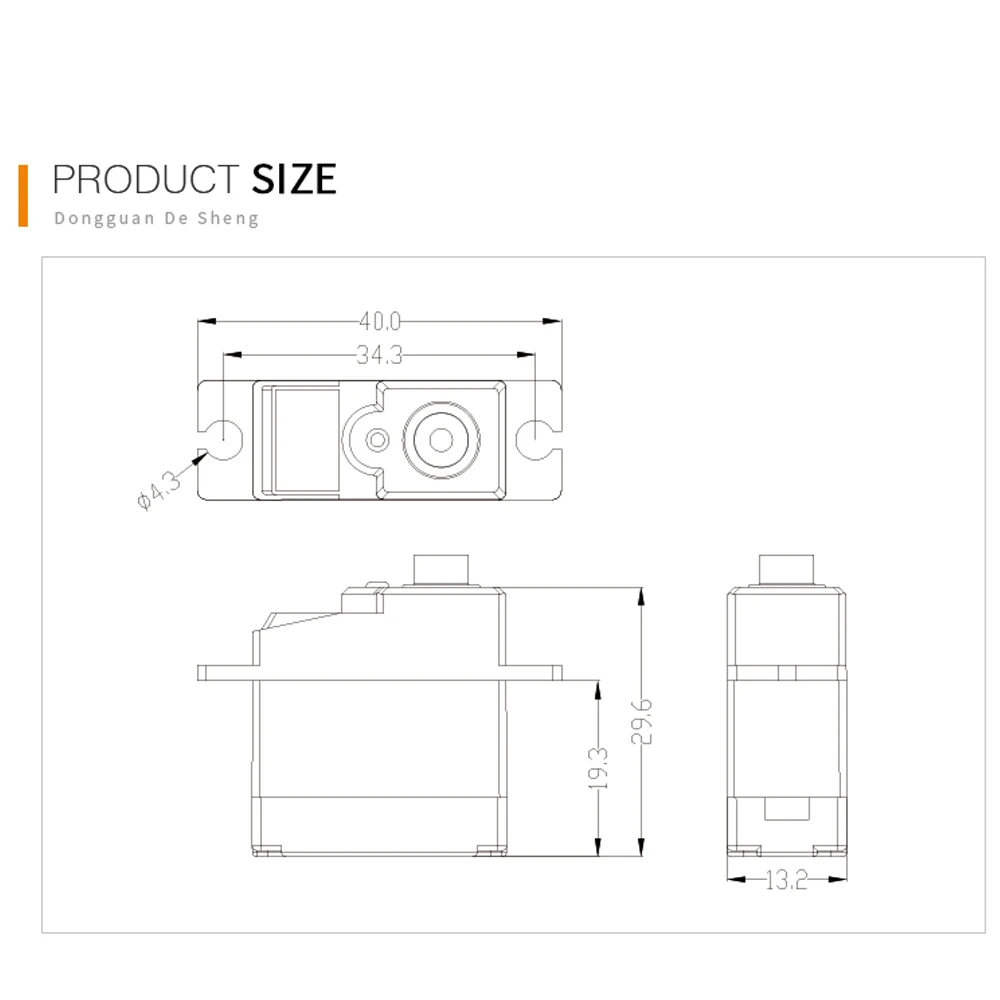

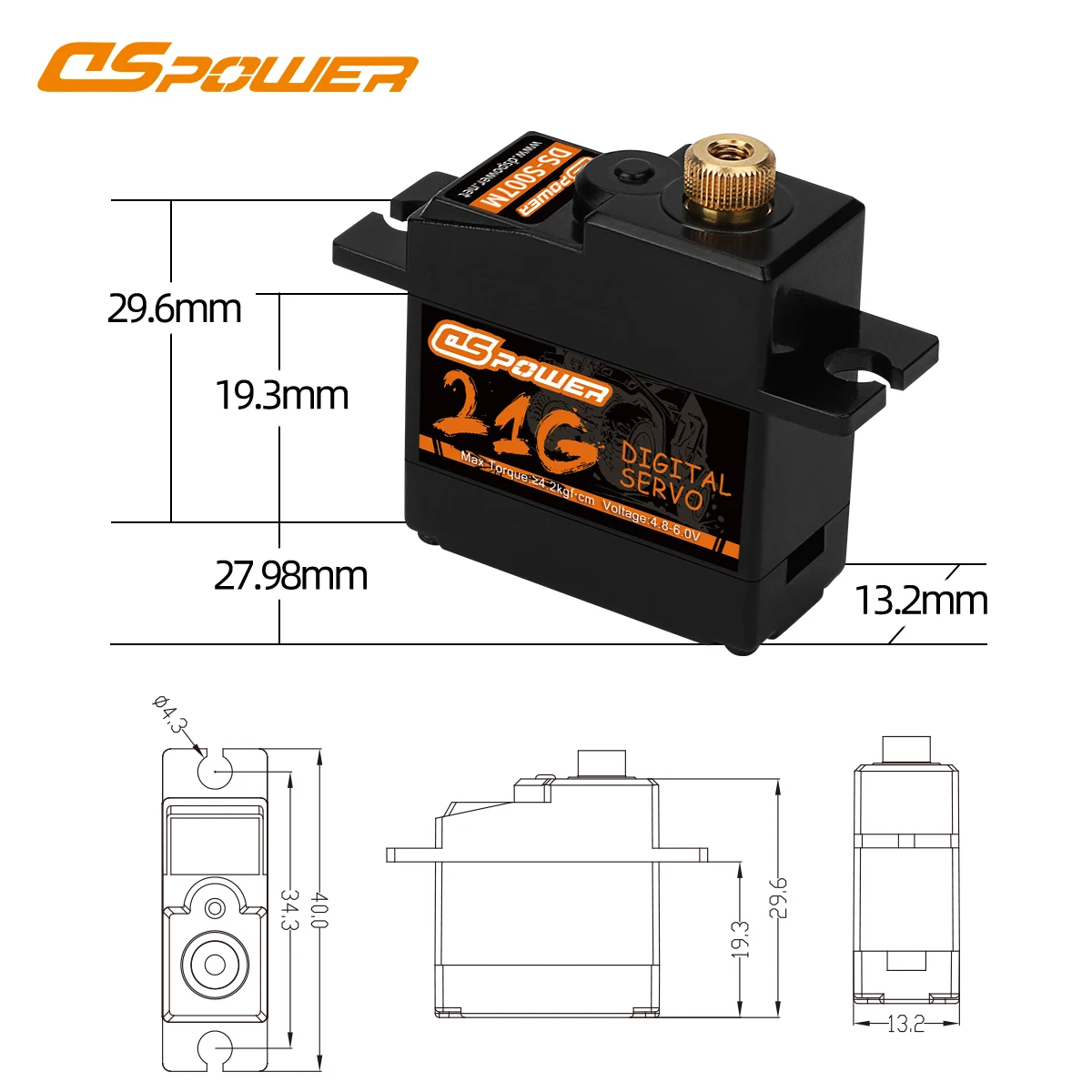

Size: 29.6 × 13.2 × 40mm

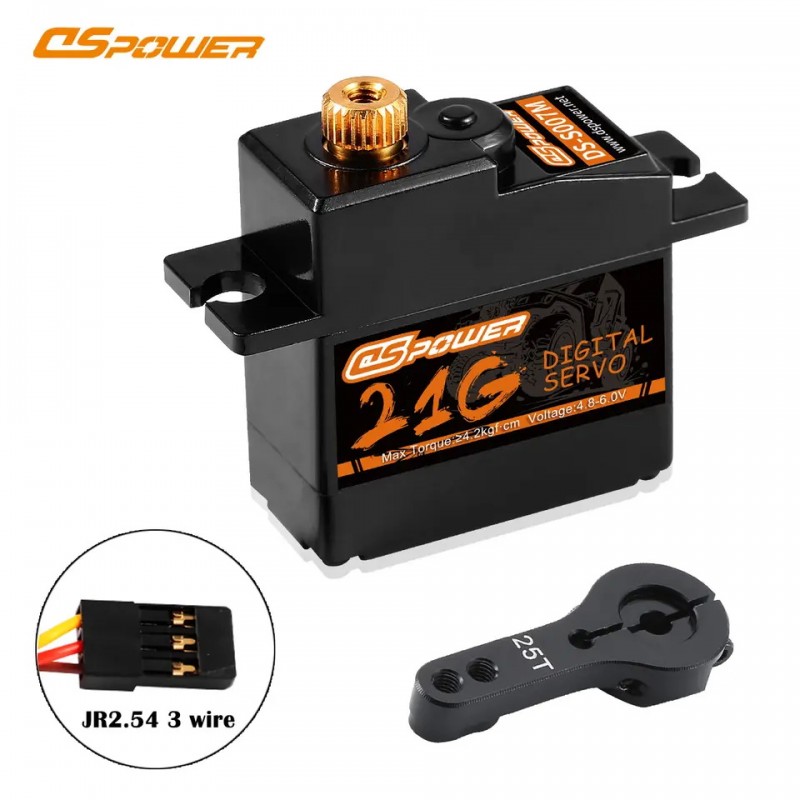

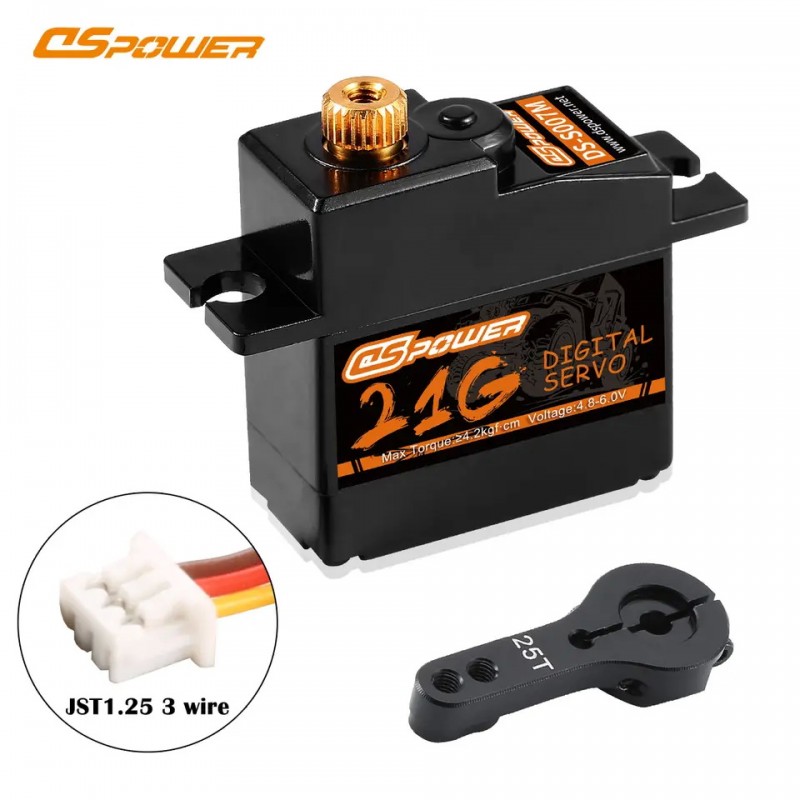

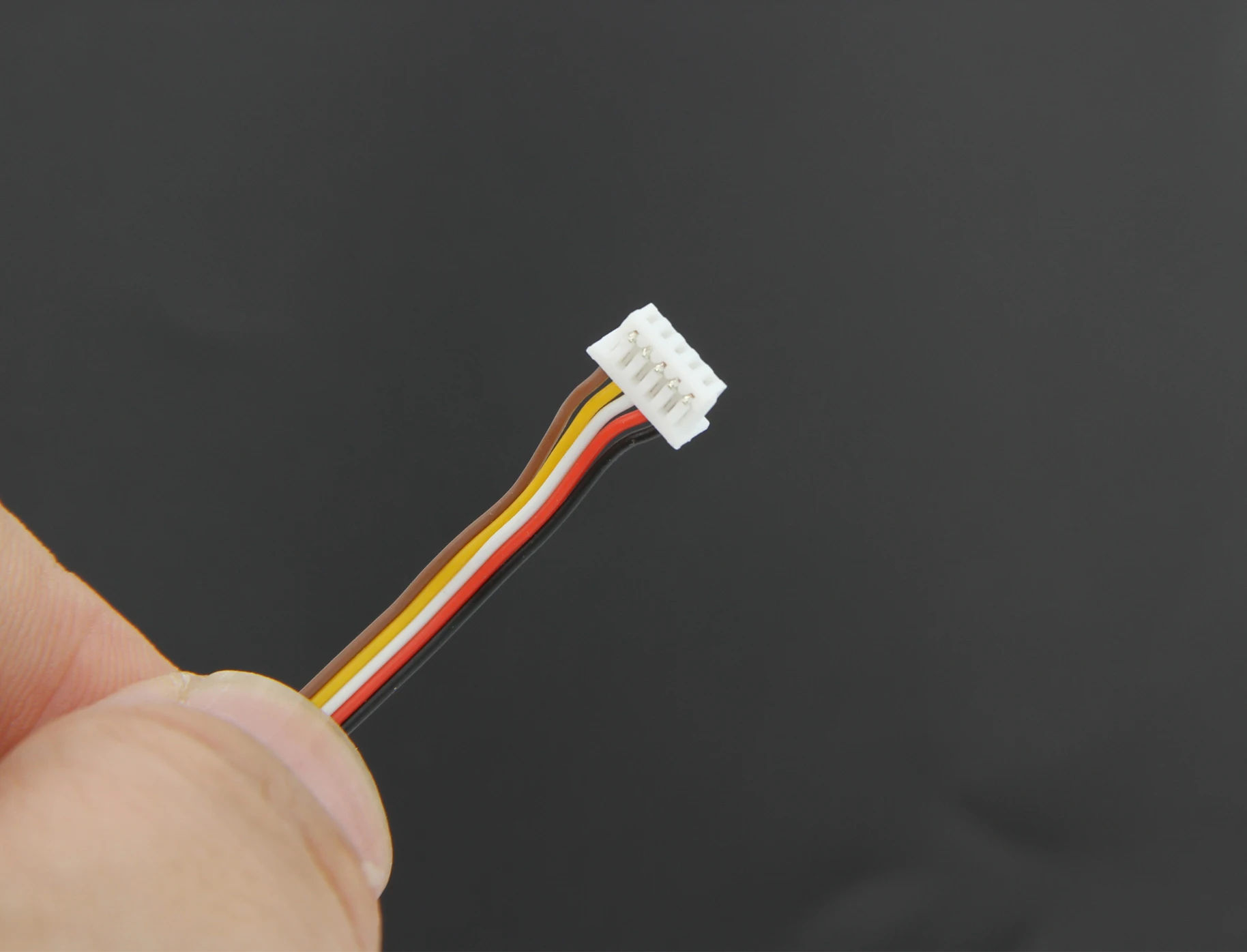

Length of Connector cable: JST1.25 3 wire/JST1.5 5wire/JR2.54 3wire 250±5mm (exposed without plug)

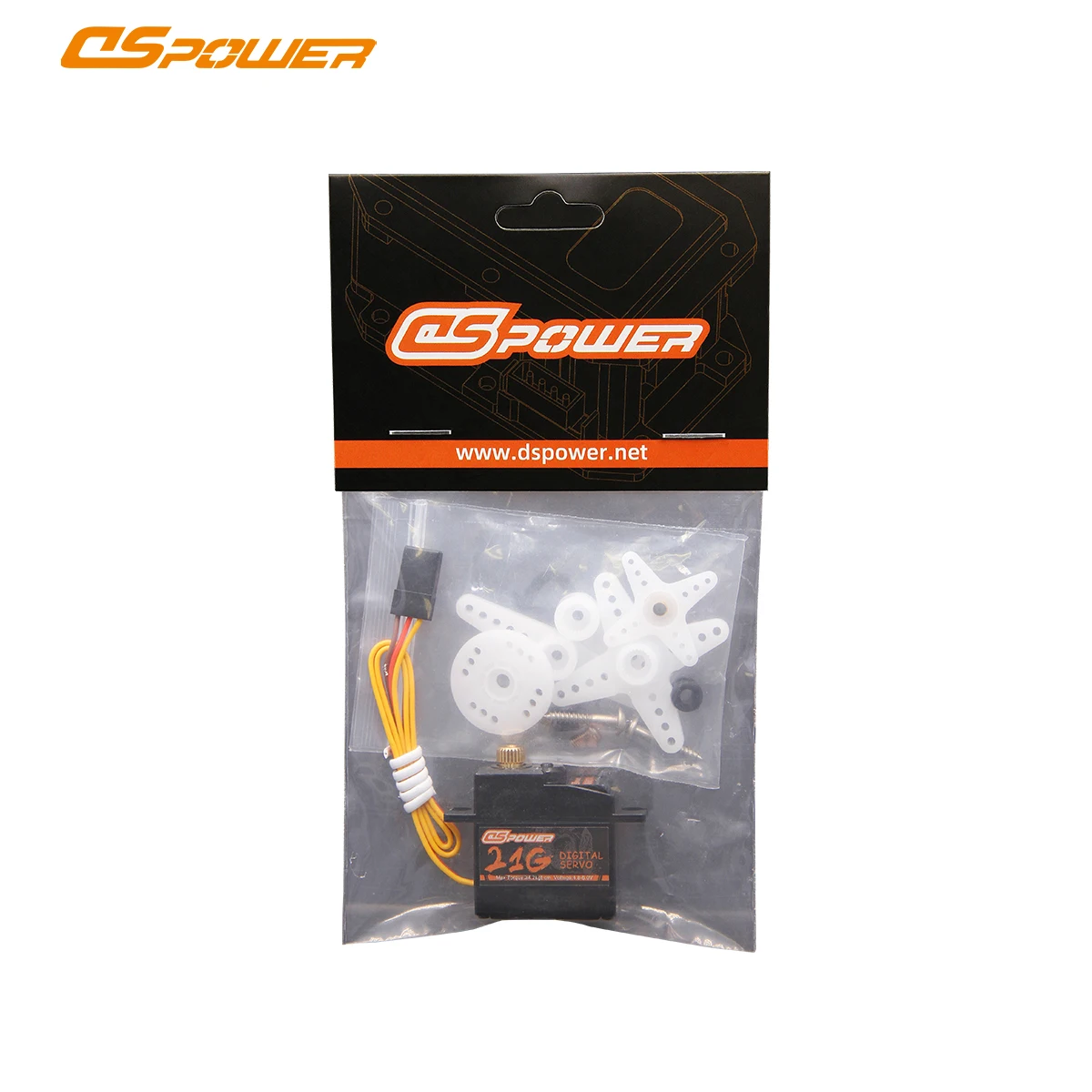

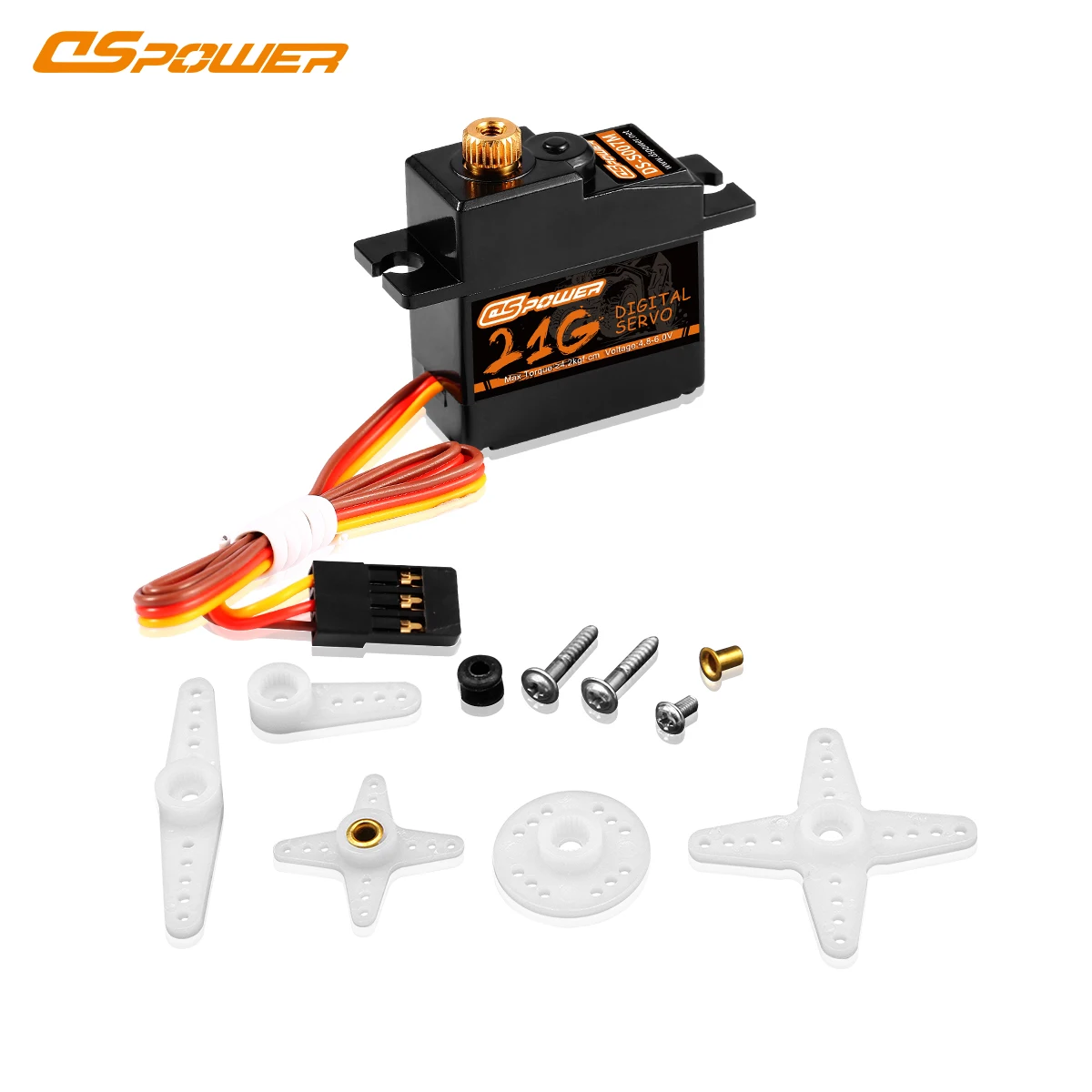

Package included:

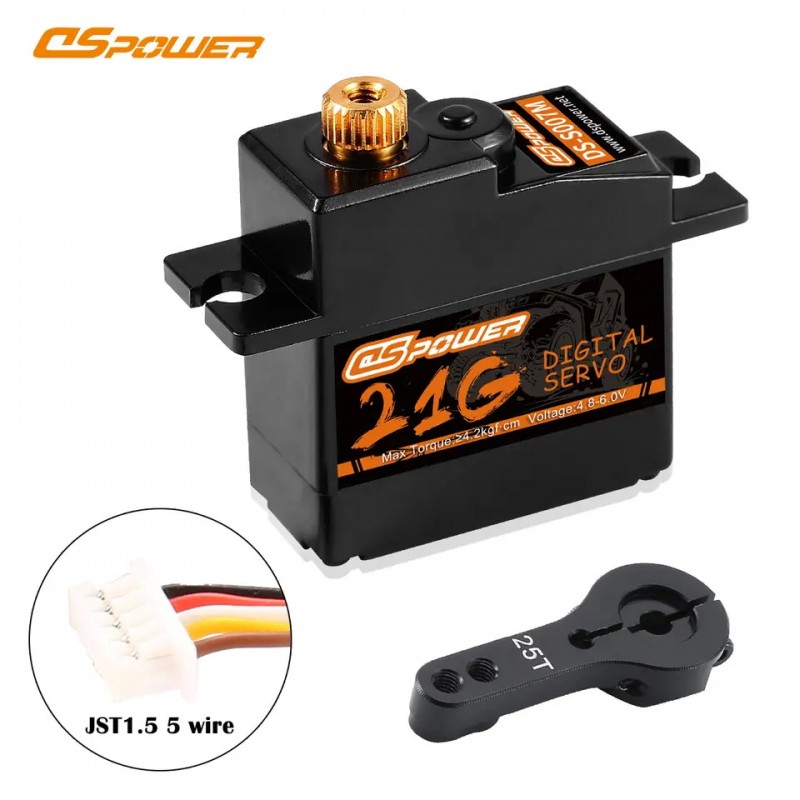

1 * 17G Plastic/21G Copper Gear Digital Servo
1 * Servo Arm Accessories

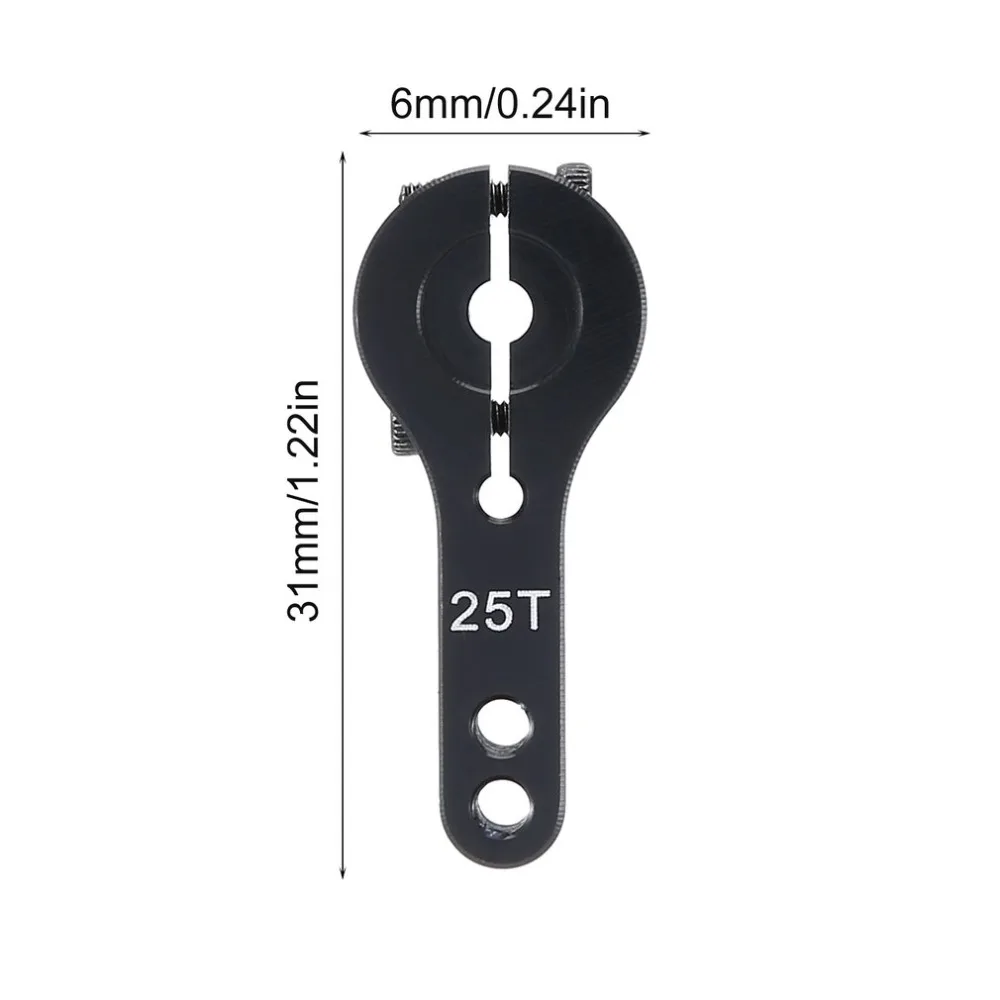

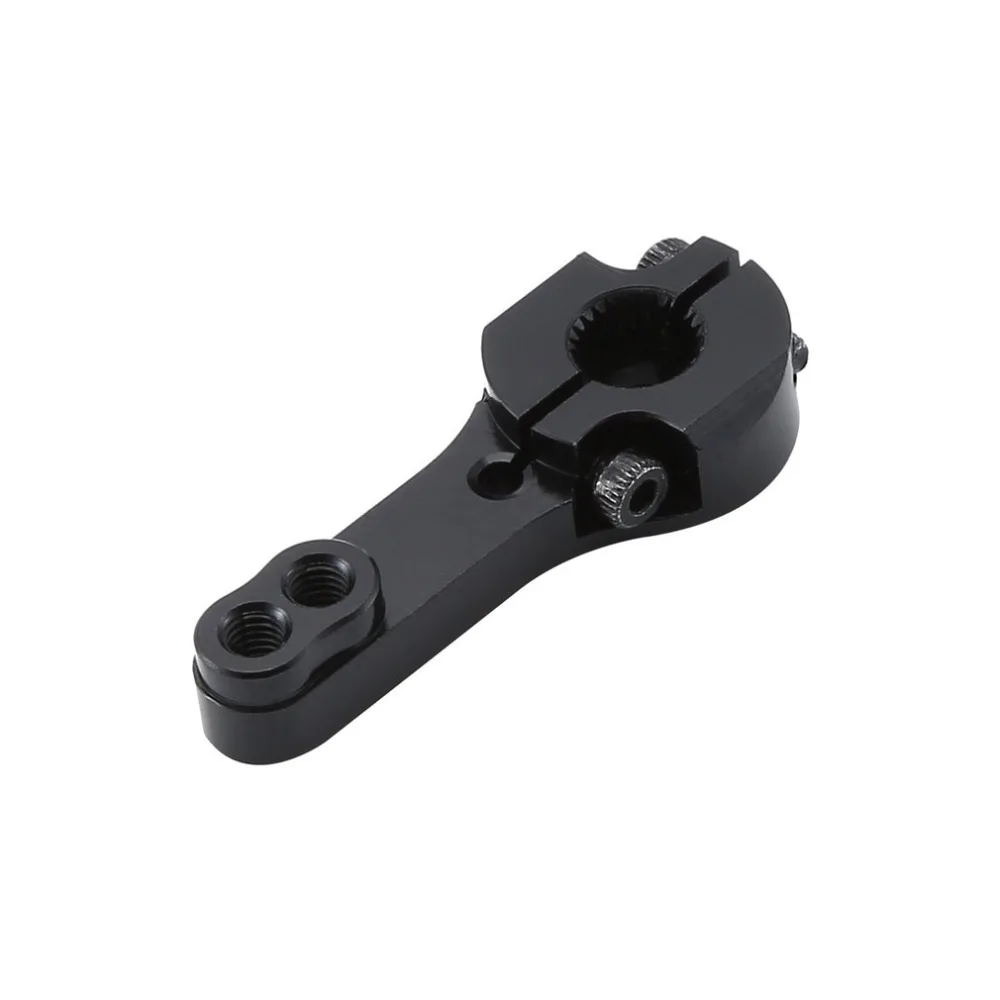

1 * 25T Metal Servo Arm
