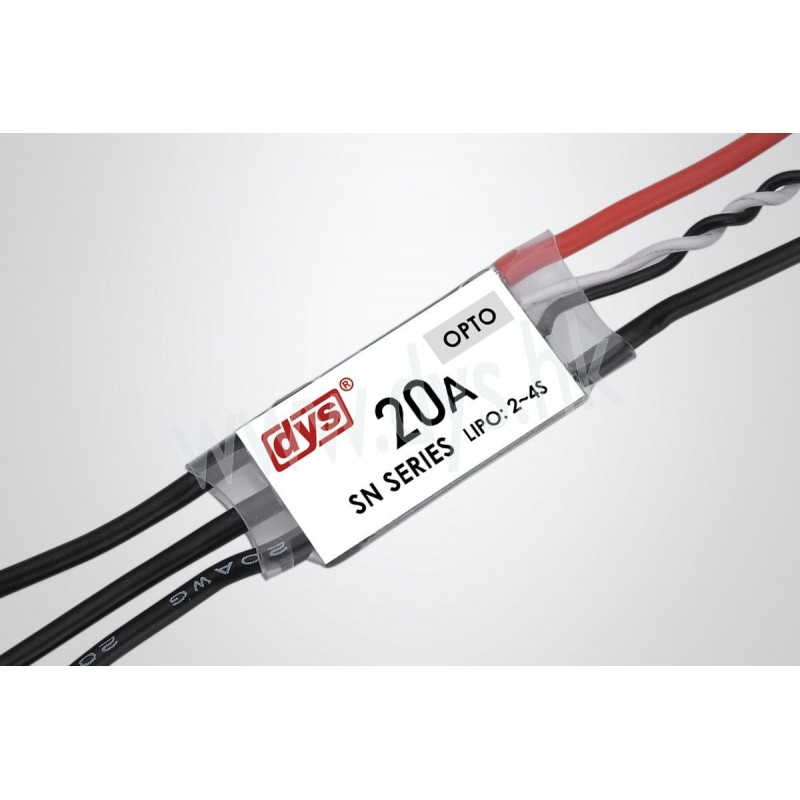

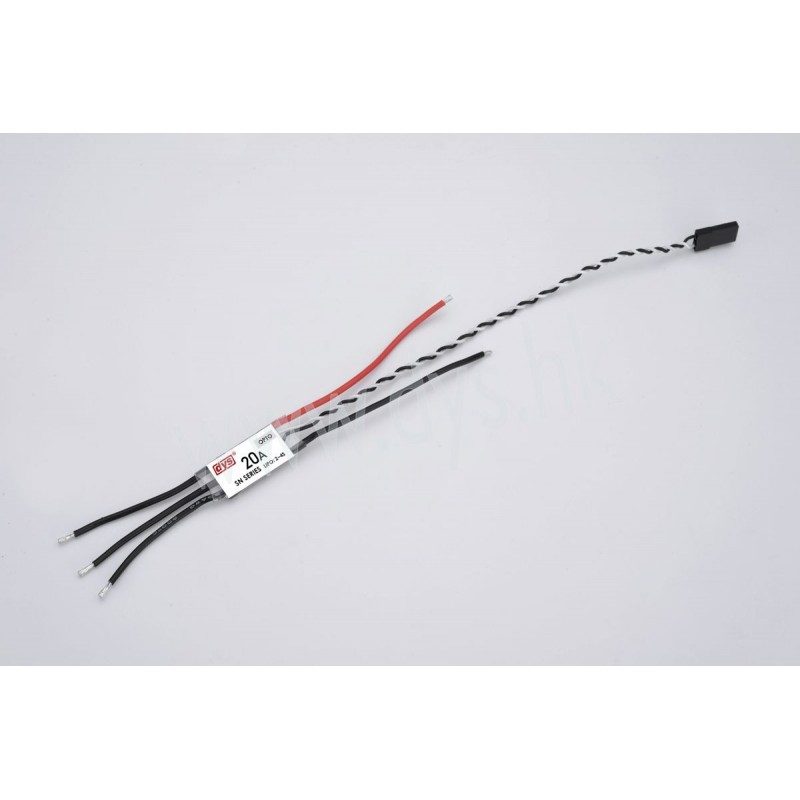

Model: mini 20A ESC
Categories: Speed controller

Specification:

 ◆Signal frequency：20-500Hz

 ◆Outout PWM frequency：18KHz

 ◆Application： Compatible with SimonK & BLHeli

Feature：

◆ Specially for Multi-copter, throttle respond fast;

◆ Suit for throttle, which can compatible well with motor;

◆ Throttle signal is twisted pair cable, reduce the crosstalk while the signal transfer by the copper wire and flight more stable;

◆ The maximum refresh frequency up to 500Hz throttle signal, compatible with all flight controls;

◆ Use new process ultra-low resistance MOSFET with miniaturization, and all flashes are N MOS with high withstanding current;

◆ Minaturization design, SN16/20A with high performance capacitor fliter on the board, weight reduce to 2g, also already thicken the PCB copper specially and low heat for small aircraft.

• Input voltage: 2-4s Lipo
• BEC: OPTO
• Size(mm)L*W*H: 23*12*4.5
• Type: Compatible with SimonK & BLHeli
• Weight:7.6g
