Description:

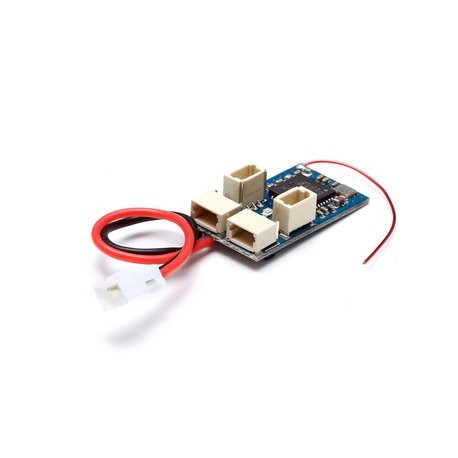

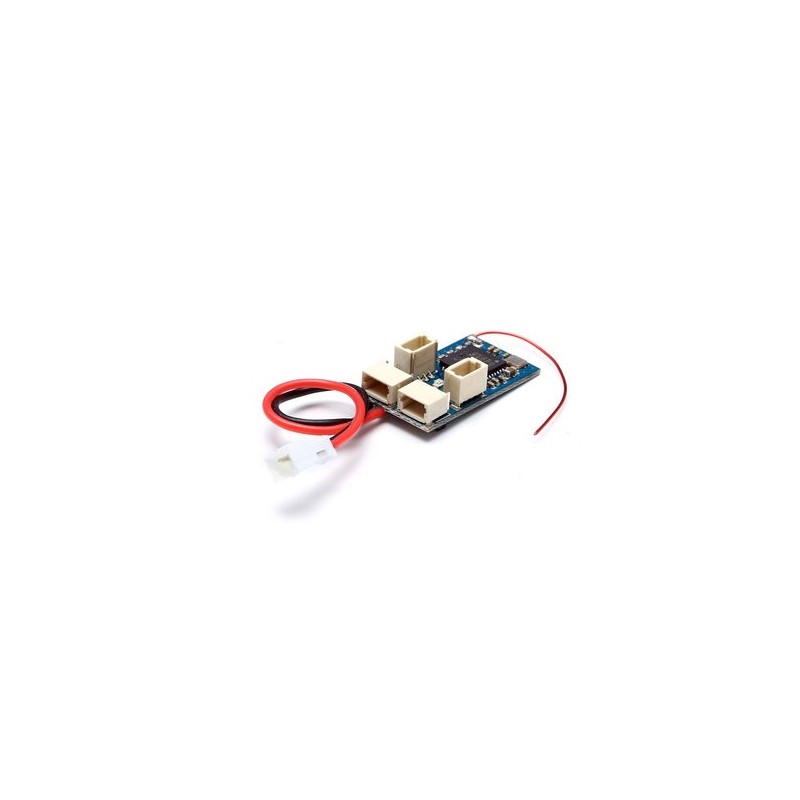

Item Name: Receiver
Channel: 4
Input Voltage: 3V - 5.5V
Weight: 1.4g
Dimension: 21.3x11.9x5.8mm

Features:
Compatible with DSM2/DSMX transmitter.
Bulit-in 2A brushed ESC,supported external brushless ESC, no need to program.
The receiver signal can stay stable even if the voltage is 2.5V.
Improve signal interruption problem when micro receiver using a conventional 1S brushless motor.

Note:
No suitable for conventional wide voltage servos.
Reverse power supply will damage the receiver.
When use 1S battery, please use low voltage micro servo.

Package Included:
1x receiver

Bind:

1. Set Tx throttle off 2. Power on Rx 3. Wait for LED 1 sec flash to change to rapid flashing 4. Power on Tx while holding down the 'Trainer' switch 5. Release 'Trainer' switch when all Tx indicators flash 6. Expect Rx LED to go out then briefly flash before come on steady 7. Expect Tx indication steady GREEN#1 8. Done AFTER STARTUP: TX OFF WHILE RX ON 1. Expect Rx LED to flash 2. Power on
