SURPASS-HOBBY C24 Series V2 C4240/C4250/C4260 14 Pole Hi-torque Outrunner Brushless Motor
Διαθέσιμο
Specifications:
Brand: SURPASS-HOBBY
Model: C4240-V2/C4250-V2/C4260-V2
Model: | C4240-V2 | Item Number: | SP-242500-01 | |||||||
KV | Max Watts(W) | Voltage Range(V) | Max Current(A) | Rotor Poles | No Load Current(A) | Resistance(Ω) | Motor Size(mm) | Stator Size(mm) | Weight(g) | Propeller(Inch) |
850 | 640 | 12~28 | 45 | 14 | 1.0 | 0.028 | ∅42x37.5 | ∅35x10 | 121 | 12x8/13x6/13x8 |
750 | 650 | 12~28 | 45 | 14 | 1.0 | 0.035 | ∅42x37.5 | ∅35x10 | 121 | 12x8/13x6/14x8 |
Model: | C4250-V2 | Item Number: | SP-242500-01 | |||||||
KV | Max Watts(W) | Voltage Range(V) | Max Current(A) | Rotor Poles | No Load Current(A) | Resistance(Ω) | Motor Size(mm) | Stator Size(mm) | Weight(g) | Propeller(Inch) |
800 | 1250 | 10~20 | 62 | 14 | 2.3 | 0.0212 | ∅42x47.5 | ∅35x20 | 193 | 13x10/17x7/14x10 |
720 | 1120 | 10~20 | 56 | 14 | 1.8 | 0.0298 | ∅42x47.5 | ∅35x20 | 193 | 13x8/14x7/12x10 |
Model: | C4260-V2 | Item Number: | SP-242600-01 | |||||||
KV | Max Watts(W) | Voltage Range(V) | Max Current(A) | Rotor Poles | No Load Current(A) | Resistance(Ω) | Motor Size(mm) | Stator Size(mm) | Weight(g) | Propeller(Inch) |
710 | 1650 | 10~20 | 82 | 14 | 2.7 | 0.0234 | ∅42x57.5 | ∅35x30 | 253 | 13x10/14x10/15x8 |
600 | 1500 | 10~20 | 75 | 14 | 2.1 | 0.0291 | ∅42x57.5 | ∅35x30 | 253 | 15x8/16x8/16x10 |
Features:
14 Pole Hi-torque rotor design, stable output power.
Fits all fixed wing aircraft model.
CNC Machined 6061 aluminum front and rear cover.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
High Purity Copper Windings Maximizes Efficiency.
Precision Engineered for Maximum Energy Conversion.

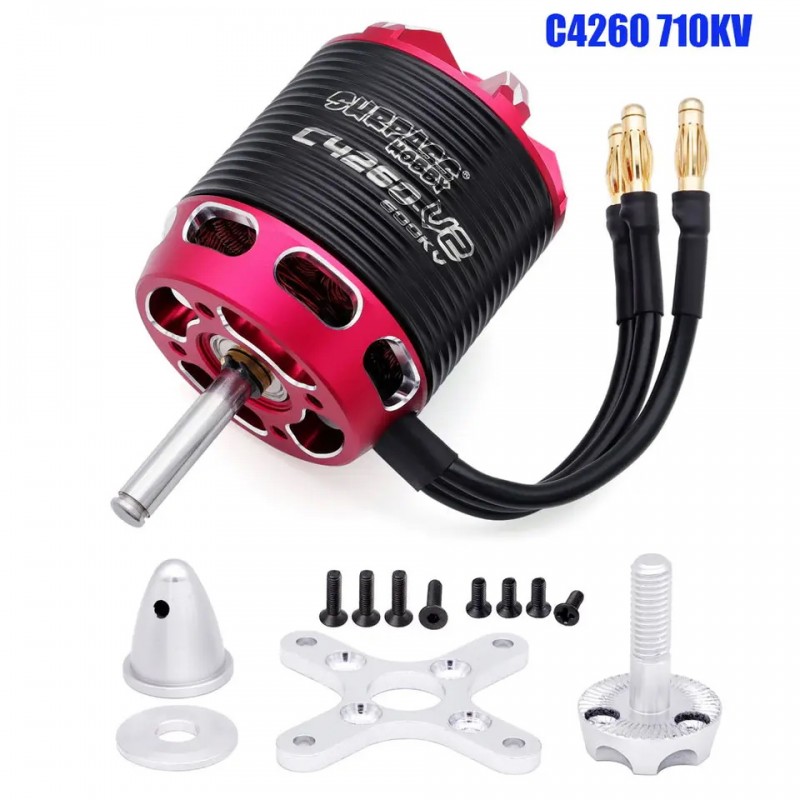

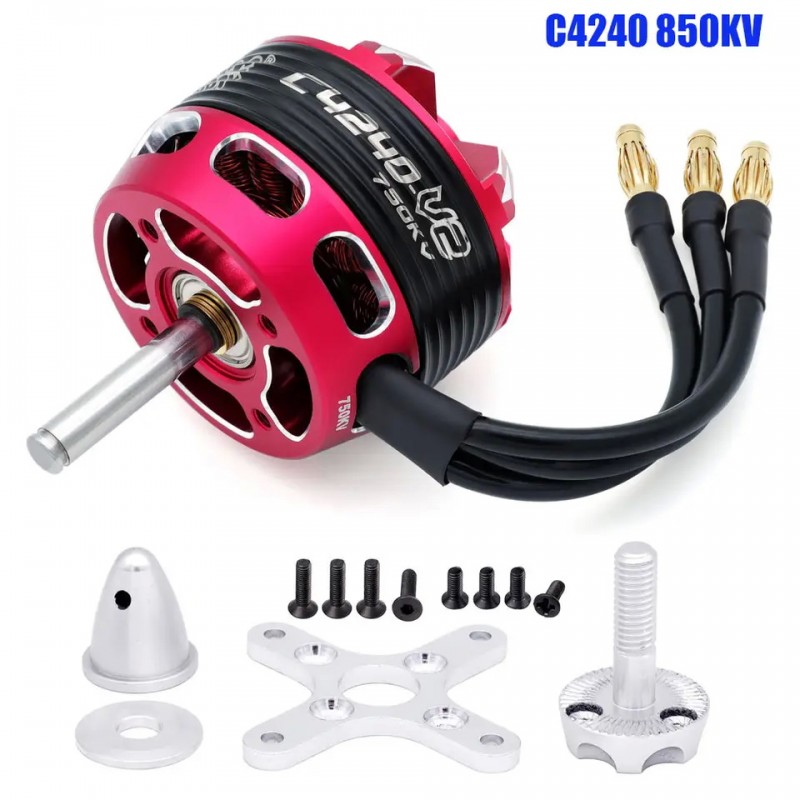

Package Included:
1x SURPASS-HOBBY C4240-V2/C4250-V2/C4260-V2 Brushless Motor
1x Paddle Head
8x Mounting Screws
1x Paddle Base
1x Cross
1x Spacer
