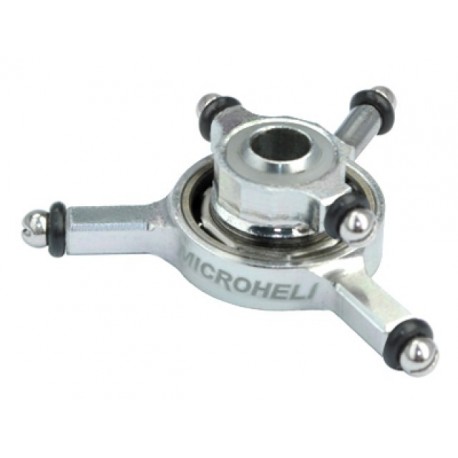

Precision CNC Aluminum Swashplate - T-REX 150 DFC

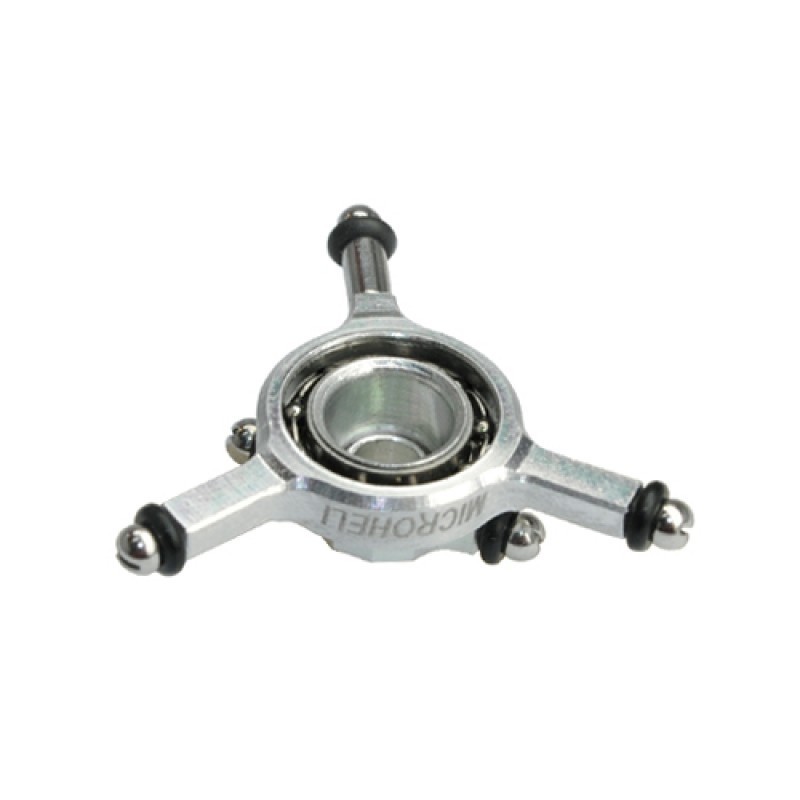

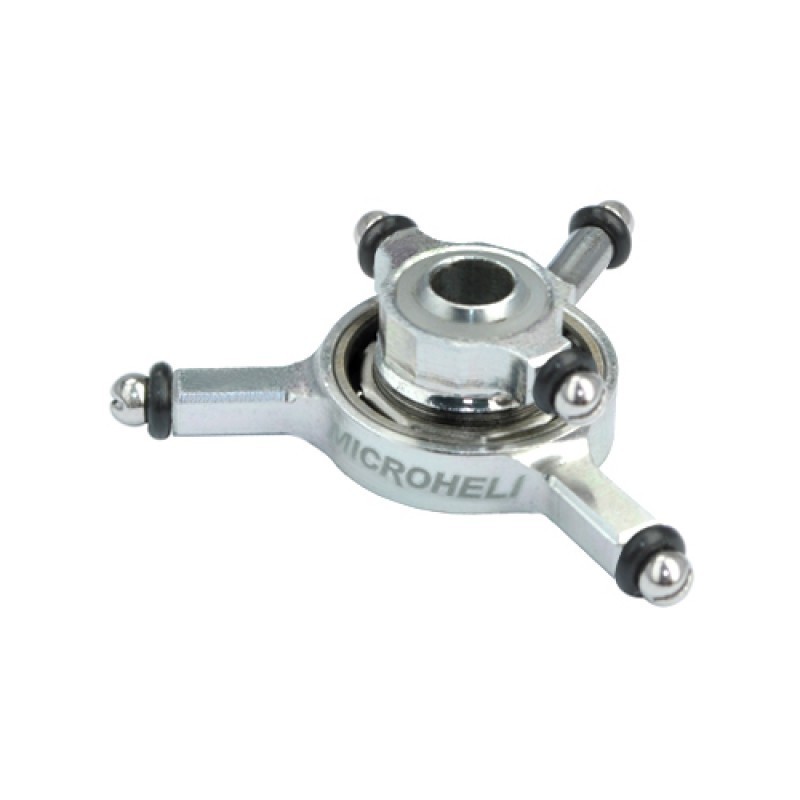

The Swashplate is made of Aluminum 6061-T6 and machined 100% Precision CNC.

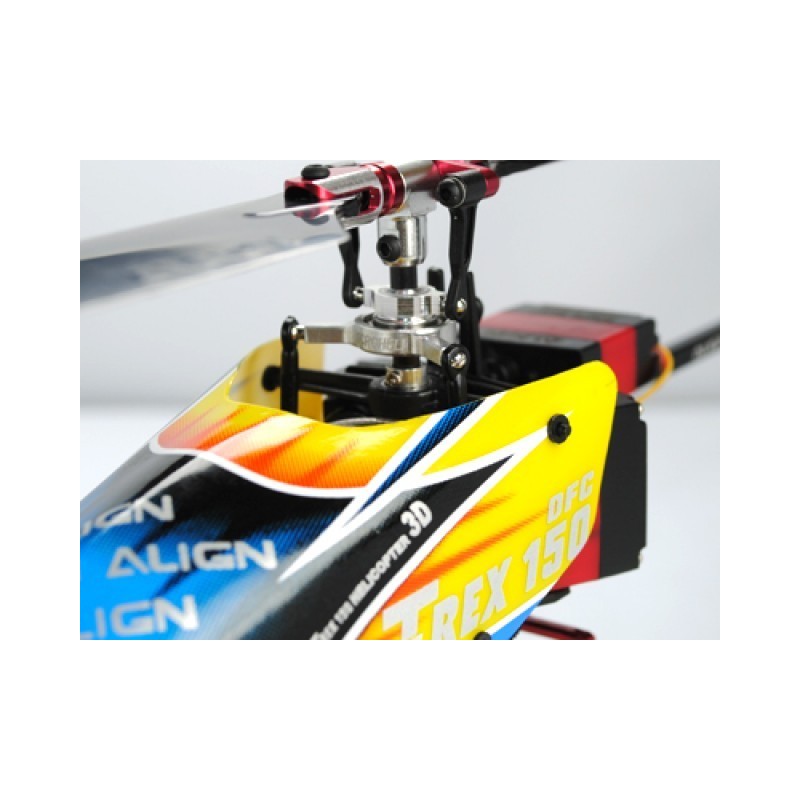

The Precision CNC Aluminum Swashplate is designed to improve stability, durability and overall performance on the ALIGN T-REX 150 DFC helicopter. It provides a direct upgrade for the stock plastic swashplate.

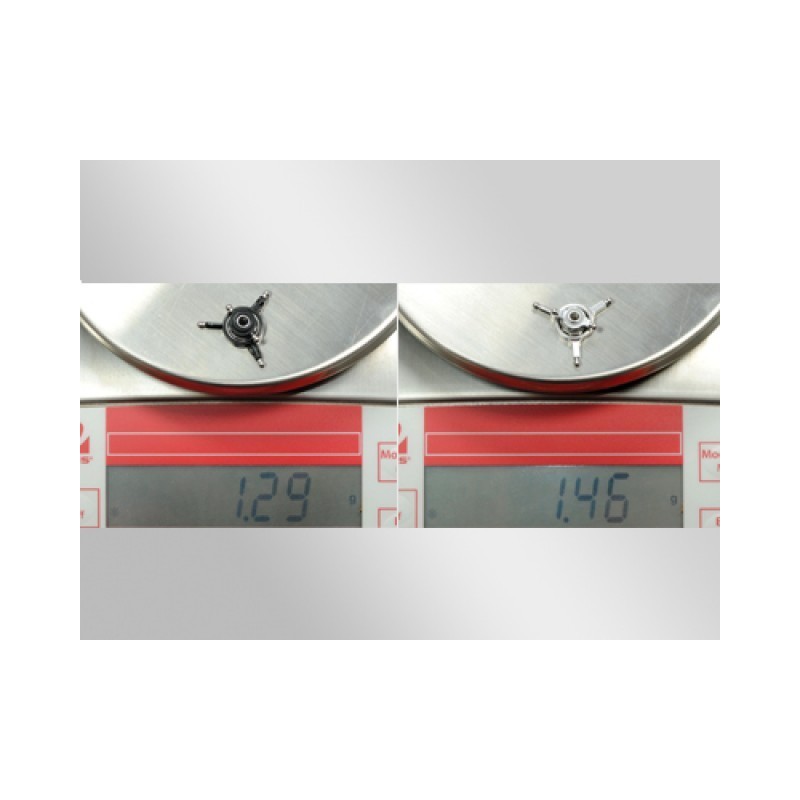

The Precision CNC Aluminum Swashplate is designed using steel ball to prevent wear and tear for long time use. It is thin profile and very light weight 1.46gram (only 0.17gram heavier than the stock plastic swashplate).
Besides, the Precision CNC Aluminum Swashplate is technically re-engineered with larger pitch angle than the stock plastic swashplate to allow the swashplate tilting much more as well as the T-REX 150 DFC helicopter performing more difficult actions during fly.
Moreover, the Precision CNC Aluminum Swashplate is built to be rigid better than the stock and brings the best overall performance and the stylish look. It is now ready to bring your T-REX 150 DFC helicopter to the next level of performance and appearance.

	Includes
	1 x Center Ball MH-TX15012CB
	1 x Center Ball Housing MH-TX15012BH
	1 x Upper Swash MH-TX15012UC
	1 x Lower Swash MH-TX15012LC
	5 x O-Ring 1x3x1mm 103010OR
	4 x Lower Swash Ball 2116M1219BS
	1 x Stainless Steel Ball and Anti-Rotation Pin 2154M1219BPS
	1 x Radial Bearing 6x10x2.5mm

	Specification
	Aluminum 6061-T6
	Steel

	Features
	100% CNC machined Aluminum Swashes and Steel Ball
	Improves stability, durability and overall performance on the T-REX 150 DFC helicopter
	Designed using steel ball to prevent wear and tear
	Re-engineered with larger pitch angle than the stock plastic swashplate
	Built to be rigid better than the stock
	Thin profile, more tilt angle, light weight and stylish Precision CNC Aluminum Swashplate design

	Weight
	1.46gram/set with screws

	Usage
	Direct replacement part for T-REX 150 DFC helicopter

	Requires
	Read and follow carefully the Assembly Instruction
	Loctite (#242 is recommended) is required to apply to all mechanical screws for safety during fly
	Tools

	Instruction
	Instruction included
