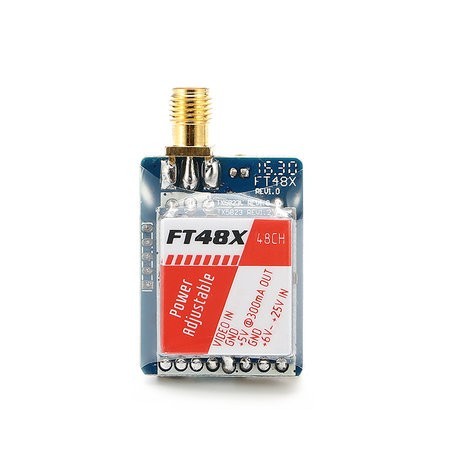

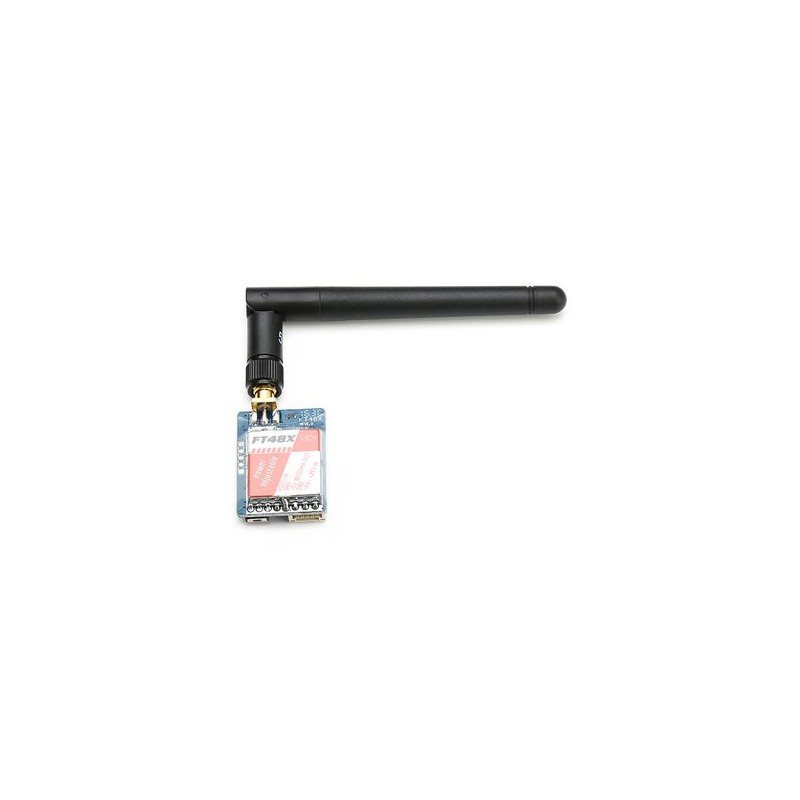

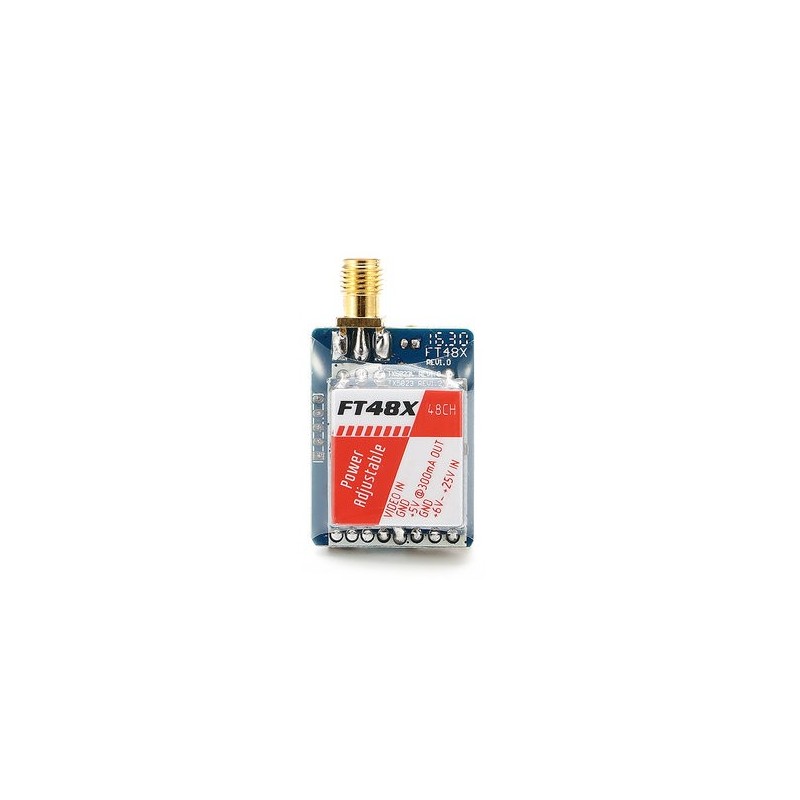

FT48X 5.8G 48CH 0.25/25/200/600mW Adjustable Video Transmitter FPV Racer VTX Raceband

Αναφορά (SKU): 462699

Διαθέσιμο

Descripiton: User Manual

1	Transmitting Frequency:	ISM 5.35GHz-5.95GHz 48 CH
2	Operating Voltage :	+6.5V~+25.0V
3	Supply current :	250mA±20mA @+12V @600mW
4	Video Input Level:	1V±0.2Vp-p/75Ω
5	Audio Input Level:	0.5~2.0Vp-p/10KΩ
6	TV System:	PAL/NTSC/SECAM (AUTO)
7	Audio Carrier Frequency:	6.5MHz
8	RF Output Power:	0.25mW(-6dBm±0.5dBm) 25mW(14dBm±0.5dBm) 200mW(23dBm±0.5dBm) 600mW(28dBm±0.5dBm)
9	Antenna Connector:	SMA Connector
10	Weight:	9g
11	Dimensions (L x W x H):	31x22x8mm
12	Operating Temperature:	-10℃~+85 ℃

Frequency:

Features:

48 Channel,with Raceband

RF power can be adjusted: 25/200/600mW RF Power output

Large input voltage range ;

Not affect by 2.4GHz R/C Radios ;

Integrally molded case,Mini size, Power indicator, easy to carry ;

LED display channel; LED display RF Power;

Key mode control channel,group and RF Power Adjusted;

5V output with 300mA automatic recovery fuse and LC filter!

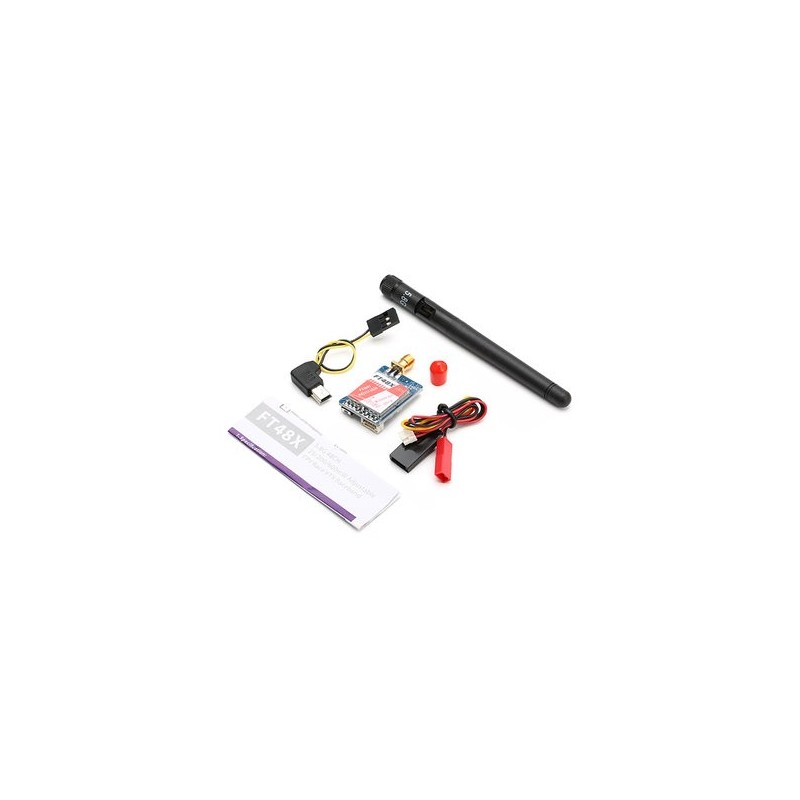

Package Included:
1 x Transmitter
