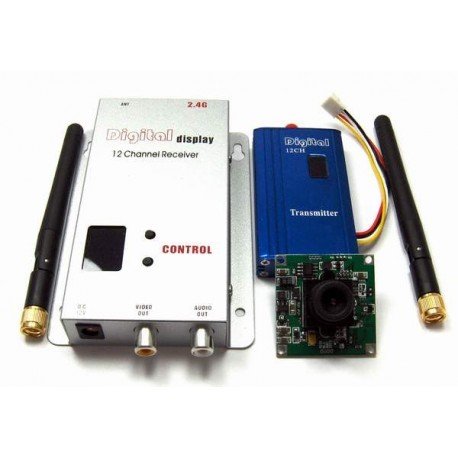

12 Channel Tx/Rx video system with CCD camera. The camera uses a quality glass lensed SONY CCD camera system & a powerful 1000mW tx.
Unlike other generic systems, we have produced a wiring loom and included it with the camera so that the Tx and camera will be compatible and on the same voltage. If you buy your camera and Tx seperately the plug polarity and voltages may be very different.
Included. 1 x SONY CCD 1/3inch Camera 1 x 2.4GHz 12 channel Video Transmitter (1000mW)
1 x 2.4GHz 12 channel Video Receiver
Camera spec.
CCD sensor type:1/3 color SONY CCD Pixel; NTSC: 510(H)*492(V) PAL: 500(H)*582(V) (Included) Scanning system: Interlaced scanning Synchronization: System:Inter Horizontal resolution: 420TV line Minimum Illumination 0.01LUX/F1.2 DSP+CCD: CXD3142R+405AK S/N Ratio: 48dB Gamma Modification: 0.45 White balance: Auto Auto backlight compensation: Auto Lens: 3.6MM Audio: No Input voltage: 9~12.6V Electric current 80MA Electronic Shutter: 1/50 (60) ~ 1/100,000s Video output: 1.0VP-P composite video Operation Temp.: -20~50 Size: 38*38mm Flight time: Approx 60min/100mah 3S
